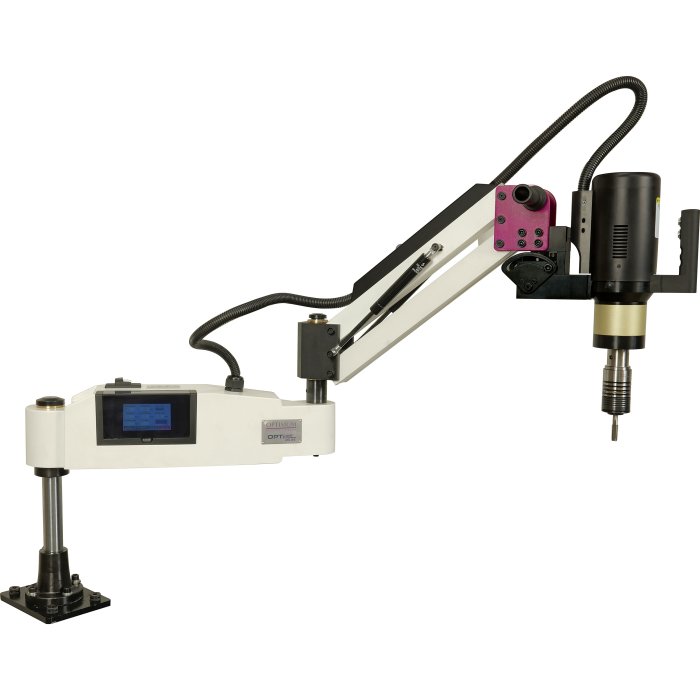

Electric Tapping Arm - HMT-24
M6 - M24 Capacity
1.2kW / 240V Servo Motor, 0–200rpm Variable Speed
T0001
1 of 8

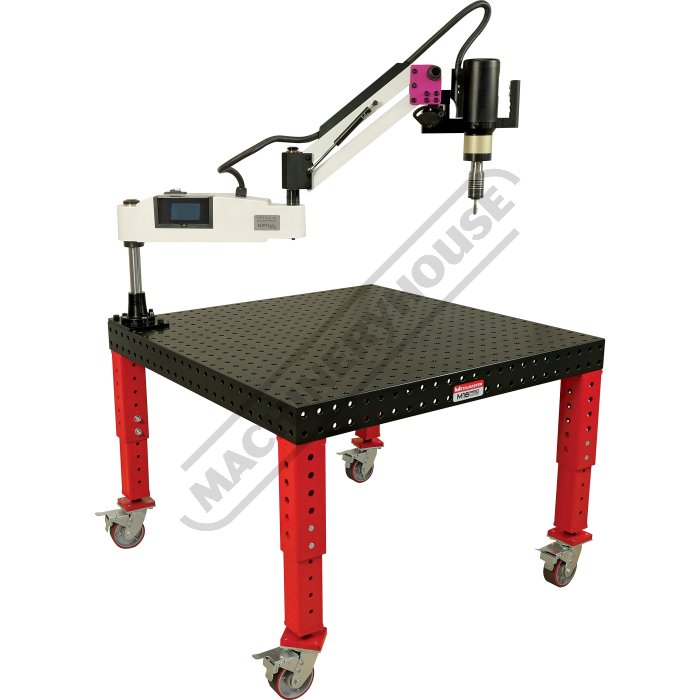

Shown on Welding Table Sold Sperately
2 of 8

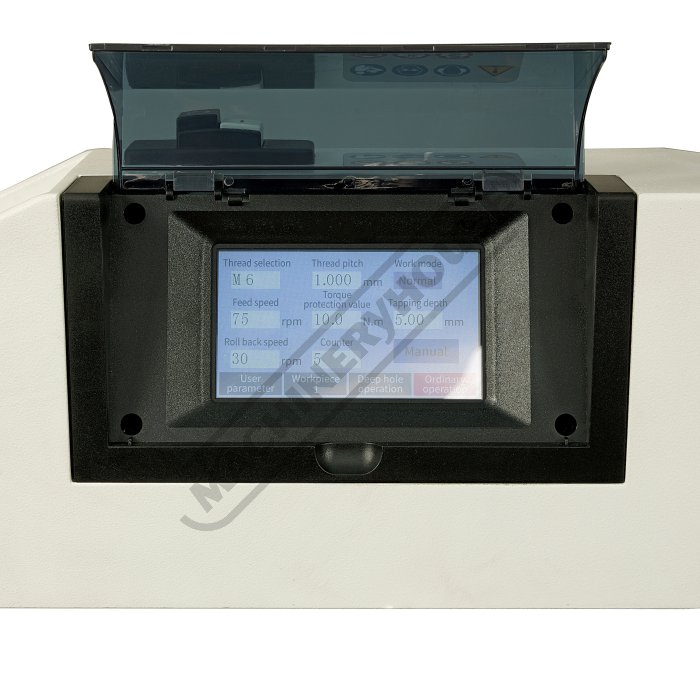

Control Panel
3 of 8

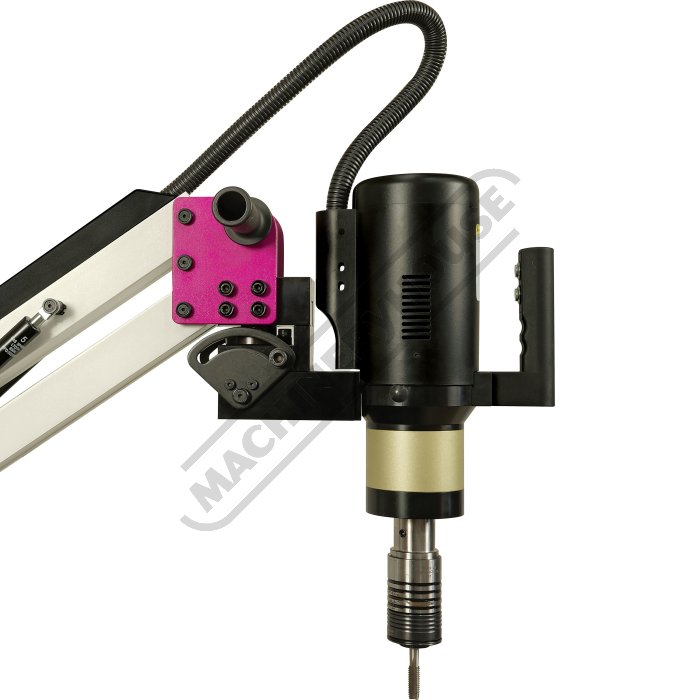

Motor Head
4 of 8

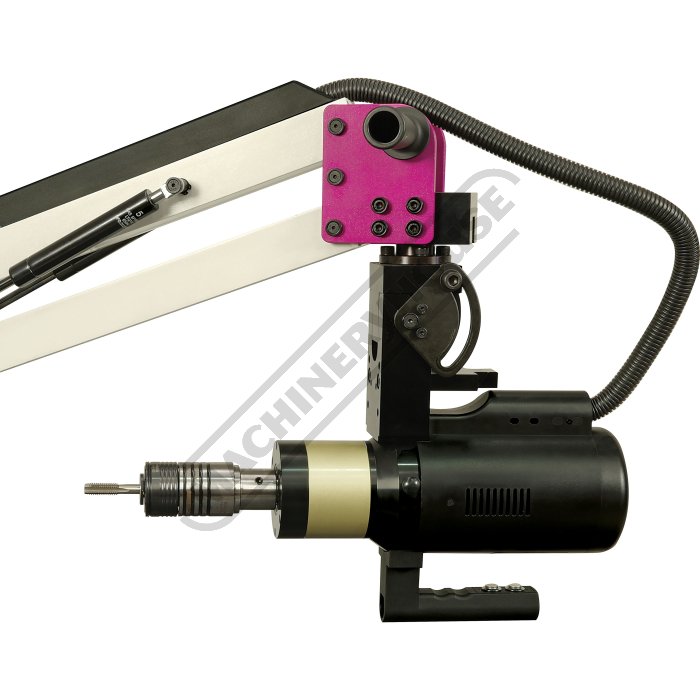

90 Degree Swivel Tool Head
5 of 8

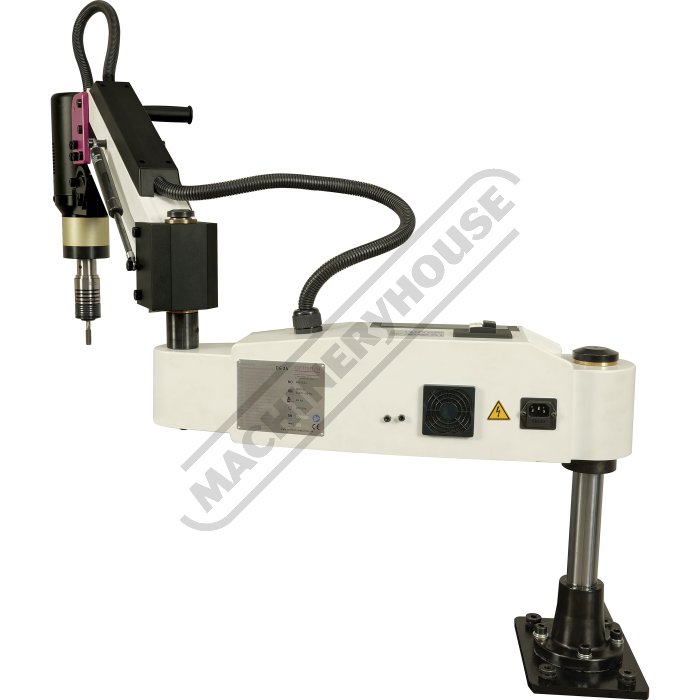

Back View
6 of 8

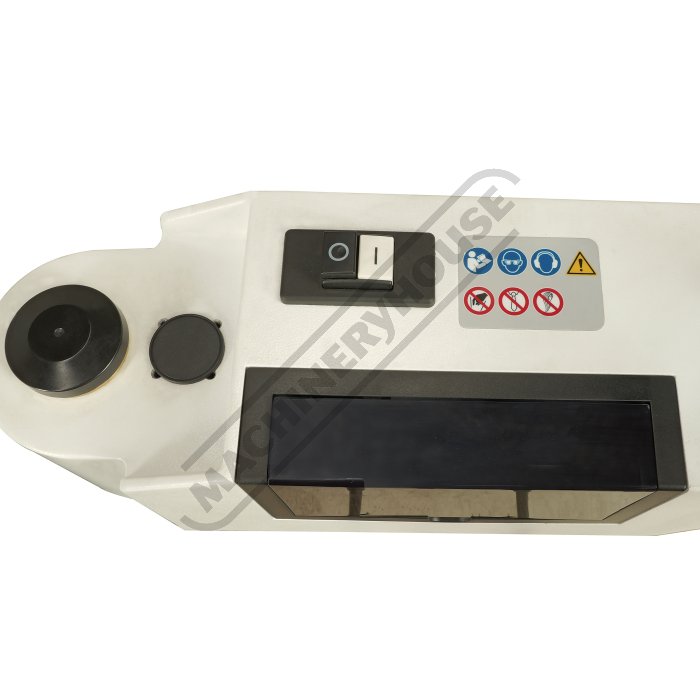

Power Switches
7 of 8

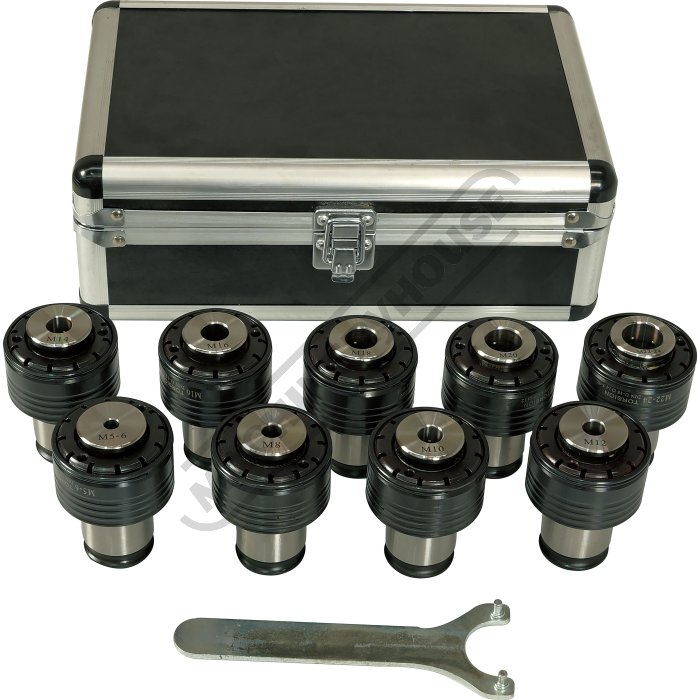

Safety Torque Tap Collets
8 of 8
Discontinued
Order Code: T0001
240V / 10A
1 Year Warranty
1 Year Warranty
Description
Electric Tapping Arm - HMT-24
M6 - M24 Capacity
1.2kW / 240V Servo Motor, 0–200rpm Variable Speed
Overview
The HMT-24 Electric Tapping Arm provides fast, accurate and effortless thread tapping for a wide range of metalworking applications. Powered by a 1.2kW servo motor, it delivers smooth, controlled operation with adjustable speed up to 200rpm and convenient touchscreen control.
The articulated 1180mm radius swivel arm allows the tapping head to be positioned quickly over the workpiece, reducing manual handling and making repetitive tapping operations considerably faster. Dual air springs provide smooth movement and stable positioning, while the motor unit can be adjusted from 0° to 90° for both vertical and angled tapping.
With a tapping capacity from M6 to M24, quick-action chuck and 9 tap collets included, the HMT-24 is an ideal addition to fabrication shops, engineering workshops and production environments.
The articulated 1180mm radius swivel arm allows the tapping head to be positioned quickly over the workpiece, reducing manual handling and making repetitive tapping operations considerably faster. Dual air springs provide smooth movement and stable positioning, while the motor unit can be adjusted from 0° to 90° for both vertical and angled tapping.
With a tapping capacity from M6 to M24, quick-action chuck and 9 tap collets included, the HMT-24 is an ideal addition to fabrication shops, engineering workshops and production environments.
Features
- M6–M24 tapping capacity – suitable for a wide range of general fabrication and engineering applications
- Powerful 1.2kW servo motor – delivers smooth, stable and controlled tapping performance
- 0–200rpm variable speed – easily set the appropriate speed to suit the tap size and application
- Intelligent touchscreen control – quick and convenient adjustment of operating parameters
- 1180mm cantilever radius – provides excellent reach across larger workpieces and welding tables
- 370mm height adjustment – allows the tapping head to accommodate different workpiece heights
- 0°–90° adjustable tapping head – suitable for vertical, horizontal and angled tapping applications
- Freely positionable articulated arm – quickly move and align the tap with the required hole
- Dual air-spring assisted arm – provides smooth movement and stable positioning during operation
- Quick-action chuck – allows fast tap holder changes to minimise downtime
- Adjustable torque control – helps protect taps and provides greater control during threading
- ISO / DIN / JIS tap holder compatibility – suitable for commonly used tapping systems
Includes
- 9 tap collets included – M5–6, M8, M10, M12, M14, M16, M18, M20 and M22–24
Compare Product Range
Specifications
| ORDER CODE | T0001 |
|---|---|
| MODEL | HMT-24 |
| Tapped holes at 400 N/mm² | M6 - M24 |
| Cutting Direction | Vertical |
| Drive system | Electrical |
| (mm)Cantilever Radius | 1180 |
| (mm)Height Adjustment | 370 |
| (Deg)Angle Adjustment | 0 - 90 ° |
| (Standard)Tap Holder | ISO / DIN / JIS |
| (rpm)Motor Speed | 0-200 |
| (kW)Drive Motor Output | 1.2 |
| (V)Voltage | 240 |
| (cm)Dimensions | 565 × 155 × 355 |
| (kg)Nett Weight | 48 |
