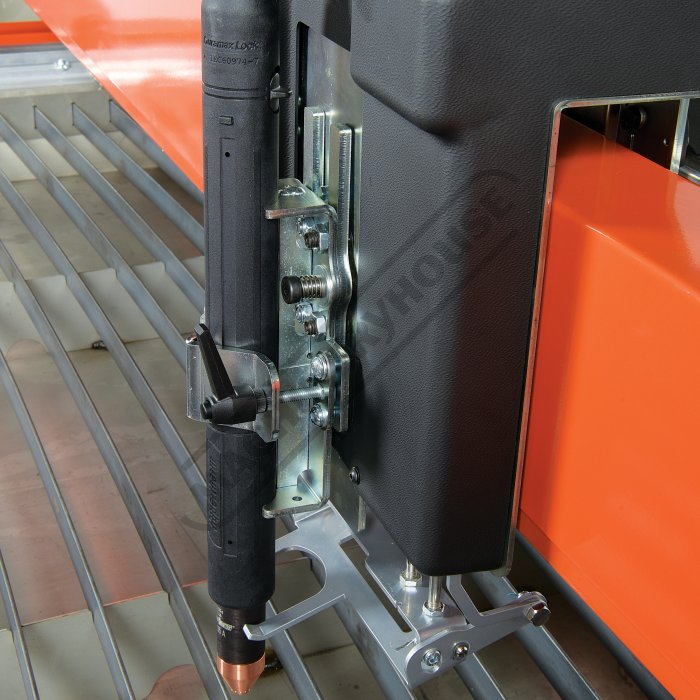

Breakaway Torch Return Position 18 of 29

Gantry Roller Support Right View 19 of 29

Gantry Roller Support Left View 20 of 29

Water Table 21 of 29

Laptop Table with Data Cable 22 of 29

Shown with Optional Laptop 23 of 29

Emergency Stop Switch 24 of 29

Stand with Storage Shelf 25 of 29

UNIMIG Plasma CUT 80 26 of 29

UNIMIG Plasma CUT 80 Front View 27 of 29

UNIMIG Plasma CUT 80 Left View 28 of 29

UNIMIG Plasma CUT 80 Rear View 29 of 29

SWIFTY

Discontinued

Order Code: P9006

415V / (NO PLUG)
1 Year Warranty

Made in United Kingdom

Sorry, this Product is no longer available
Click Here To View All Industrial CNC Plasma Cutting

Compare

Wishlist

Description Specifications Compare Accessories Downloads

Description

Compact CNC Plasma Cutting Table - SWIFTY 1250

1250 x 1250mm Table, Water Tray System, Unimig Razor Cut 80

Cuts up to 16mm Mild Steel Plate

Overview

Swifty - CNC Plasma 1250 x 1250mm Cutting Table and Unimig Razor 80 plasma to cut up to 16mm.

Swifty is a compact new CNC plasma cutting machine with big capabilities. It’s versatile, portable and easy to use opening up a world of possibilities and offering great value for smaller workshops.

All that is required to operate the Swifty is an air compressor and a laptop, giving the freedom to work wherever you wish.

Swifty 1250 CNC Software

Standard Version
• Auto Arc voltage capture and regulation
• Program recovery function automates starting part way through a program.
• Sheet Trim function to easily trim off excess skeleton
• G code browser & editor for the novice operator
• G code favourites – user customised
• DXF, DWG import function
• 3D part Viewer
• Advanced importer with ability to re-export the filtered DXF
• Sheet rotation function
• Automatic lead in / out of cut paths
• Dry run capability for testing prior to cutting
• Parametric shapes library
• Automatic Cutting Consumable recommendations based on material and thickness
• Manual nesting of parts
• Team viewer software for remote support.

Advanced Version (Optional Extra)
• All of the Standard version features
• Multiple simultaneous DXF import
• Automatic part in part nesting

Overview Plasma power source
The RAZORCUT 80 is an inverter-based Plasma cutting machine produced using the latest in IGBT technology. This machine is reliable, robust and stacked with features that you can expect from a quality Plasma Cutter. The RAZORCUT 80 produces a high temperature plasma stream providing effortless cutting of all electrically conductive materials including steel, cast Iron, stainless steel, copper, aluminium & brass etc.

• Latest IGBT Inverter Technology
• Safe Euro torch connection
• High quality Plasma machine torch
• Industrial application
• Tolerant to variable power supply
• In-built Air Regulator with preset air pressure
• Suitable to cut all electrically conductive materials
• Light weight and compact
• Strong metal housing, with plastic front and rear covers

Features

415V power supply
Up to 16mm pierce capacity
1250 x 1250mm cutting area
Water tray for efficient control of sparks and fumes
Heavy duty steel construction
Digital Torch-Height Control (DTHC) to ensure quality cutting
Soft Sense material height sensing, perfect for thin materials
Breakaway head eliminates damage to torch and improves safety
Includes stand with storage shelf, integrated laptop table and data cable
Machine comes fully assembled for accuracy, stand needs assembling

Includes

Swifty CNC cutting table
Swift CNC software
Unimig Razor 80 plasma unit
Air filter for plasma (C492)

Specifications

Compare Product Range

Specifications

ORDER CODE	P9006
MODEL	SWIFTY 1250
(mm)Cutting Capacity - Mild Steel	16
(mm)Cutting Table Capacity	1250 x 1250
Plasma Cutting Unit	Unimig Razor Cut 80
(amp)Current Output	20 - 80
Duty Cycle (Typical)	40% @ 80A 100% @ 50A
(Type)Fume Management	Water Tray System
(Type)Cutting Gas	Compressed Air
(V)Plasma Unit Input Voltage	415V
(amp)Plasma Unit Input Amperage	30
(kg)Nett Weight	461
