NSW Schools / TAFE - RR-10 Ring Rolling Machine
50 x 10mm Flat Bar Capacity
NSW Contract Item No.38
K8322
1 of 7

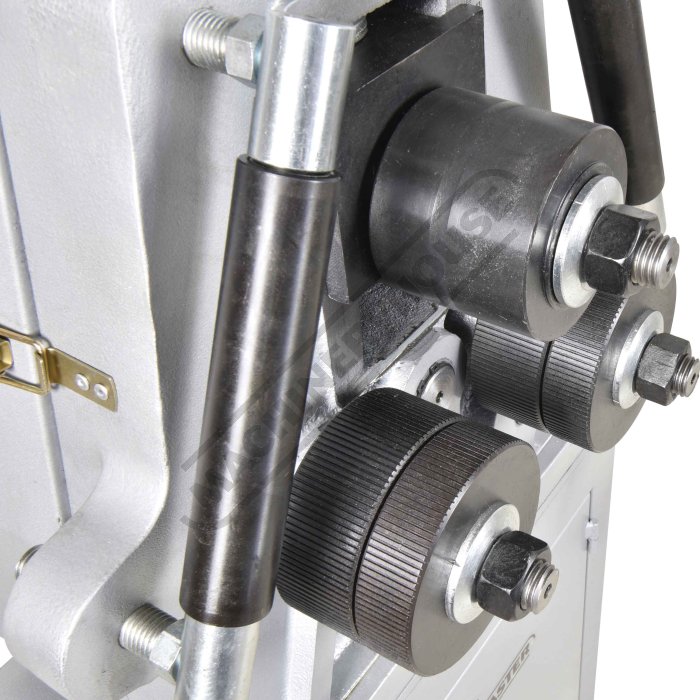

Rollers
2 of 7

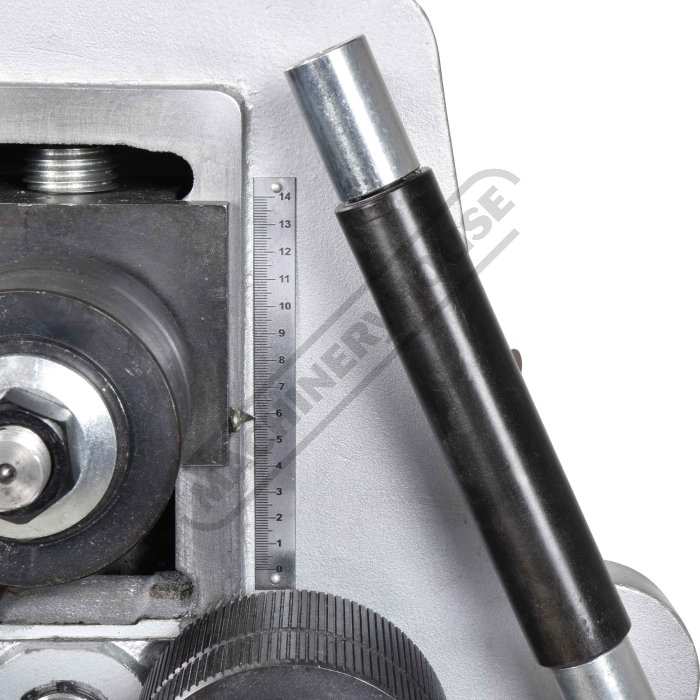

2
3 of 7

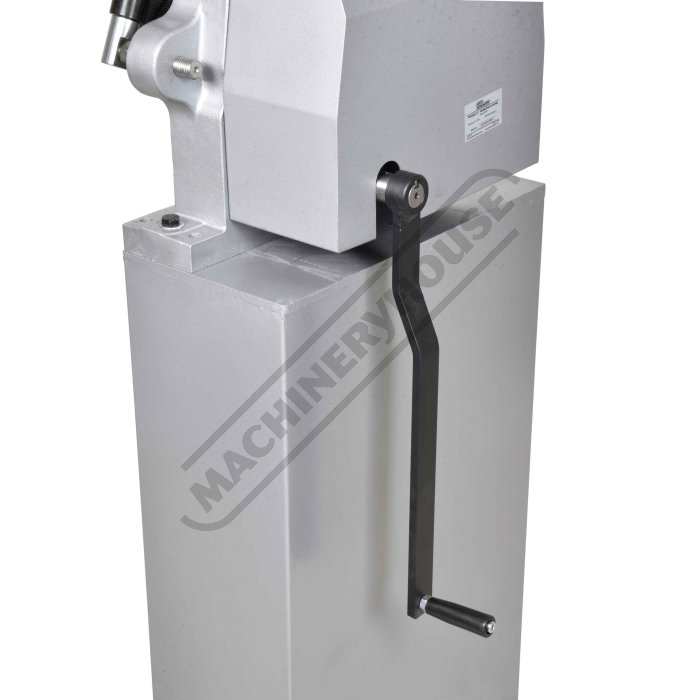

Rear Handle
4 of 7

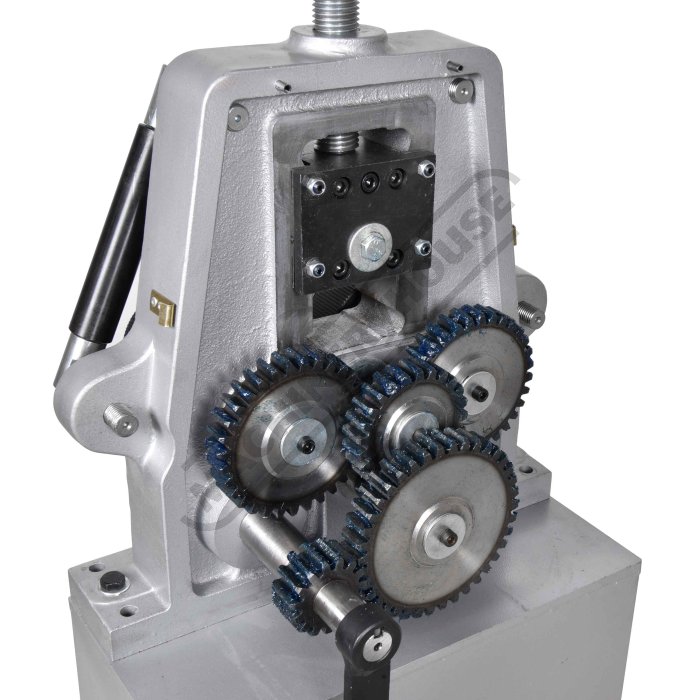

Internal Gears
5 of 7

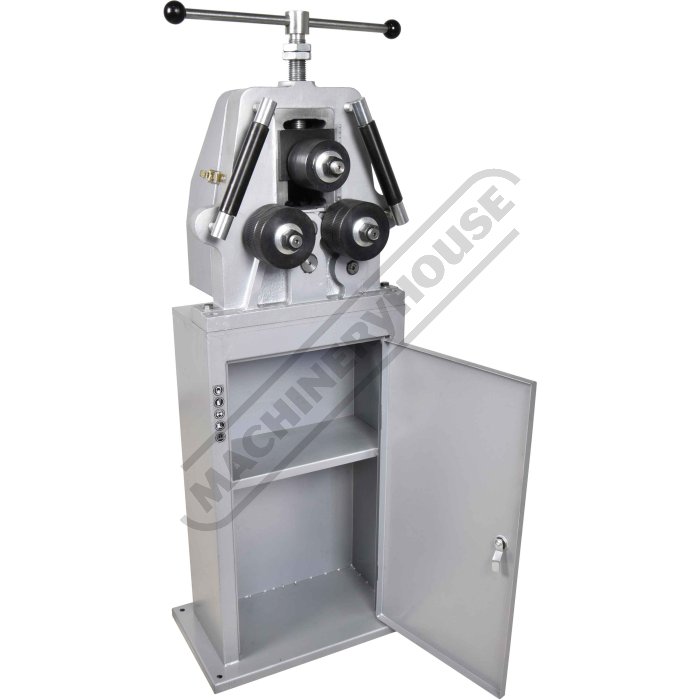

Storage Stand
6 of 7

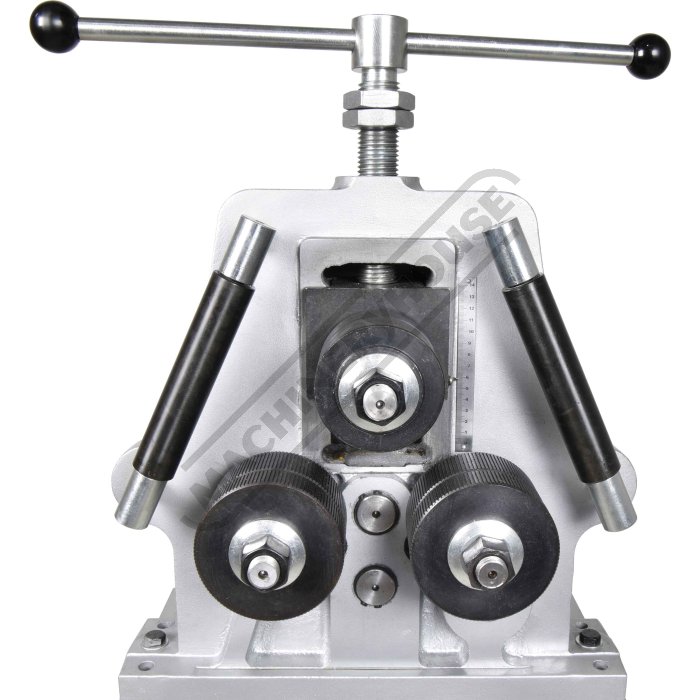

Roller Head
7 of 7
Order Code: K8322
Description
NSW Schools / TAFE - RR-10 Ring Rolling Machine
50 x 10mm Flat Bar Capacity
NSW Contract Item No.38
Features
- Hardened 98mm top & 118mm bottom rolls
- 30mm heat treated drive shaft
- Cast iron housing on heavy duty stand
- Gear driven rolls
- Heavy duty steel fabricated frame
- Bottom rolls are knurled for additional grip on material
- Manual screw adjustment of top roller
- Adjustable side support guide rolls
- Standard flat & angle rolls are included
- One piece guiding mono block mounted on cross head
- Flat bar capacity on edge 50 x 10mm
- Additional dies are required to roll round bar, round pipe/tube & square tube
Compare Product Range
Specifications
| ORDER CODE | K8322 |
|---|---|
| NSW Contract No. | NSW Item No.38 |
| MODEL | School / TAFE RR-10 |
| (mm)Roll Size | Ø118 (Bottom) |
| (mm)Flat Bar Capacity | 50 x 10 |
| (mm)Square Bar Capacity | 20 |
