UB-100 Workshop Bar Bender

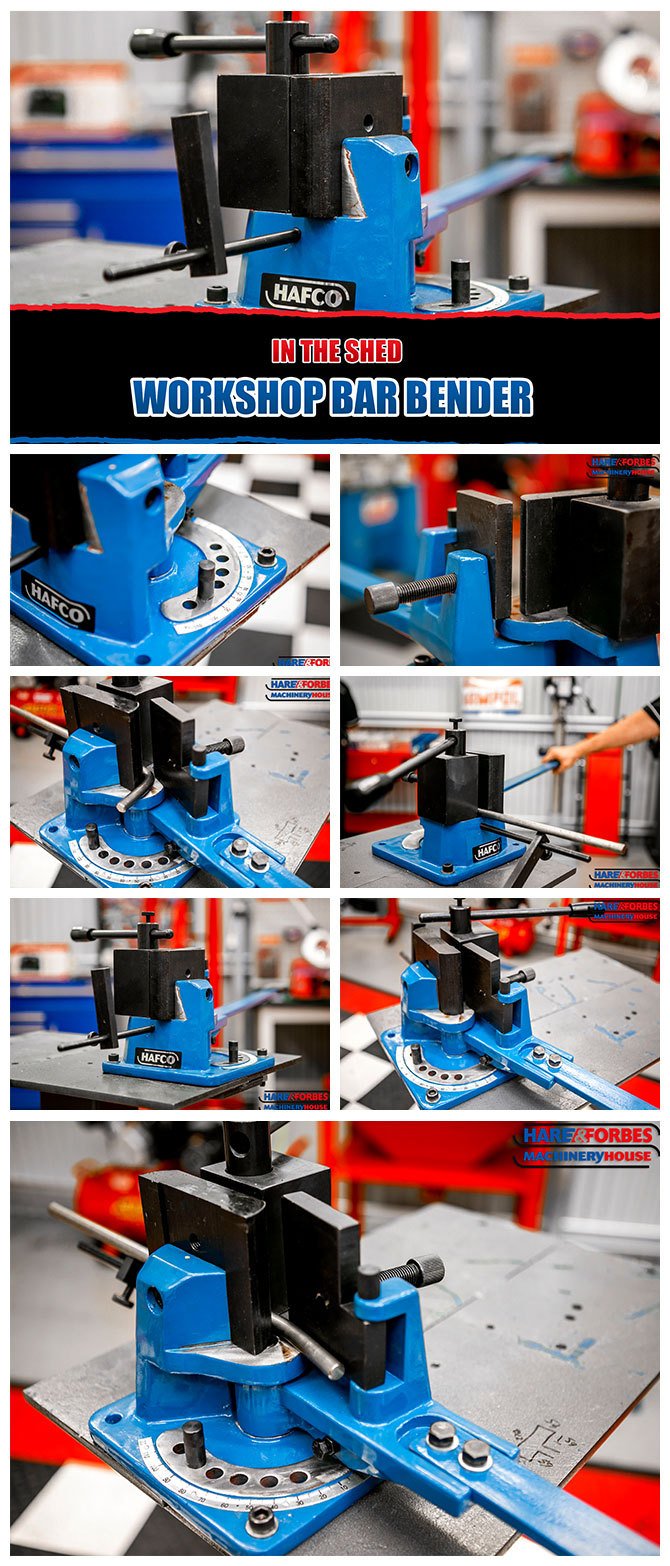

In The Shed: HAFCO UB-100 Workshop Bar Bender

For both cold and hot bending of flat, round or square steel — when producing grids, doors, gates, balcony railings and even outdoor furniture — the HAFCO UB-100 Workshop Bar Bender (Order Code: B043) is the right tool for the job.

With its simple design and heavy-duty construction, the easy-to-use bar bender mounts to the workbench for sturdy operation via four mounting holes.

This universal bench-top bar bender features an adjustable bending stop with angle scale up to 120°, plus an adjustable material length stop for repeatability. It offers bending angles of various radiuses by changing and/or turning around the die plate. There’s an eccentric quick-action cam lever material clamp and 690mm-long bending lever, while the wide supporting face ensures safe and reliable operation.

In regards to its mild steel bending capacities, the HAFCO UB-100 is capable of the following:
● Cold bending:
o Flat = 100 x 5mm
o Square = 16 x 16mm
o Round = Ø18mm
o Angle steel = 60 x 8mm (only with pre-notching)

● Hot bending:
o Flat = 100 x 10mm
o Square = 20 x 20mm
o Round = Ø20mm
o Angle steel = 100 x 10mm (only with pre-notching)

The HAFCO UB-100 Workshop Bar Bender is ideal for angle, round, loop and coil bending. Purchase yours online today!
