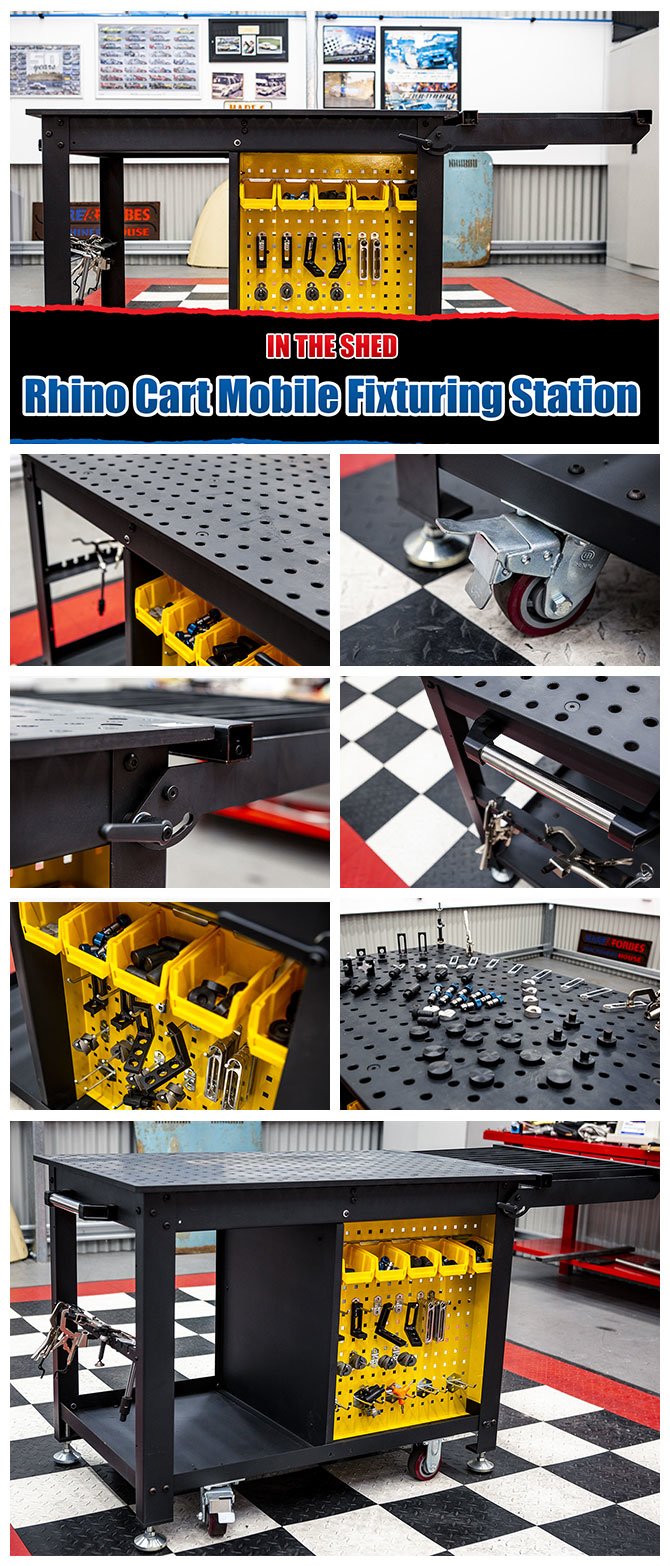

TDQ612075-K1 RhinoCart Mobile Fixturing Station

Strong Hand Tools TDQ612075-K1 Rhino Cart Mobile Fixturing Station

The Strong Hand Tools TDQ612075-K1 Rhino Cart Mobile Fixturing Station (Order Code: W07705) is a turnkey system for accurately fitting up and clamping work-pieces – it’s ideal for tasks such as tacking, welding and fabrication, as well as grinding, sanding and measuring.

Included in the Rhino Cart System package is the welding table, which measures 1200 x 750 x 910mm (LxWxH) and has a load capacity of 700kg.

The table-top lets the user position parts at any point thanks to CNC precision-bored holes, each featuring a 16mm diameter, and all arranged in a 50 x 50mm spacing/grid pattern.

It also boasts a nitrided black oxide hardened and protective finish that is wear-resistant, rust-resistant and weld spatter-resistant. The 16mm thick steel plate table-top is reversible, so simply turn it over to expose a new work surface.

The TDQ612075-K1 fixturing station is ideal for both mobile and stationary use inside or outside the workshop. It sports two fixed caster wheels and two swivel caster wheels — which can be locked — as well as levelling feet.

As part of this Rhino cart package is a 66-piece fixturing kit containing:
● 10 x T65055 Ball lock bolt (adjustable range: 24 ~ 28mm)
● 2 x T64201 Ø16mm locating pin
● 2 x PT07K Inserta pliers (60mm opening, max. 50mm reach)
● 2 x PT09K Inserta pliers (85mm opening, max. 75mm reach)
● 2 x UDN6150 Inserta clamp (150mm opening, 83mm reach, 16 x 8mm [D rail], T-handle)
● 2 x T64217 Magnetic top V pads for Inserta pliers and clamps)
● 2 x TCX6210 Side clamp (38mm stroke)
● 4 x T64203 Stop (Ø25 x 38mm)
● 4 x T64205 Stop (Ø25 x 50mm)
● 8 x T64216 V-Block (Ø40 x 23mm)
● 4 x T64211 V-Block spacer (Ø40 x 27mm)
● 8 x T60630 D-Stop bar (120 x 25 x 11.5mm)
● 12 x T50737 Magnetic rest button (Ø40 x 11.5mm)
● 2 x T60304 Right-angle bracket (41 x 91 x 30mm)
● 2 x T60305 Right-angle bracket (91 x 91 x 30mm)
● 1 x Backing panel with square holes to suits hooks and holders
● 5 x Plastic buckets
● 1 x Bucket holder
● 10 x Single prong hooks
● 5 x Double prong hooks

All clamps and fixturing elements are designed to be placed and adjusted from the top of the table, at any point on the surface. This allows for quick, accurate set-up of stock for each new project.

The TDQ612075-K1’s convenient, space-saving storage shelves, racks and pegboard for clamps, components and accessories keep the fixing tools needed for each job organised and within easy reach.

Improve your work quality and increase productivity through efficient, accurate work holding – choose the Strong Hand Tools TDQ612075-K1 Rhino Cart Mobile Fixturing Station. Purchase yours online today!
