HP-20 Workshop Hydraulic Press

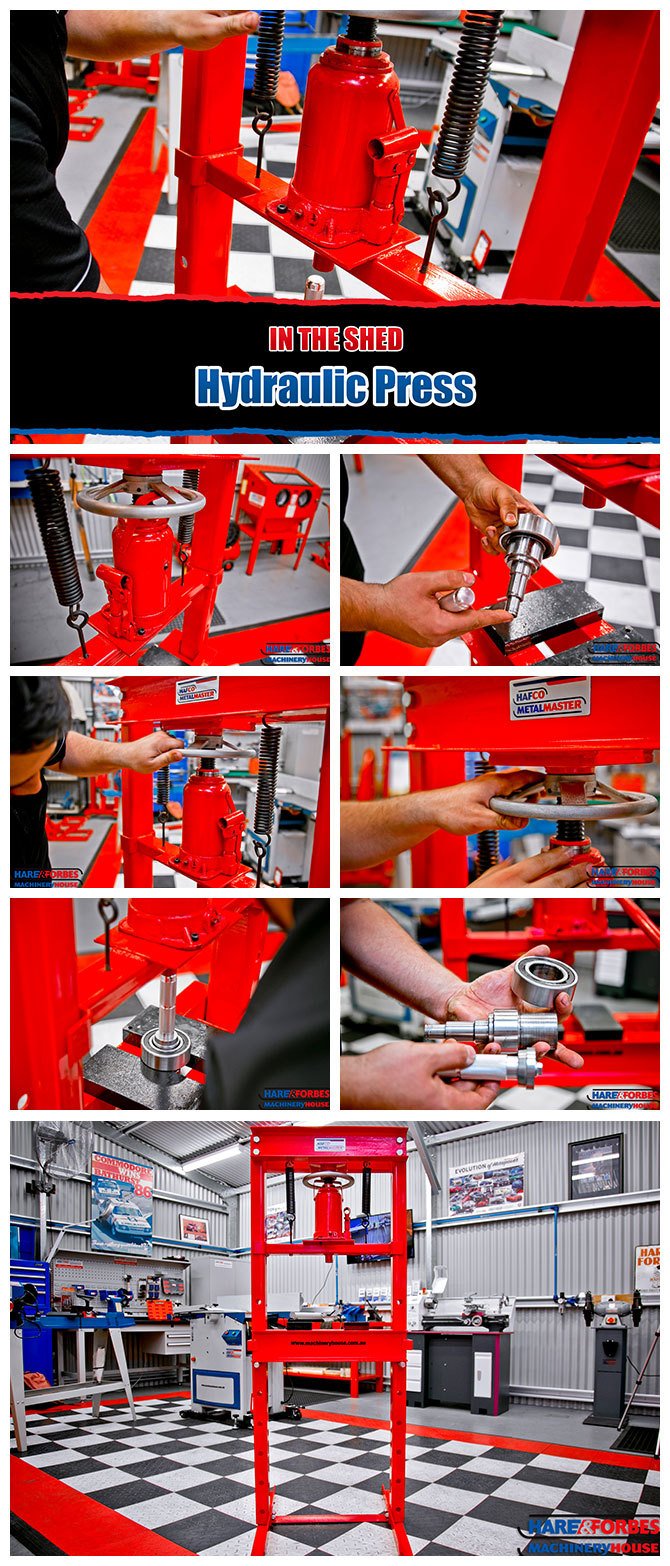

In The Shed: Hafco HP-20 Workshop Hydraulic Press

Suitable for installing or removing bushing, ball-joints, bearings, gears and pulleys, in addition to flattening or bending material and punching holes, the Hafco HP-20 Workshop Hydraulic Press is ready to report for general duties in any workshop or garage.

Hafco’s HP-20 Workshop Hydraulic Press (Order Code: P144) is manually operated and boasts an impressive 20-tonne pressing capacity. Industrial-grade hydraulics — featuring a spring return ram — ensure smooth, reliable operation for a long time.

Key performance specifications to bear in mind include:
• Maximum ram to table = 920mm
• Piston ram stroke = 110mm
• Ram diameter = Ø53mm

This H-frame-style hydraulic press is of steel construction for maximum rigidity and strength during regular use – it won’t buckle under pressure. Measuring 770 x 600 x 1575mm (L x W x H) overall, width between the front posts is 505mm, while the table top opening (front to back) is 92mm. Weighing a fraction under 90kg, the HP-20 is a sure-footed piece of equipment.

Complete with bending plates included so you can get straight to work, you’ll love the Hafco HP-20 Workshop Hydraulic Press – especially if your projects involve forging, clinching, moulding, blanking, punching, deep drawing and metal forming. What’s more, it’s a great value product – buy yours online today!

Please Note: Images are shown with Optional Hand Wheel, Order Code P440
