Digital Angle Rule
  • 1 of 5
  • 2 of 5
    90 degree view
  • 3 of 5
    Zero degree view
  • 4 of 5
  • 5 of 5
    Shown Measuring Blade Angle
Order Code: M970
Digital Angle Rule
Angle Rule

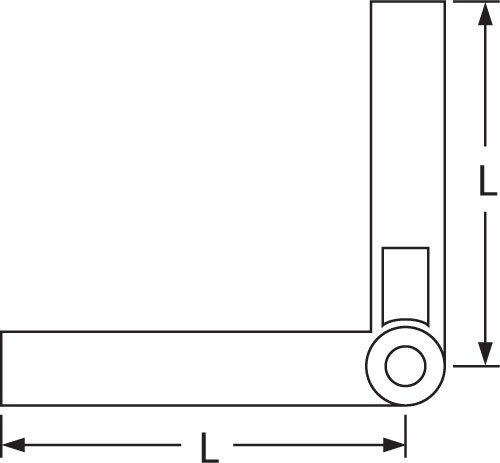

Blade Length (mm)
Range (deg)
Graduated Scale (mm)
Precision tool that can measure the angle and length accurately and quickly with a digital readout of the angles. Measure both the angle and length at the same time with a clear display and bold markings in both metric and imperial on the rules. The rules are made from corrosion resistant stainless steel. The battery life is around 200 hours and is protected by auto shut down after 6 minutes. The digital display will auto-start, switch on as soon as you open the rule, saving time and fumbling for a button. A serious tool for any wood working, building, machining and construction industries or setting out tasks.
  • Measures length, metric and imperial scales
  • Calculates angles quickly and accurately, clear digital display
  • Easy operation with just two operating buttons
  • Locking function to transfer angles easily and accurately
  • Corrosion resistant stainless steel rules for durability
  • Working temperature: 0ºC - +50ºC
  • Resolution: 0.1º
  • Accuracy: 0.3º
  • Zero button
  • 360º range

  • Includes CR2032 battery

Product Brochure
Select your Postcode & Suburb to estimate the delivery fee for this product.
Postcode & Suburb:
Freight is estimated from the nearest branch that has stock available.
Our delivery contractors operate Monday to Friday only, excluding public holidays.
All orders are processed in order of payment receipt.
Our aim is to despatch your goods as quickly as possible, however despatch times may take longer than our standard 3 to 5 day service during peak periods or according to stock levels, if this is the case we will advise you before processing your order.
More questions? Visit our delivery information page

  • Angle Rule (M970)
Blade Length (mm)
Range (deg)
Graduated Scale (mm)
Resolution (deg)
Price (ex GST)
Price (inc GST)

Spare Parts Ordering
To assist you in ordering your Spare Part to suit Hafco Machinery simply select from the list below, if your part is not listed below please view “Parts List PDF” to identify your part required (if provided) then simply click the "SEND PARTS REQUEST" Button and fill in the required details. Our Spare Parts and Service Department will contact you as quickly as possible. If you need further assistance please contact us.
