Order Code: C4610
ex-gst
inc-gst
$ 4,025.00
$ 4,427.50
240V / 30A
1 Year Warranty
Made in U.S.A
Finance Available
Description

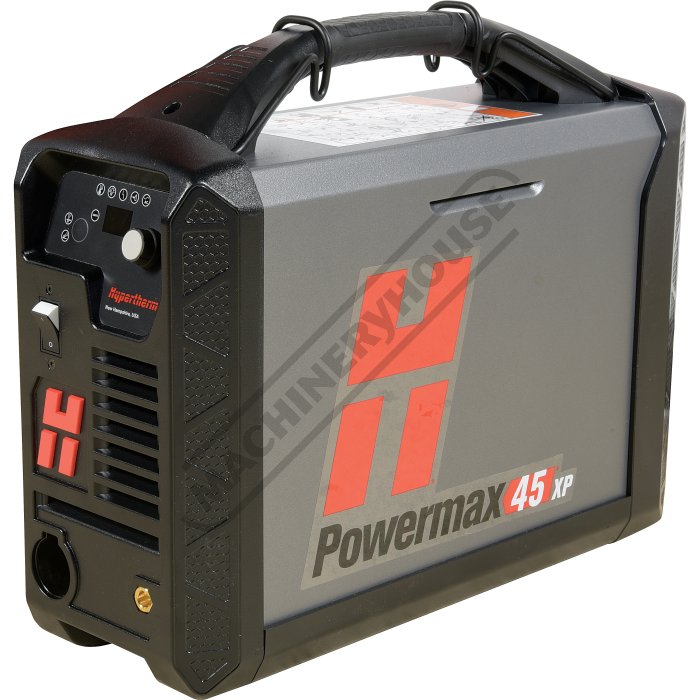

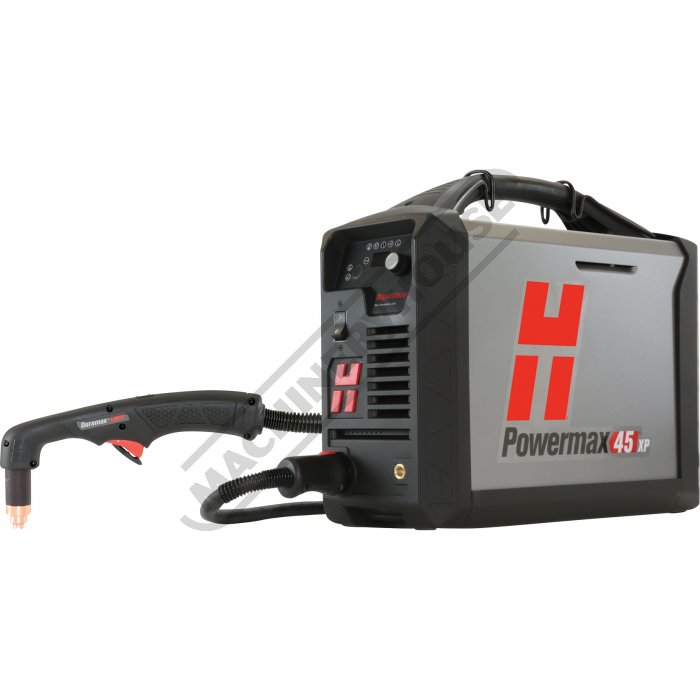

Powermax45 XP - Plasma Cutter

Clean Cut 16 mm - Cut Speed 500 mm/min / 22 mm - Cut Speed 250 mm/min
Severance (hand cutting) 29mm - Cut Speed 125 mm/min
Overview
The Powermax45® XP delivers increased cut capacity, as well as faster cut speeds, and automatic gas adjustment for quick, simple setup and operation. Duramax® Lock torches support handheld and mechanized cutting of a wider range of metal thicknesses, along with precision gouging such as spot weld removal, and marking capabilities
Features
  • Small size and light weight provide exceptional portability for a 16mm / 22mm rated cutting system
  • Patented drag-cutting technology makes the Powermax45 XP easy to use – even for first-time operators
  • Smart Sense™ technology ensures that air pressure is always correctly set
  • A wide range of torch and consumable styles to choose from for both handheld and automated processes

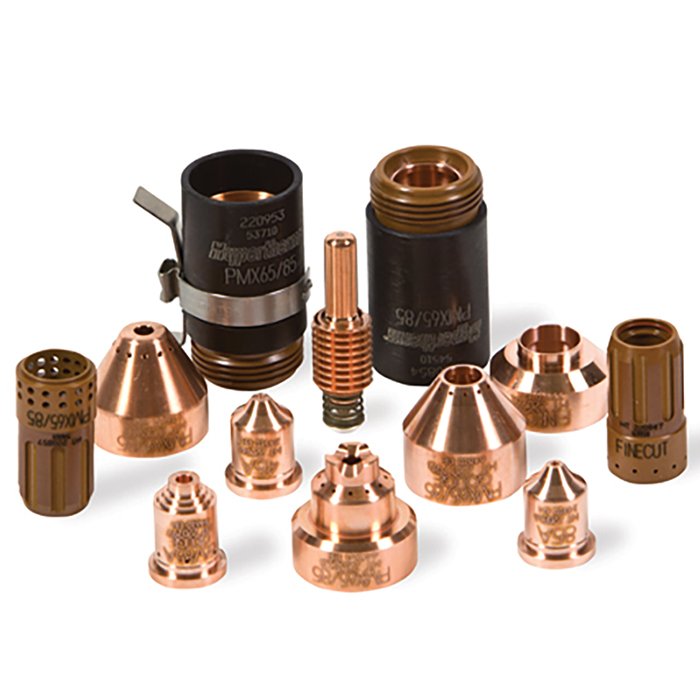

  • Extensive array of application capabilities via specialty consumables for fine feature cutting, extended reach cutting, gouging, precision gouging, and marking
Includes
  • Powermax 45 XP Power Source
  • 6.1 metre Duramax Lock 75° Plasma Torch
  • 6.1 metre Earth Lead
  • Instruction Manual
Recommended Accessories
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • MODEL
  • Part Number
  • (mm)Cutting Capacity - Steel
  • (mm)Cutting Capacity - Aluminium
  • (V / amp)Voltage / Amperage
  • (amp)Recommended Plug
  • Duty Cycle

  • (amp)Current Range
  • (PSI)Air Pressure Required
  • (L/min /Bar)Air Flow Capacity Required
  • (kVA)Recommended Generator KVA
  • (mm)Dimensions
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • On Sale - Limited StockC4211
  • Compare
  • Wishlist
  • C4211
  • VIPER™ CUT 30
  • KUPJRVC30
  • 14
  • ~
  • 240 / 10
  • 10
  • 15% @ 30 amp

  • 20-30
  • 70 ~ 87
  • 170 / ~
  • 7.5
  • 460 x 160 x 320
  • 11.6
  • $500.00
  • $550.00
  • ADD TO CART
  • On SaleC4212
  • Compare
  • Wishlist
  • C4211
  • VIPER™ CUT 30 Mk ll
  • U14005K
  • 12
  • 6
  • 240 / 10
  • 10
  • 15% @ 30Amp
    100% @ 20Amp
  • 20-30
  • 70 ~ 87
  • 170 / ~
  • 8
  • 534 x 166 x 343
  • 8.5
  • $600.00
  • $660.00
  • ADD TO CART
  • On Sale - Package DealK019
  • Compare
  • Wishlist
  • C4211
  • VIPER™ CUT 30 Mk ll
  • U14005K
  • 12
  • 6
  • 240 / 10
  • 10
  • 15% @ 30Amp
    100% @ 20Amp
  • 20-30
  • 70 ~ 87
  • 170 / ~
  • 8
  • 534 x 166 x 343
  • 8.5
  • $680.91
  • $749.00
  • ADD TO CART
  • On Sale - Package DealK019A
  • Compare
  • Wishlist
  • C4211
  • VIPER™ CUT 30 Mk ll
  • U14005K
  • 12
  • 6
  • 240 / 10
  • 10
  • 15% @ 30Amp
    100% @ 20Amp
  • 20-30
  • 70 ~ 87
  • 170 / ~
  • 8
  • 534 x 166 x 343
  • 8.5
  • $790.00
  • $869.00
  • ADD TO CART
  • On SaleC4203
  • Compare
  • Wishlist
  • C4203
  • RAZOR™ CUT 40 AIR
  • U14001K
  • 10mm clean-cut and 12mm severance
  • 6mm
  • 240 / 15
  • 15
  • 250% @ 40 amp

  • 20-40
  • 75
  • 120 / 5.17
  • ~
  • 610x215x420mm
  • 18
  • $1,520.00
  • $1,672.00
  • ADD TO CART
  • On SaleC423
  • Compare
  • Wishlist
  • C423
  • RAZOR™ CUT 45
  • KUPJRRW45
  • 16
  • ~
  • 240 / 15
  • 15
  • 25% @ 45 amp

  • 20-45
  • 75
  • 189 / ~
  • ~
  • 410 x 165 x 330
  • 9.8
  • $1,240.00
  • $1,364.00
  • ADD TO CART
  • On Sale - Package DealK0191
  • Compare
  • Wishlist
  • C423
  • RAZOR™ CUT 45 - Package Deal
  • KUPJRRW45
  • 16
  • ~
  • 240 / 15
  • 15
  • 25% @ 45 amp

  • 20-45
  • 75
  • 189 / ~
  • ~
  • 410 x 165 x 330
  • 9.8
  • $1,500.00
  • $1,650.00
  • ADD TO CART
  • On SaleC429
  • Compare
  • Wishlist
  • C429
  • RAZOR™ CUT 80
  • KUPJRRW80
  • 30
  • ~
  • 415 / 20
  • 20
  • 40% @ 80 amp

  • 20-80
  • 75
  • 189 / ~
  • ~
  • 560 x 220 x 415
  • 16
  • $1,800.00
  • $1,980.00
  • ADD TO CART
  • On Sale - Package DealK0192D
  • Compare
  • Wishlist
  • K0192D
  • RAZOR™ CUT 80 - Package Deal
  • KUPJRRW80
  • 30
  • ~
  • 415 / 20
  • 20
  • 40% @ 80 amp

  • 20-80
  • 75
  • 189 / ~
  • ~
  • 560 x 220 x 415
  • 16
  • $2,068.18
  • $2,275.00
  • ADD TO CART
  • On SaleC431
  • Compare
  • Wishlist
  • C431
  • RAZOR™ CUT 120
  • U14002K
  • 45
  • 36
  • 415 / 32
  • 32
  • 60% @ 120 amp

  • 20-120
  • 75
  • 189 / ~
  • ~
  • ~
  • 24
  • $3,500.00
  • $3,850.00
  • ADD TO CART
  • Special OrderC4600
  • Compare
  • Wishlist
  • C4600
  • Powermax30 AIR
  • ~
  • 12mm @ 250 mm/min
  • ~
  • 240 / 15
  • 15
  • 35% @ 30Amps

  • 15-30
  • Built In
  • Built In
  • 6.8
  • 420 x 195 x 333
  • 13.5
  • $3,600.00
  • $3,960.00
  • ADD TO CART
  • Limited StockC4606
  • Compare
  • Wishlist
  • C4605
  • Powermax30 XP
  • ~
  • 12mm @ 250mm/min
  • ~
  • 240 / 18.8
  • 20
  • 35% @ 30Amps

  • 15-30
  • 80
  • 113.3 / 5.5
  • 6.8
  • 356 x 168 x 305
  • 9.7
  • $2,875.00
  • $3,162.50
  • ADD TO CART
  • Special OrderC4610
  • Compare
  • Wishlist
  • C4610
  • Powermax45 XP
  • ~
  • 22 mm @ 250 mm/min
  • ~
  • 240 / 33
  • 32
  • 50% @ 45Amps

  • 10-45
  • 90
  • 188 / 5.9
  • 12.5
  • 442 x 173 x 357
  • 15
  • $4,025.00
  • $4,427.50
  • ADD TO CART
  • Special OrderC4611
  • Compare
  • Wishlist
  • C4611
  • Powermax45 XP
  • ~
  • 22 mm @ 250 mm/min
  • ~
  • 415 / 15
  • 15
  • 50% @ 45Amps

  • 10-45
  • 90
  • 188 / 5.9
  • 12.5
  • 442 x 173 x 357
  • 15
  • $4,025.00
  • $4,427.50
  • ADD TO CART
  • Special OrderC4650
  • Compare
  • Wishlist
  • C4650
  • Powermax125
  • ~
  • 44 mm @ 250 mm/min
  • ~
  • 415 / 36
  • 36
  • 100% @ 125Amps

  • 30-125
  • 85
  • 260 / 5.9
  • 53.6
  • 592 x 274 x 508
  • 48.9
  • $14,200.00
  • $15,620.00
  • ADD TO CART
