TMD620125F - BuildPro Max Modular Welding Table - Standard Finish
Reversible Table Plates
2000 x 1250 x 900mm (LxWxH)
NEW REVERSIBLE SELF-LOCATING TABLE PLATES!
Get longer wear from your BuildPro® Table.
When the surface of your BuildPro® Table plates show signs of wear, turn them over to provide a new work surface.
New, Patented Bushing design allows you to remove, re-position, re-align, and reverse the table plates!
The very practical, modular design of the BuildPro® Table makes it easy to set-up and tear down for job at hand, big or small. Save time and money by holding, positioning and locating quickly and easily with a wide variety of BuildPro® clamps and accessories.
In this economy, we know you need to be flexible and responsive to new business opportunities by reducing set-up time, improving consistency and work quality and remaining competitive in both pricing and delivery in a wide variety of jobs; short runs, volume production, prototypes, and multiple jobs in fabrication, repairs, and maintenance.
Table flatness : 0.30mm / 914.4mm
Hole diameter : 16mm + 0.05mm
Hole spacing : 50mm ± 0.038mm
Plate thickness : 16mm ± 0.10mm
All BuildPro® Max Tables have 16mm thick steel plate with Ø16mm holes in a 50mm grid pattern.
The New BuildPro MAX has a continuous plate tabletop surface with 33% more machined holes than the standard, slotted BuildPro Tables, for a maximized work surface.

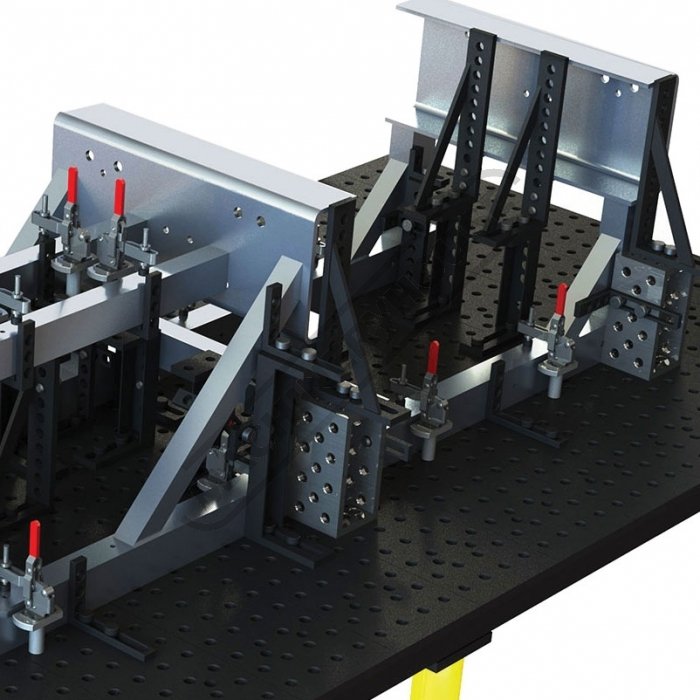

Use the BuildPro MAX to: Set-up heavy duty, large, or complex fixtures, or set-up more than one fixture at a time. Utilize the additional holes for clamping at multiple points for greater fixturing accuracy.
- Standard table material finish
- Ø16mm holes
- 16mm thick plate
- 50 x 50mm grid pattern
- 900mm table height
- Includes legs
