SMX 2100/2600/3100 Series
High Performance Multi-Axis Mill Turn Machines
The SMX series, is the next generation of multi-tasking turning centres integrating the functionalities and capabilities of multiple machines into one system. The SMX series provides users with a multi-tasking machine tool solution that significantly reduces machining time and machining operations.
SMX 2100/2600/3100 SERIES
Specifications
| Model | SMX 2100 · 2600 · 3100 |
|---|---|
| LEFT SPINDLE CHUCK Ø | 200 ~ 380mm |
| MAX TURNING Ø | 600 ~ 760mm |
| Turning Length | 1040 ~ 2540mm |
| LEFT SPINDLE BAR CAPACITY Ø | 67 ~ 102mm |
| LEFT SPINDLE SPEED | 5000 ~ 2400rpm |
| LEFT SPINDLE POWER | 22 ~ 30kW |
| RIGHT SPINDLE CHUCK Ø | 200 ~ 305mm OPT |
| RIGHT SPINDLE SPEED | 4000 ~ 5000rpm OPT |
| RIGHT SPINDLE POWER | 22 ~ 30kW OPT |
| C AXES RESOLUTION | 0.001° |
| MILLING SPINDLE SPEED | 12,000rpm |
| MILLING SPINDLE POWER | 22kW |
| MILLING TOOL SPINDLE | CAPTO ~ HSK |
| B AXIS TRAVEL | 240° (±120°) @ 0.0001° |
| Y Axis Travel | 210mm (±105) ~ 300mm (±150) |
| ATC Capacity | 40 ~ 120 |
| LOWER TURRET CAPACITY | 12/24 Tool inc. MILLING OPT. |
| Guideway Type | ROLLER LMG |
| Lubrication | GREASE |
Available Control Systems for all models
The SMX 2100/2600/3100 Series is available with Siemens or Fanuc.

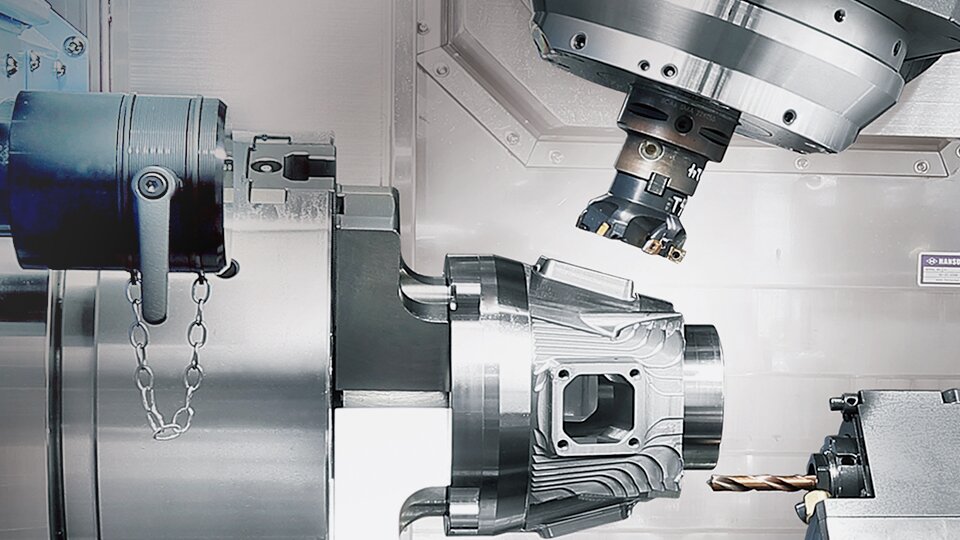

With a total of nine axes on the SMX Series, there is essentially no limit to what you can create. SMX machines are full 5 Axis Simultaneous Multi Tasking machines that deliver high performance and impressive flexibility.

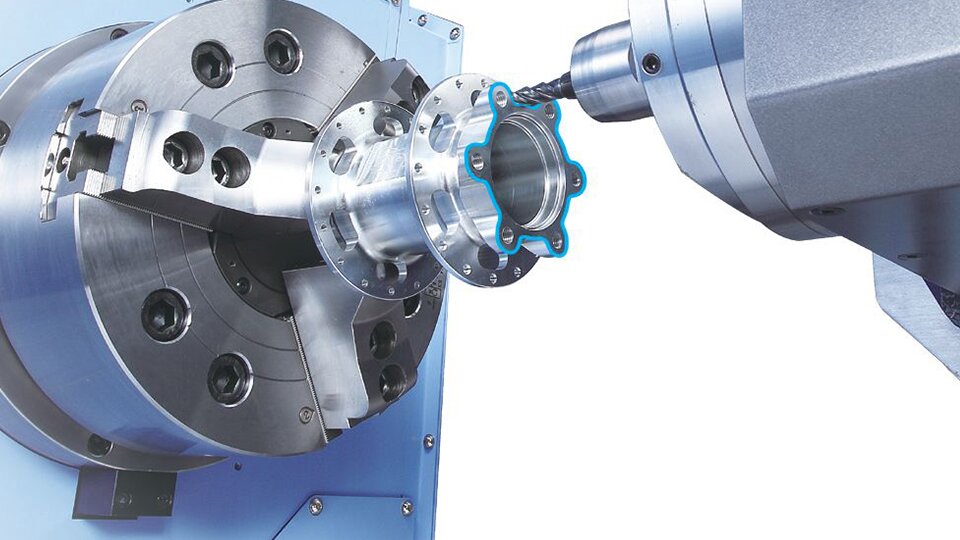

Even higher multi-tasking capability is available through the combination of the left and optional right spindle, the B-axis milling function and optional lower turret.
