DNX Series
Compact Multi-Axis Mill Turn Machines
The DNX Series is the multi-tasking solution bridging the gap between traditional turret style lathes and full 5 axis simultaneous mill-turns by offering versatility and precision. Using a single machine, multiple processes can be seamlessly integrated maximising output but minimising time and labour requirements.
DNX SERIES
Specifications
| Model | DNX 2100 |
|---|---|
| LEFT SPINDLE CHUCK Ø | 200 ~ 255mm |
| MAX TURNING Ø | 410 |
| Turning Length | 1100 |
| LEFT SPINDLE BAR CAPACITY Ø | 67 ~ 81mm |
| LEFT SPINDLE SPEED | 4000 ~ 5000rpm |
| LEFT SPINDLE POWER | 22kW |
| RIGHT SPINDLE CHUCK Ø | 200 ~ 255mm OPT |
| RIGHT SPINDLE SPEED | 4000 ~ 5000rpm OPT |
| RIGHT SPINDLE POWER | 18.5kW |
| C AXES RESOLUTION | 0.001° |
| MILLING SPINDLE SPEED | 12,000rpm |
| MILLING SPINDLE POWER | 18.5kW |
| MILLING TOOL SPINDLE | CAPTO ~ HSK |
| B AXIS TRAVEL | 240° (±120°) @ 0.0001° |
| Y Axis Travel | 230mm (±115) |
| ATC Capacity | 40 ~ 60 |
Available Control Systems for all models
The DNX Series is available with Siemens or Fanuc.

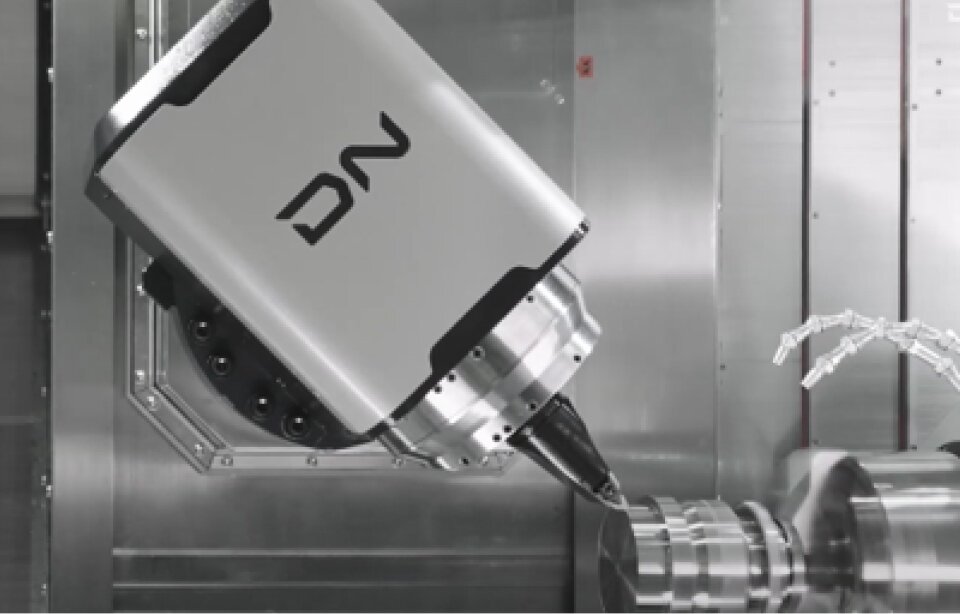

A compact multitasking machine capable of machining complex workpieces to perfection. With the largest machining area in its class and significantly enhanced convenience and productivity options, you can maximize your business productivity.
The DNX offers an economical upgrade to multi-tasking from traditional turret turning centre operators.
