PUMA DNT/GT Series
Global Standard Turning Centres
The PUMA DNT/GT Series is an 8" ~ 12" turning centre family that is equipped with some of the most powerful spindles in the class. Available in 2 or 3 Axis configurations the range provides precise machining and exceptional performance.
PUMA DNT/GT SERIES
Specifications
| Model | PUMA DNT2100 · DNT2600 · GT3100 |
|---|---|
| Main Spindle Chuck ⌀ | 210 ~ 380mm |
| Max Turning ⌀ | 300 ~ 460mm |
| Turning Length | 513 ~ 1525mm |
| Main Spindle Bar Capacity ⌀ | 65 ~ 102mm |
| Main Spindle Speed | 2500 ~ 4500rpm |
| Main Spindle Power | 18 ~ 26kW |
| Tailstock Quill ⌀ | 80 ~ 100mm |
| Tool Stations | 10 ~ 12 |
| Milling Tool Speed | 5000rpm OPT |
| Milling Power | 5.5 ~ 7.5kW OPT |
| Milling Tool Capacity | ER25 ~ 32 OPT |
| C Axis Resolution | 0.001° OPT |
| Guideway Type | Box Guideway |
| Lubrication | Oil |
Available Control Systems for all models
The PUMA DNT/GT Series is available with Siemens or Fanuc.
If you need for a heavy-duty standard turning centre, the PUMA DNT & GT series with their high performance spindles and large work areas, give you a best-in-class, high-productivity turning solution.

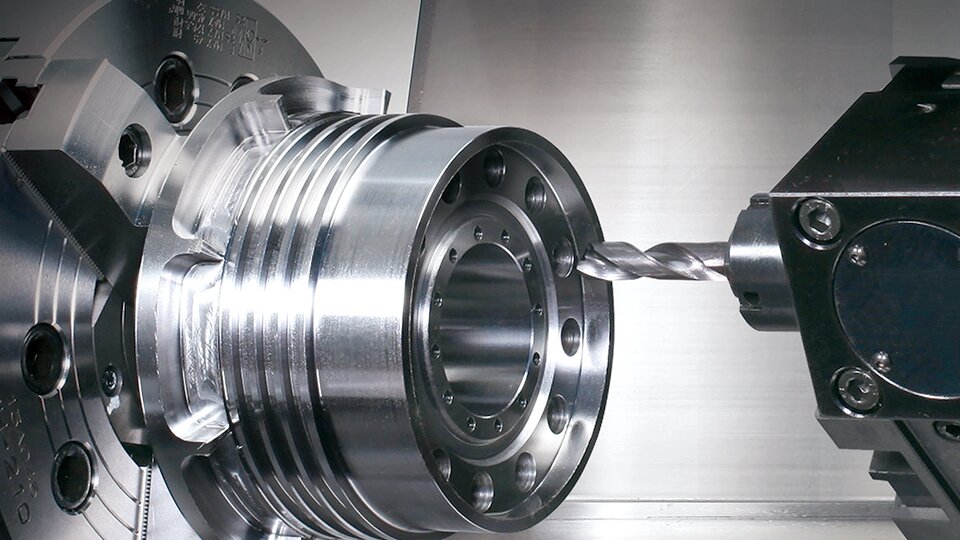

Powerful and precise cutting capabilities
Box guideway structure
Box guideway structure
