PUMA 600/700/800 Series
High Capacity, Heavy Duty Turning Centres
PUMA 600/700/800 machines are large turning centers ideal for machining pipes, valves and flanges, hydraulic parts, and other complex parts for numerous industries. Maximum turning diameters and lengths offered are some of the highest in their class.
PUMA 600/700/800 SERIES
Specifications
| Model | PUMA 600 · 700 · 800 |
|---|---|
| Main Spindle Chuck ⌀ | 210 ~ 380mm |
| Max Turning ⌀ | 376 ~ 525mm |
| Turning Length | 1600 ~ 5050mm |
| Main Spindle Bar Capacity ⌀ | 117 ~ 375mm |
| Main Spindle Speed | 500 ~ 1800rpm |
| Main Spindle Power | 55 ~ 75kW |
| Tailstock Quill ⌀ | 150 ~ 180mm |
| Tool Stations | 10 ~ 12 |
| Milling Tool Speed | 3000rpm OPT |
| Milling Power | 11kW OPT |
| Milling Tool Capacity | ER50 OPT |
| C Axis Resolution | 0.001° OPT |
| Y Axis Travel | 200mm (±100) OPT |
| Guideway Type | Box Guide Way |
| Lubrication | Oil |
Available Control Systems for all models
The PUMA 600/700/800 Series is available with Siemens or Fanuc.
Featuring the largest work envelopes in their class, the PUMA 600/700/800 II horizontal turning centres are ideal for machining large and complex components for the oil and gas, construction, aerospace and shipbuilding sectors - to name but a few.

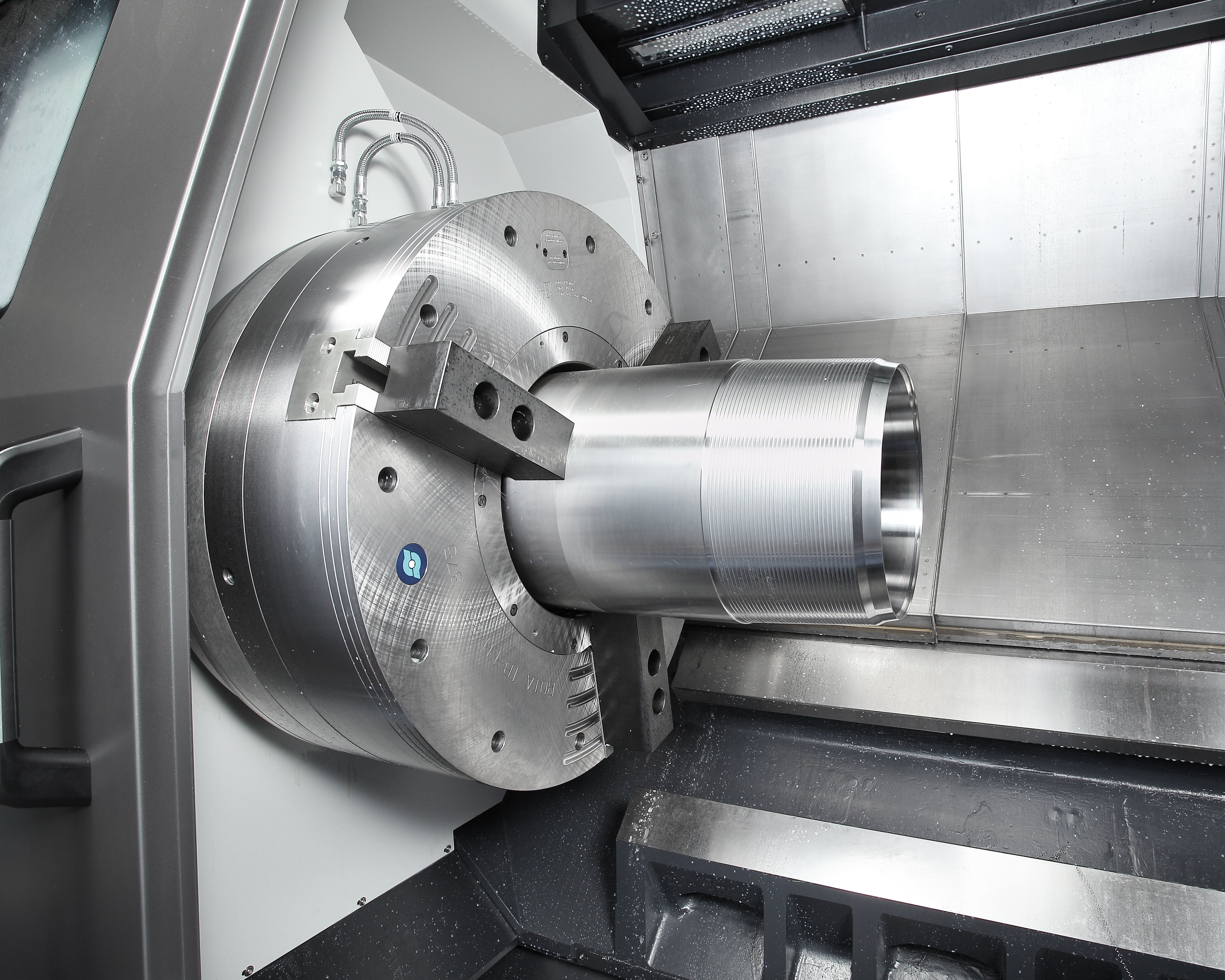

Single setup for machining large complex parts

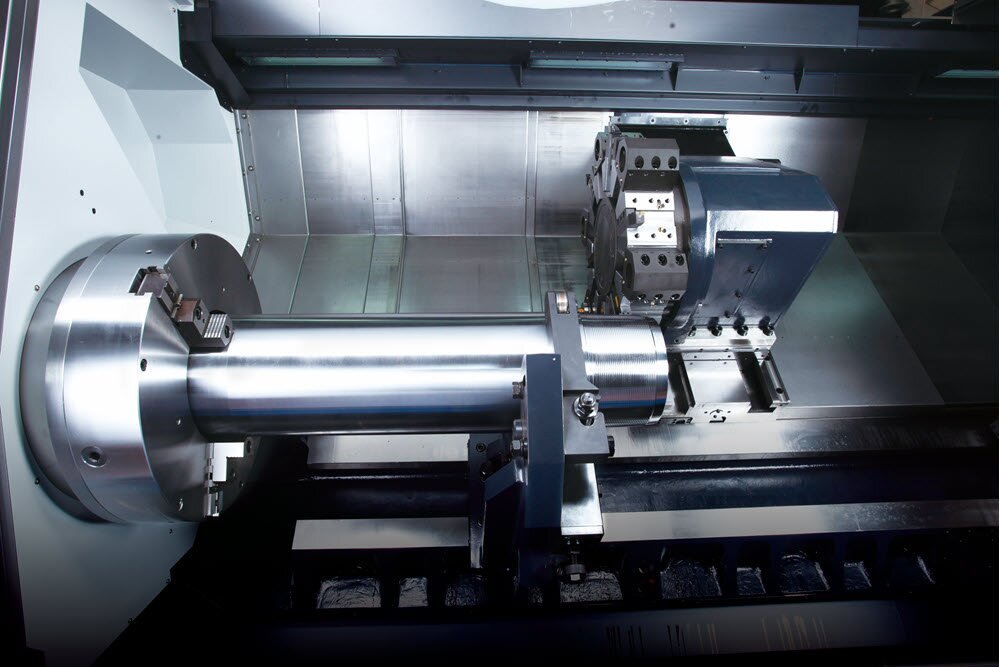

Maximum productivity can be achieved with the optional 200mm Y axis stroke
Maximum productivity can be achieved with the optional 200mm Y axis stroke
