PUMA 4100/5100 Series
Powerful Heavy Duty Turning Centres
PUMA 4100/5100 series is designed for machining medium-to-large size workpieces. They are powerful machines using a two-step gearbox and high torque motors and feature a rigid box guideway structure. The Y axis function available on the 5100 increases the functionality even further.
PUMA 4100/5100 SERIES
Specifications
| Model | PUMA 4100 · 5100 |
|---|---|
| Main Spindle Chuck ⌀ | 305 ~ 530+mm |
| Max Turning ⌀ | 550 ~ 650mm |
| Turning Length | 978 ~ 3070mm |
| Main Spindle Bar Capacity ⌀ | 102 ~ 275mm |
| Main Spindle Speed | 1000 ~ 3000rpm |
| Main Spindle Power | 30 ~ 45kW |
| Tailstock Quill ⌀ | 120mm |
| Tool Stations | 10 ~ 12 |
| Milling Tool Speed | 4000rpm OPT |
| Milling Power | 11kW OPT |
| Milling Tool Capacity | ER40 OPT |
| C Axis Resolution | 0.001° OPT |
| Y Axis Travel | 150mm (±75) OPT |
| Guideway Type | Box Guide Way |
| Lubrication | Oil |
Available Control Systems for all models

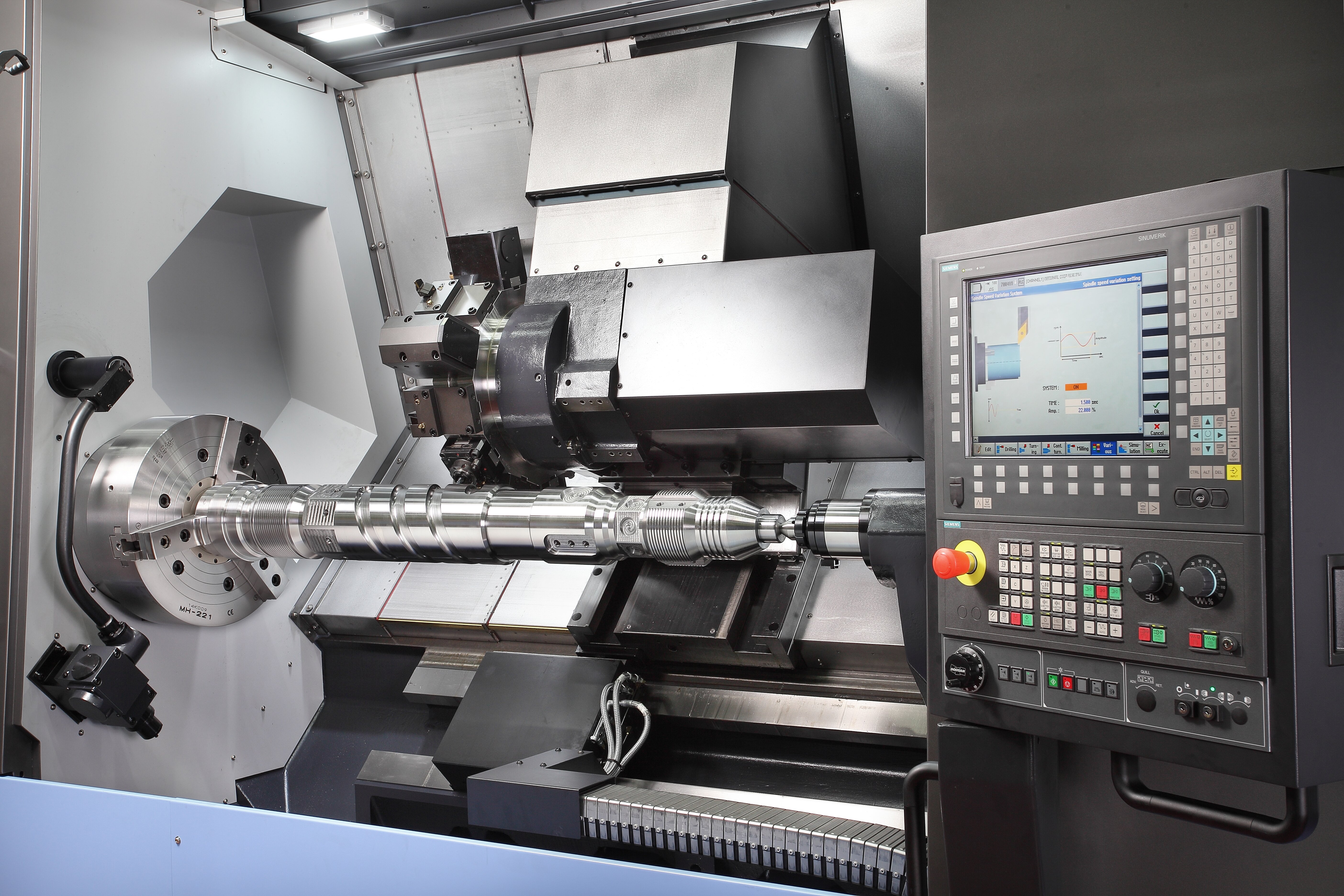

The PUMA 4100/5100 Series is available with Siemens or Fanuc.

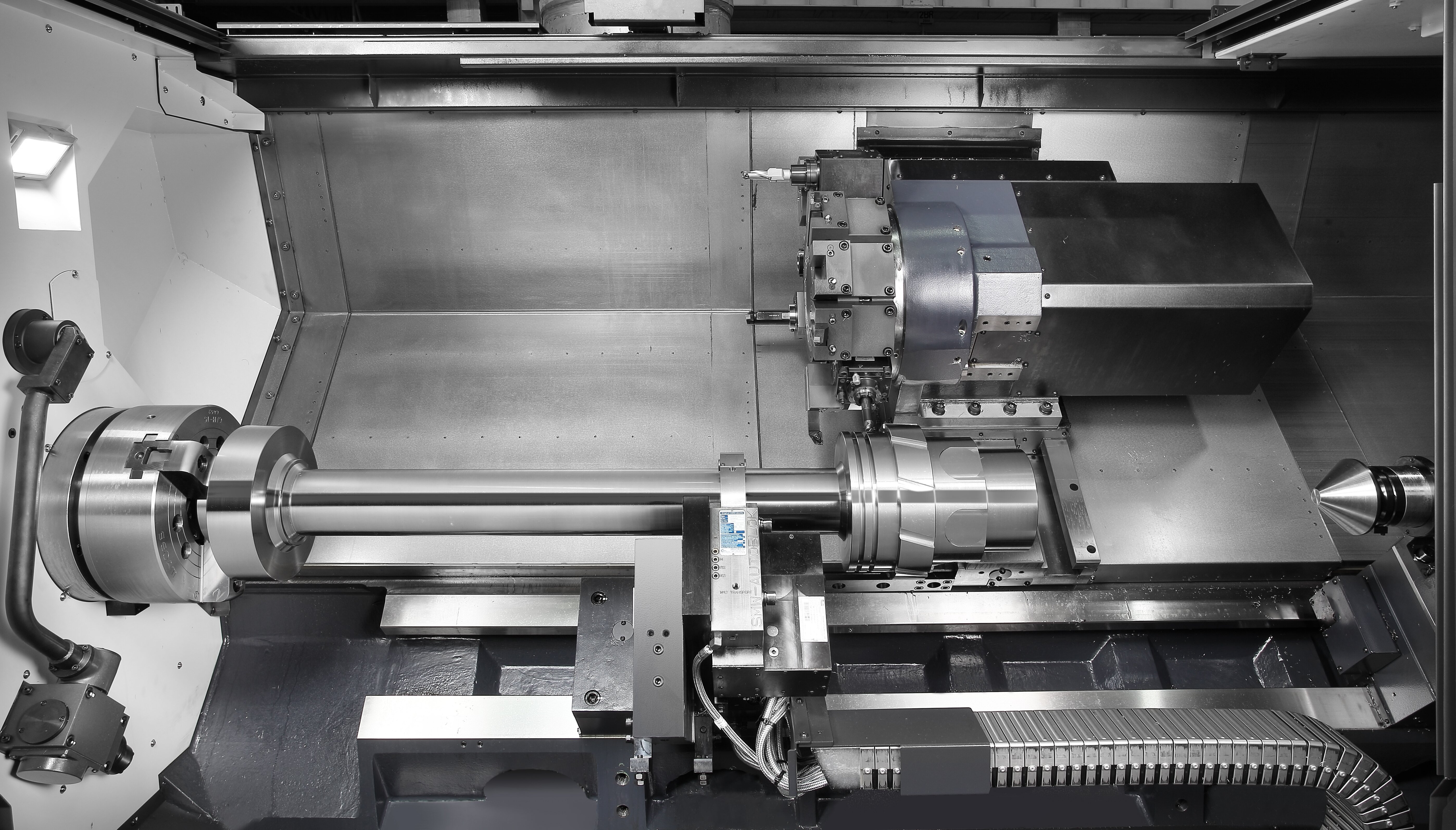

Boasting large machining areas and equipped with a range of productivity- and precision-enhancing technologies, PUMA 4100/5100 series are perfect for machining large, complex work pieces.
Wide range of solutions to improve threading performance and reduce failure ratios
Ø375 mm maximum spindle through hole diameter makes it ideal for turning large diameter pipes
Ø375 mm maximum spindle through hole diameter makes it ideal for turning large diameter pipes
