PUMA 1000 Series
Largest Box Guideway Turning Centres for Big Components
The PUMA 1000 series are the largest horizontal turning centres from DN Solutions. Optimized for the machining of very large pipe and flange type parts utilising powerful high torque motors and two-step gearboxes together with a rigid box guideway structure.
PUMA 1000 SERIES
Specifications
| Model | PUMA 1000 |
|---|---|
| Main Spindle Chuck ⌀ | 810 ~ 1200+mm |
| Max Turning ⌀ | 1000mm |
| Turning Length | 2000mm |
| Main Spindle Bar Capacity ⌀ | 375 ~ 560mm |
| Main Spindle Speed | 300 ~ 500rpm |
| Main Spindle Power | 75kW |
| Tailstock Quill ⌀ | 180mm |
| Tool Stations | 10 ~ 12 |
| Milling Tool Speed | 3000rpm OPT |
| Milling Power | 11kW OPT |
| Milling Tool Capacity | ER50 OPT |
| C Axis Resolution | 0.001° OPT |
| Guideway Type | Box Guide Way |
| Lubrication | Oil |
Available Control Systems for all models
The PUMA 1000 Series is available with Siemens or Fanuc.
The Puma 1000 is a big bore heavy duty lathe specifically designed for machining large and heavy components, and is the largest horizontal lathe in the DN Solutions range.

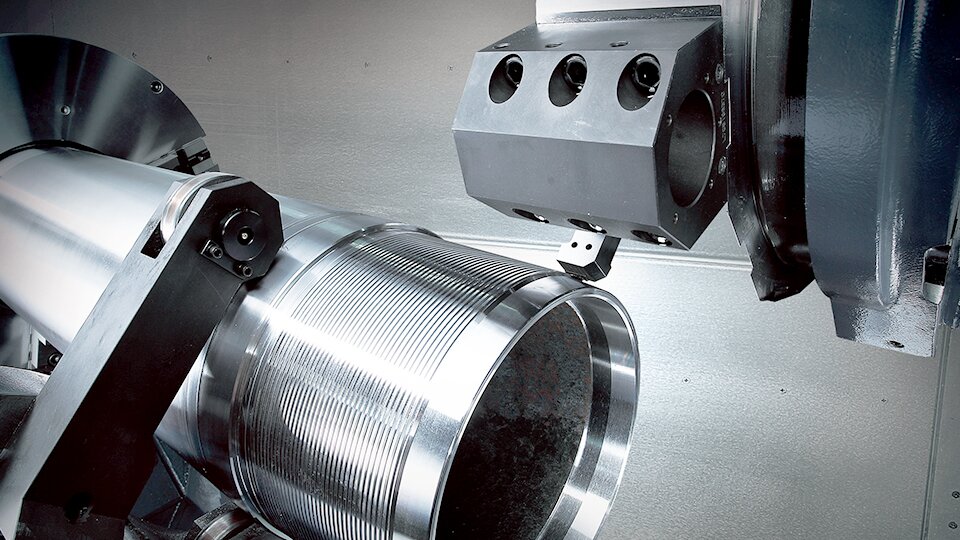

The machine, with its powerful high-torque spindle and robust servo-driven turret ensure heavy-duty cutting performance for machining long shafts, large diameter flanges & pipes and more.
The machine, with its powerful high-torque spindle and robust servo-driven turret ensure heavy-duty cutting performance for machining long shafts, large diameter flanges & pipes and more.

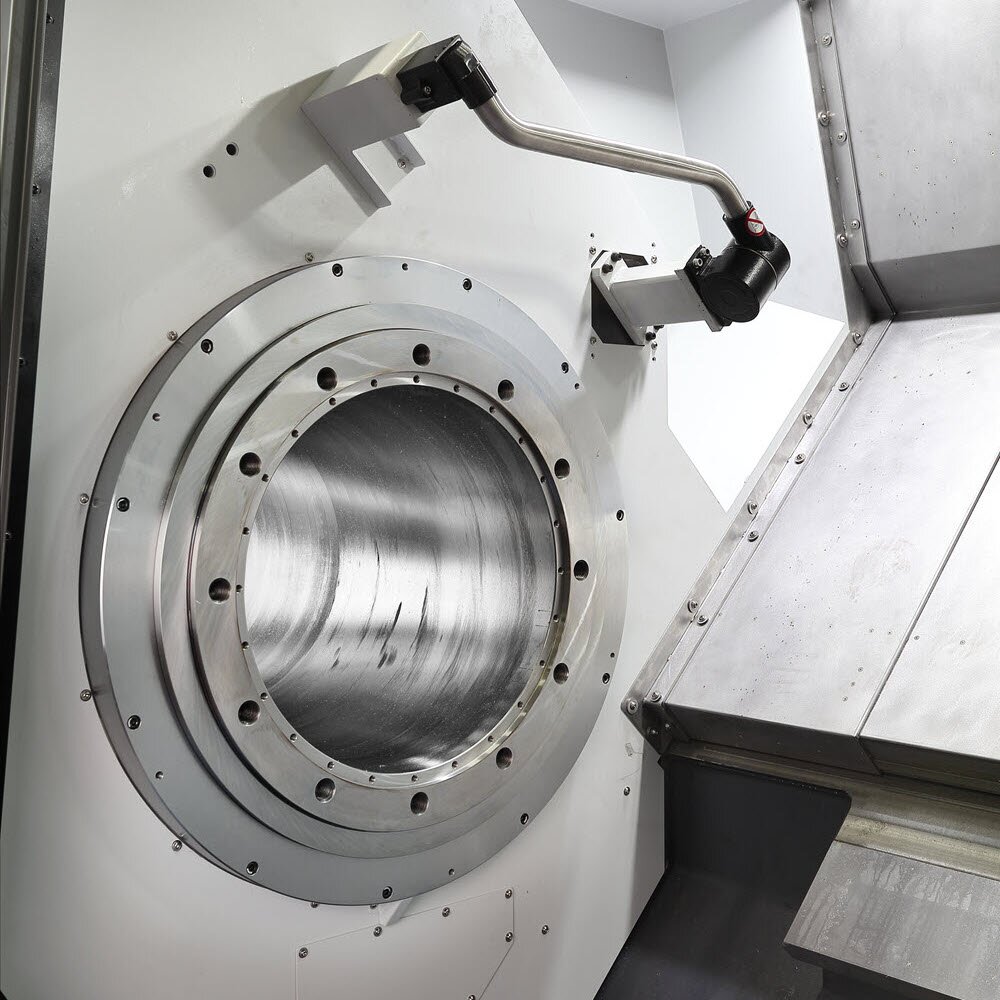

The massive Ø560mm big bore spindle option offers a capacity few can match.
