LYNX Series
High Performance Compact Turning Centres

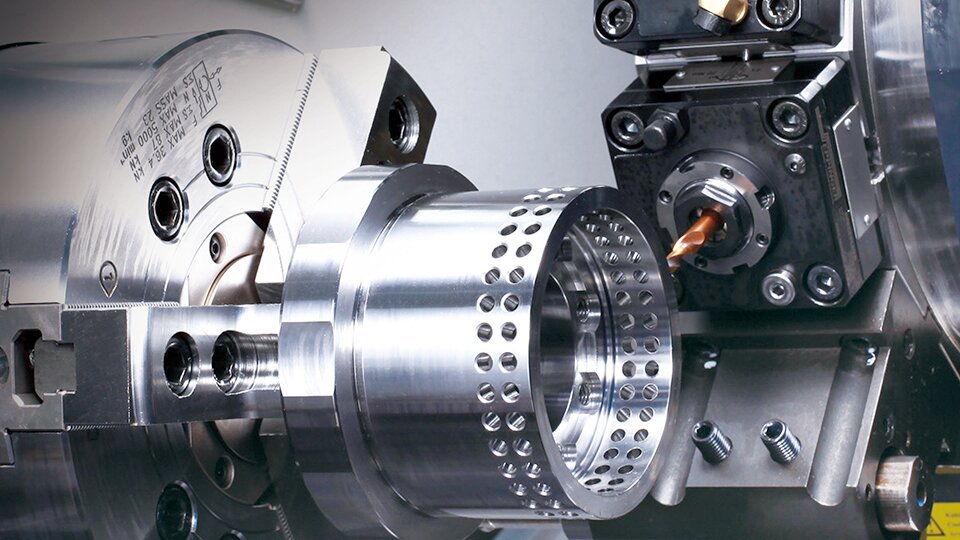

The LYNX machines have upgraded structural rigidity/accuracy to increase its machining capabilities and productivity. High precision off-center machining is easy to achieve and productivity gains, thanks to reduction in cutting and non-cutting times, can be realised.
LYNX SERIES
Specifications
| Model | LYNX 2100 · LYNX 2600 |
|---|---|
| Main Spindle Chuck ⌀ | 150 ~ 255mm |
| Max Turning ⌀ | 300 ~ 460mm |
| Turning Length | 330 ~ 658mm |
| Main Spindle Bar Capacity ⌀ | 51 ~ 81mm |
| Main Spindle Speed | 3500 ~ 6000rpm |
| Main Spindle Power | 15 ~ 18.5kW |
| Tailstock Ctr | #4 |
| Sub Spindle Chuck ⌀ | 125 ~ 150mm OPT |
| Sub Spindle Speed | 4500 ~ 6000rpm OPT |
| Tool Stations | 12 ~ 16 ~ 24 |
| Milling Tool Speed | 5000 ~ 6000rpm OPT |
| Milling Power | 3.7 ~ 5.5kW OPT |
| Milling Tool Capacity | ER20 ~ 25 OPT |
| C Axis Resolution | 0.001° OPT |
| Y Axis Travel | 105mm (±52.5) OPT |
| Guideway Type | Roller LMG |
| Lubrication | Grease |
Available Control Systems for all models
The LYNX Series is available with Siemens or Fanuc.
The Lynx 2100 and Lynx 2600 horizontal turning centers have a small footprint but deliver huge productivity gains.
Available in 2, C & Y axis variants with or without a sub spindle.
The machines are tough, reliable and get down to business fast.
Available in 2, C & Y axis variants with or without a sub spindle.
The machines are tough, reliable and get down to business fast.
Low vibration/noise spindle

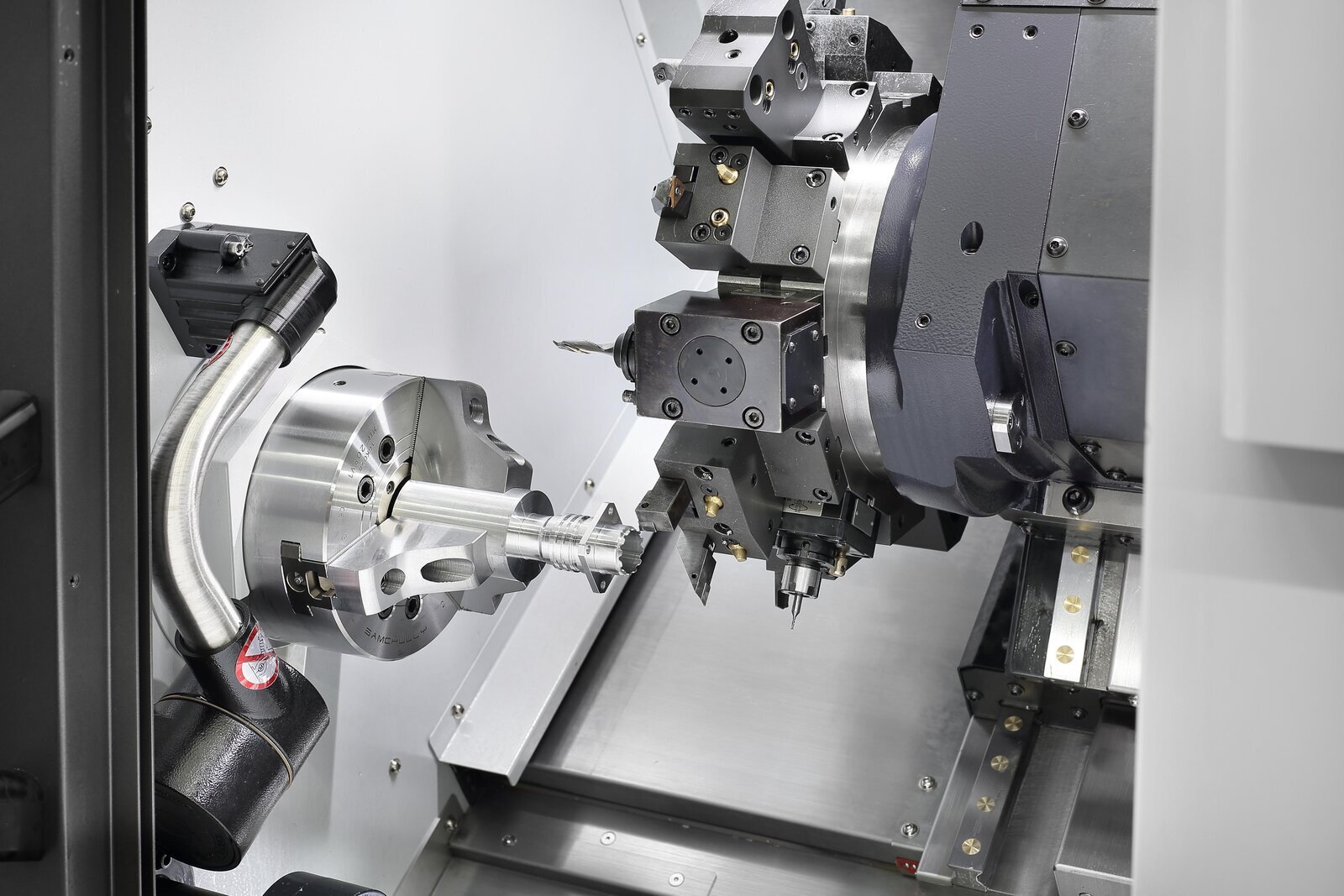

Servo-driven turret
Full slideway cover to prevent leakage and chip ingress
