Specifications
| ORDER CODE | M910 |
|---|---|
| MODEL | F300 |
| Travel (X Axis) | 1100 |
| Travel (Y Axis) | 650 |
| Travel (Z Axis) | 650 |
| Rapid Traverse (X, Y, Z Axis) | 36 |
| Motor Torque (X & Y Axis) | 20 |
| Motor Torque (Z Axis) | 36 |
| Table T Slot (size/distance/number) | 18mm / 125mm / 5 |
| Position Accuracy | 0.01 |
| Automatic toolchanger | 24 |
| Spindle Taper | BT40 |
| Spindle Speed Range | 80-10000 |
| Spindle Motor Torque | 70Nm |
| Motor Power | 11 / 15 |
| Voltage / Amperage | 415 |
| Dimensions | 2850 x 2450 x 2600 |
| Nett Weight | 5000 |
Machine Overview
Designed and Engineered in Germany the OPTIMUM CNC range is a market leader in Europe and is now available in Australia through Hare and Forbes Machinery House. Offering exceptional value for money the OPTIMUM range can have you set up for in house CNC machining at a fraction of the financial outlay previously required.
Basic Specifications
- Travel - X 1100mm, Y 650, Z 650mm
- Table Size - 1200 x 600mm
- Table load - 800kg
- T-Slot size - 18mm / 125mm * 5
- Rapid Traverse - X 36, Y 36, Z 36m/min
- Spindle Nose to Table - 120 – 770mm
- High precision wide span linear guide ways
Main Spindle
- BT 40 Taper
- 10,000 rpm heavy duty spindle
- 11kW / 15Hp spindle motor
- Air blast through spindle
Siemens CNC control
- Siemens 828D CNC control
- 12.1 TFT colour controller
- ShopMill conversational step programming
- Measuring cycles for calibration of workpiece probe, workpiece measurement probing and tool measurement
- Rigid-synchronised tapping
- Helical interpolation
- Ethernet interface
- USB port
SINUMERIK MDynamics optional technology included with machine
- High speed machining settings
- Advanced surface
Axis Motors & Drives
- Siemens servo drive amplifiers
- Siemens high torque direct coupled AC digital servo motors
Tool Changer

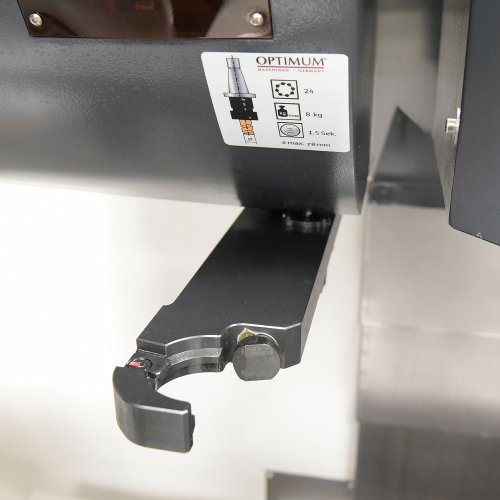

- High-speed arm type automatic tool changer

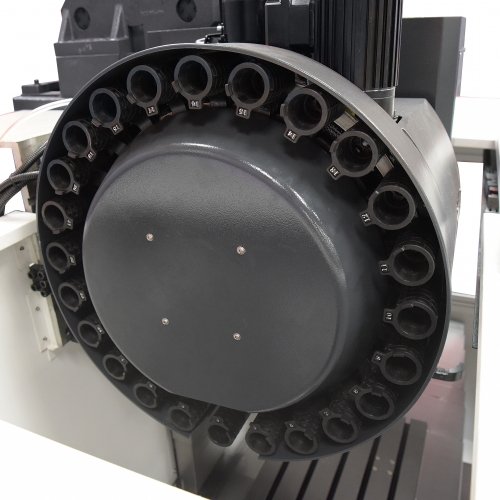

- 24 tool bi-directional magazine
- Maximum tool diameter 78mm (Adjacent tools)
- Maximum tool length 300mm
- Maximum tool weight 8kgs
Coolant System
- Flood coolant (M08)
- Machine coolant tank 250L

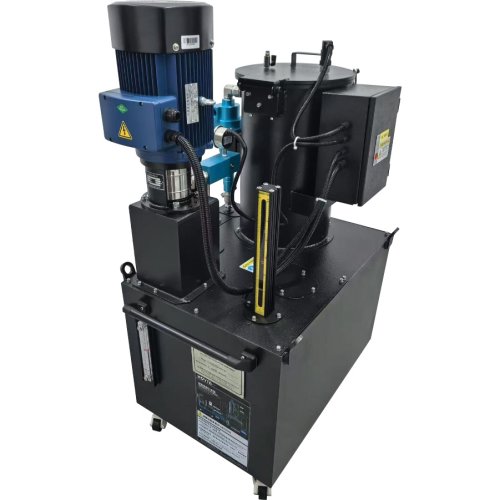

- High pressure through spindle coolant 25 bar with separate tank
Swarf Removal

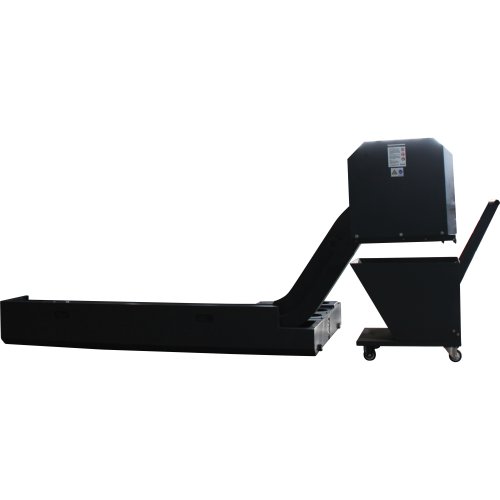

Belt type chip conveyor
Operation

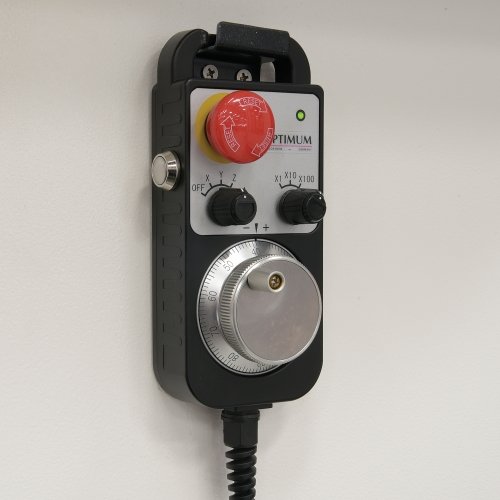

- Remote MPG (Portable hand wheel)

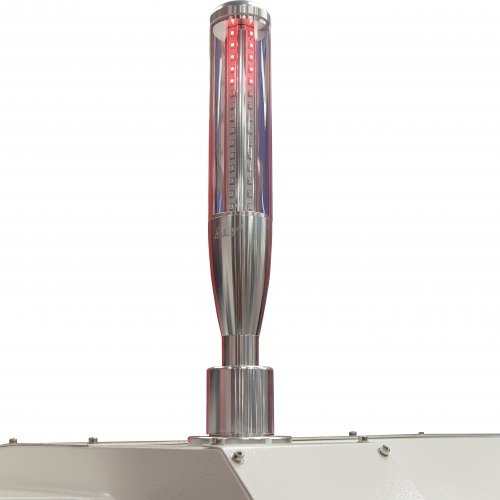

- 3 Colour Operation lamp

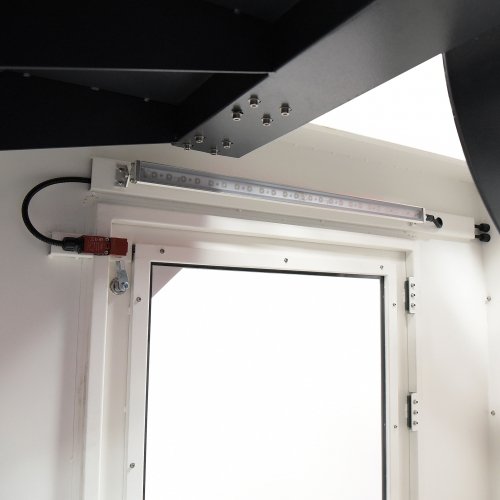

- High output LED work light
- Machine operating & maintenance manuals
- Electrical schematics
- Automatic lubrication equipment
- Full CE safety enclosure with safety PLC
