Specifications
| ORDER CODE | M908 |
|---|---|
| MODEL | F150E |
| Travel (X Axis) | 750 |
| Travel (Y Axis) | 500 |
| Travel (Z Axis) | 500 |
| Rapid Traverse (X, Y, Z Axis) | 36 |
| Motor Torque (X & Y Axis) | 15 |
| Motor Torque (Z Axis) | 22 |

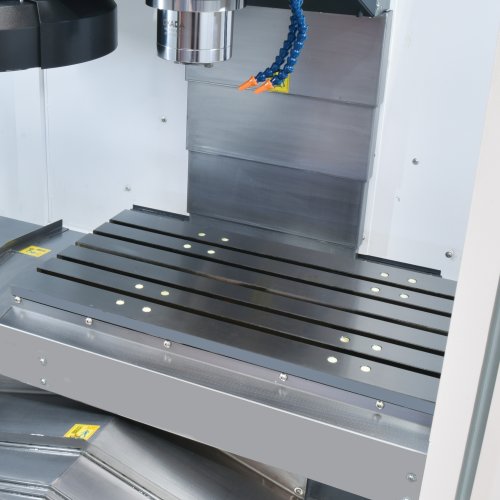

| Table T Slot (size/distance/number) | 18mm / 80mm / 5 |
| Position Accuracy | 0.008 |
| Automatic toolchanger | 16 |
| Spindle Taper | BT40 |
| Spindle Speed Range | 80 - 10000 |
| Motor Power | 7.5 / 10 |
| Voltage / Amperage | 415 / 32 |
| Dimensions | 2400 x 2100 x 2400 |
| Nett Weight | 4000 |

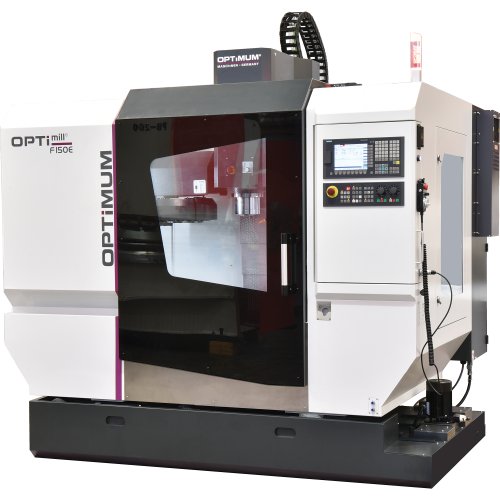

Machine Overview
Designed and Engineered in Germany the OPTIMUM CNC range is a market leader in Europe and is now available in Australia through Hare and Forbes Machinery House. Offering exceptional value for money the OPTIMUM range can have you set up for in house CNC machining at a fraction of the financial outlay previously required.
Features

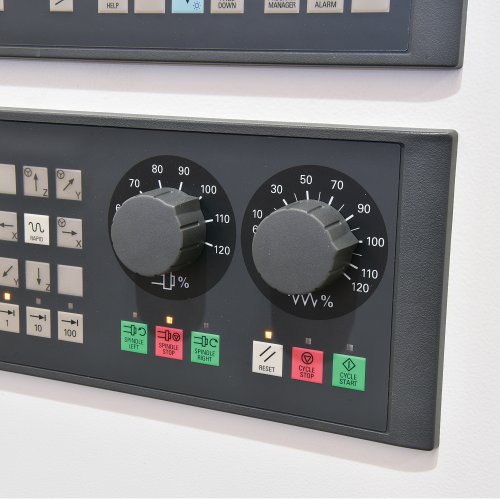

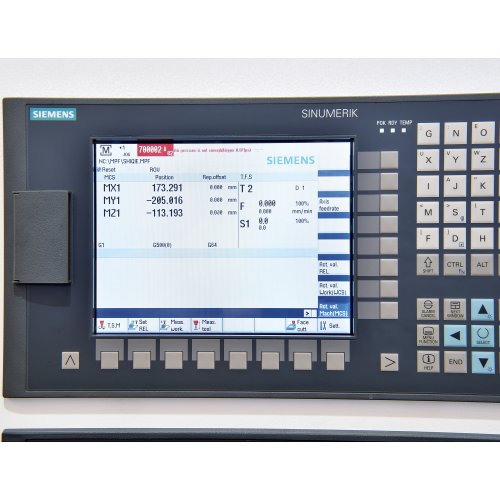

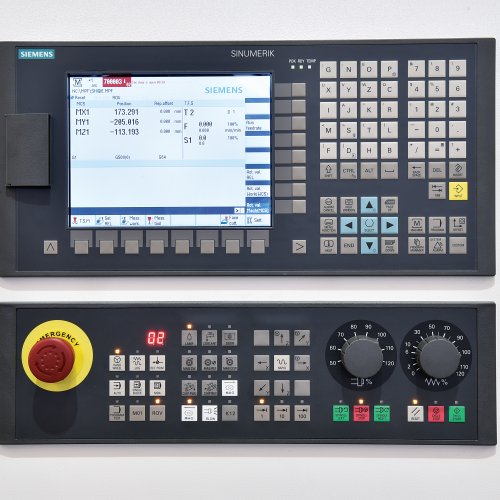

- Siemens 808AD CNC control (Advanced PPU15X)
- Travel X 750mm, Y 500mm , Z 500mm

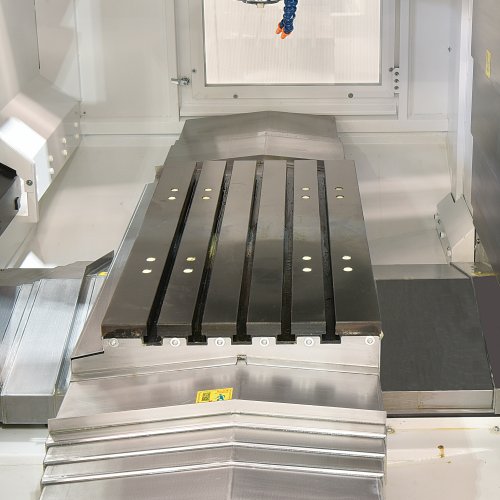

- Table Size 900mm x 500mm
- Table load capacity 350kg

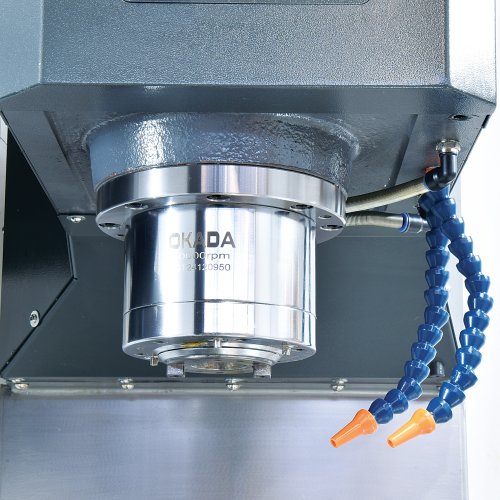

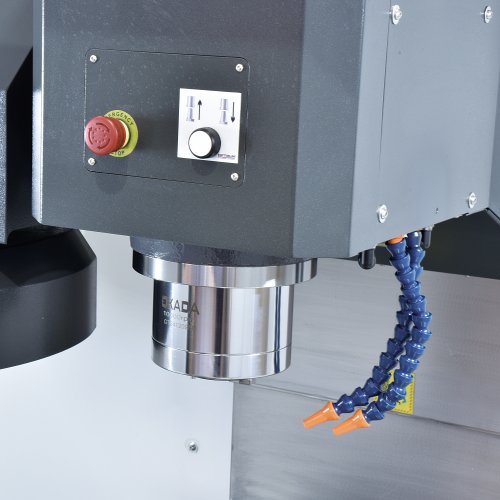

- BT40 - 10,000rpm Spindle

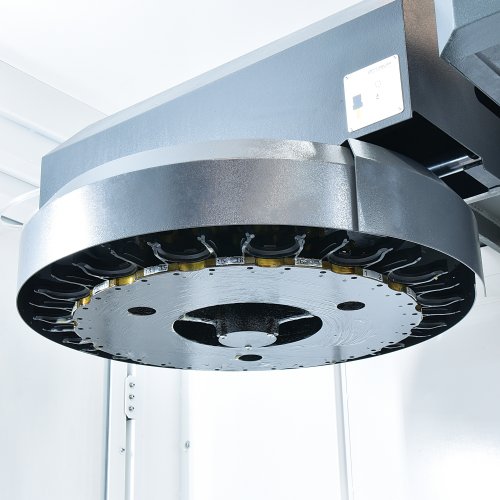

- 16 tool automatic tool change
- 3-Axis linear guide-ways
- Axis servo motor control

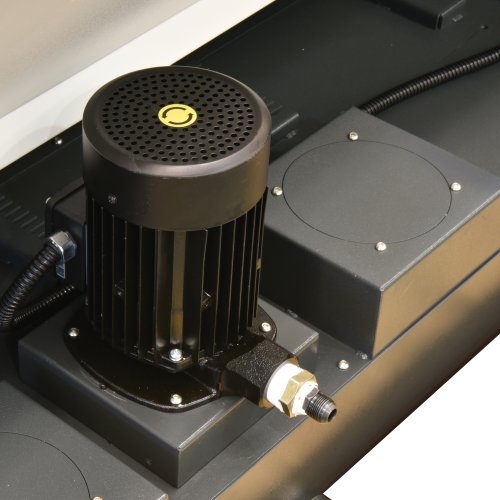

- Flood coolant system
- High output LED work light

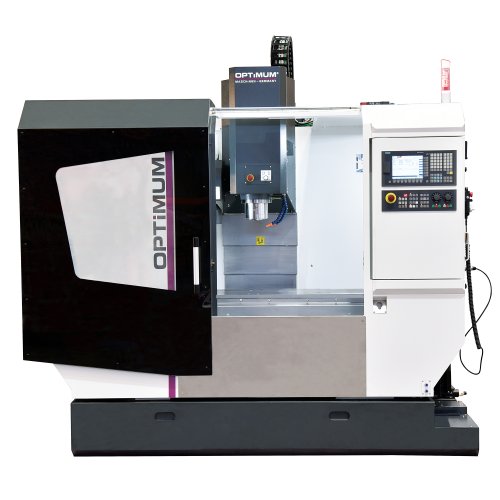

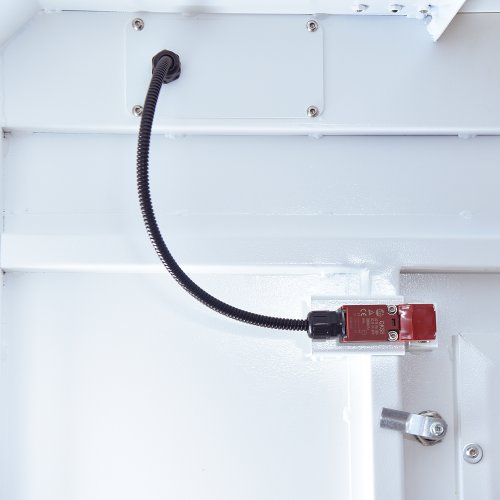

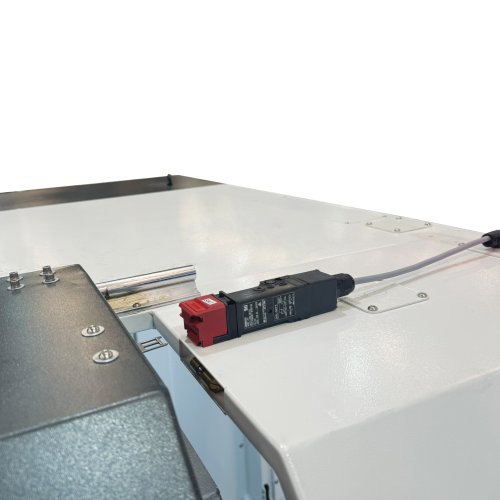

- Full CE Safety enclosure with Safety PLC
- 100-600mm spindle nose to table

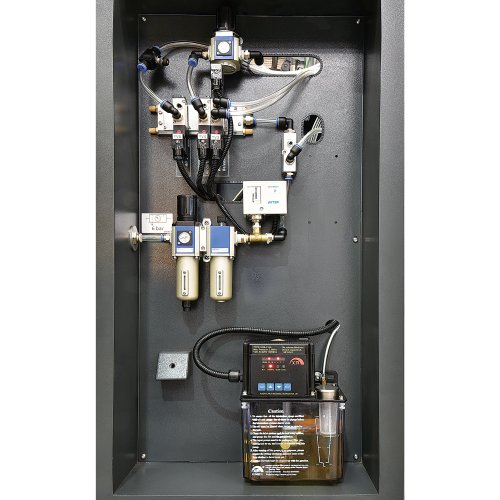

- Central lubrication unit
