Specifications
| ORDER CODE | M8795 |
|---|---|
| MODEL | LG1000AP |
| X Travel | 1000 |
| Y Travel | 510 |
| Z Travel | 630 |
| Table Size | 1150 x 510 |
| Table Capacity | 700 |
| Spindle – Table | 100 - 730 |
| Spindle Taper | BT40 |
| Spindle Speed | 10,000 |
| Spindle Motor | 11 |
| Rapid Traverse | 30 / 30 / 24 |
| Guideways | LMG |
| Tool Arm Type | 24 |
| Control | Hartrol Premium 3 |
| Programming | Hartcam Conversational |

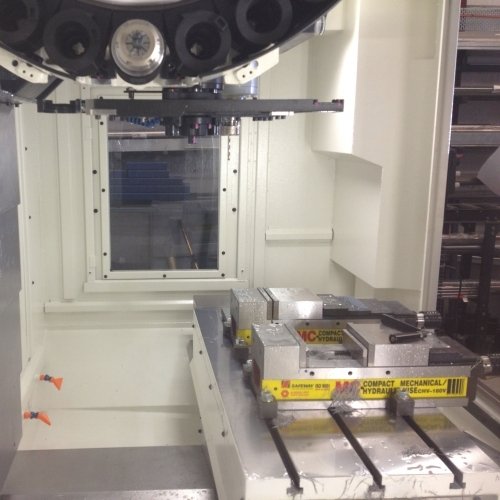

Machine Overview
Basic Specifications
- 1000, 510, 630mm X, Y, Z travels
- 1150 x 510mm table size
- 700kg table load capacity
- 30, 30, 24m/min X, Y, Z rapid feed rates
- 100 – 730mm spindle to table
- 10,000 rpm spindle speed
- 11kW spindle power
- 70Nm spindle torque
- BT40 spindle taper
- High precision wide span linear guide ways

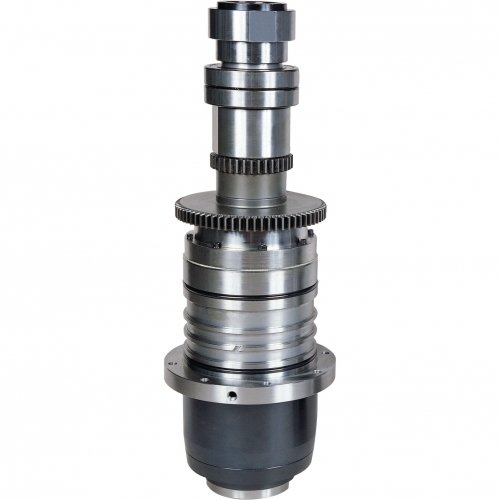

Main Spindle
- 10,000 rpm heavy duty spindle
- 11kW spindle motor
- Air blast through spindle

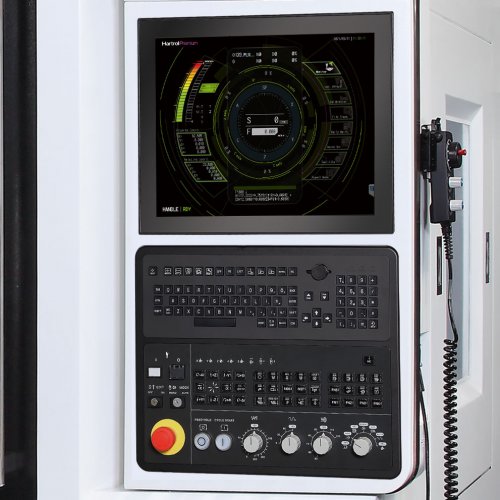

CNC Control
- Hartrol Premium 3 Control
- Hartcam 2.5 Conversational Software
- 15” Touch Screen Colour LCD
- Rigid-synchronised tapping
- Helical interpolation
- High Speed Machining Function
- Ethernet Interface
- USB Port
- RS232 Interface
- Hartrol Enhanced CNC Software
- Spindle Load Monitoring
- Advanced Tool Register
- Advanced Workpiece Co-ordinate System

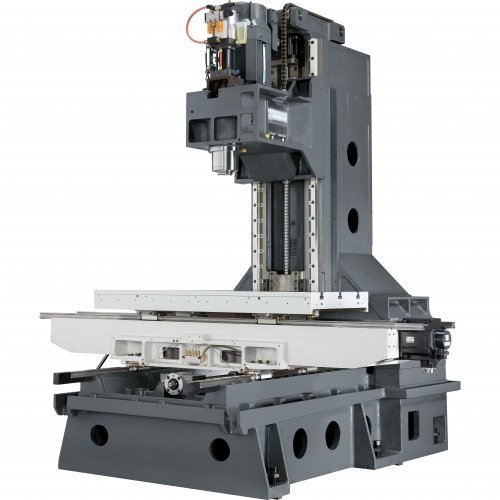

Axis Motors & Drives
- Mitsubishi servo drive amplifiers
- Mitsubishi high torque direct coupled AC digital servo motors
- Mitsubishi absolute position encoders (No Axes limit switches required)
- High precision, wide span linear guide ways
- Fully supported table eliminating overhang
- Large diameter pretensioned precision reciprocating ballscrews
- Automatic lubrication equipment
Tool Changer
- High-speed arm type automatic tool changer

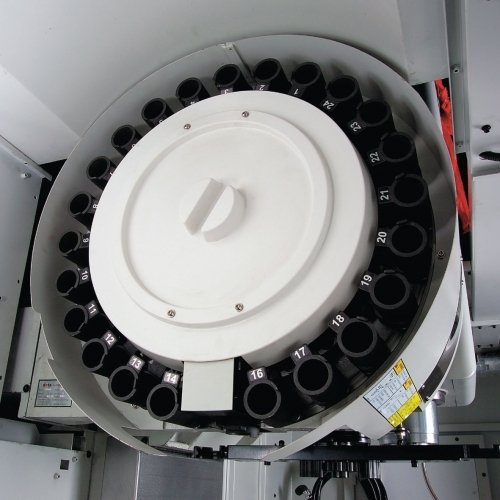

- 24 tool bi-directional magazine
- Side mount fully enclosed tool magazine
Coolant System
- Flood coolant
- High pressure through spindle coolant 20 bar
- Fully enclosed chip & coolant shield
- Coolant Gun
Electrical
- Door safety interlock switch
- Heat exchanger for electrical cabinet
- Line filter
- Transformer
Swarf Removal
- Base chip flushing
- Screw type external chip conveyor
Operation
- Remote MPG (Portable Hand Wheel)
- Control panel with > 90° swivel
- 3 tier operation patrol lamp
- Work light
- Machine operating & maintenance manuals
- Controller manuals on CD
- Electrical schematics
- Tool box
Automation
Control prepared to accept Rotary Table – 4th Axis
