Specifications
| ORDER CODE | M8435 |
|---|---|

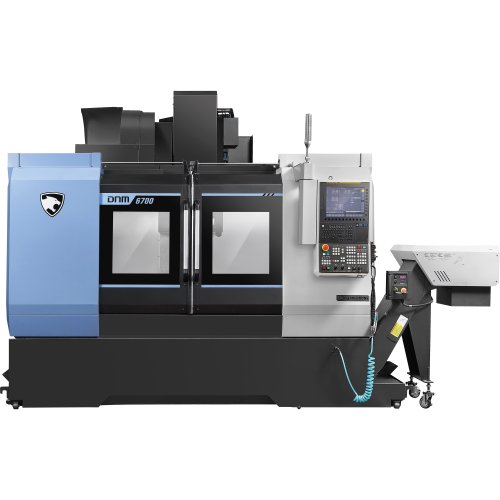

| MODEL | DNM 6700 |
| X Travel | 1300 |
| Y Travel | 670 |
| Z Travel | 625 |
| Table Size | 1500x670 |
| Table Capacity | 1300 |
| Spindle - Table | 150-775 |
| Spindle Taper | BT40 - Big Plus |
| Spindle Speed | 12,000 |
| Spindle Motor | 18.5 |
| Rapid Traverse | 36/36/30 |
| Guideways | Roller LMG |
| Tool Arm Type | 30 |
| Control | Fanuc I Series (0i-Plus) |
| Programming | EZI Guide I Conversational |
Machine Overview
Basic Specifications
- 1300, 670, 625mm X, Y, Z travels
- 1500 x 670mm table size
- 1300kg table load capacity
- 36, 36, 30m/min X, Y, Z rapid feed rates
- 150 – 775mm spindle to table
- 12,000 rpm spindle speed
- 18.5kW spindle power
- 118Nm spindle torque
- BT40 spindle taper
- Dual contact (Big Plus) spindle nose
Main Spindle
- 12,000 rpm heavy duty spindle
- 18.5kW Fanuc direct drive spindle motor
- Air blast through spindle
- Spindle oil cooler
- Spindle air curtain
Axis Motors & Drives
- Fanuc Servo Drive Amplifiers
- Fanuc high Torque direct coupled AC Digital servo motors
- Fanuc absolute position encoders (No Axes limit switches required)
- Highly rigid, precision, wide span roller linear guideways
- Fully supported table eliminating overhang
- Large diameter pretensioned precision reciprocating ballscrews
- Automatic lubrication equipment

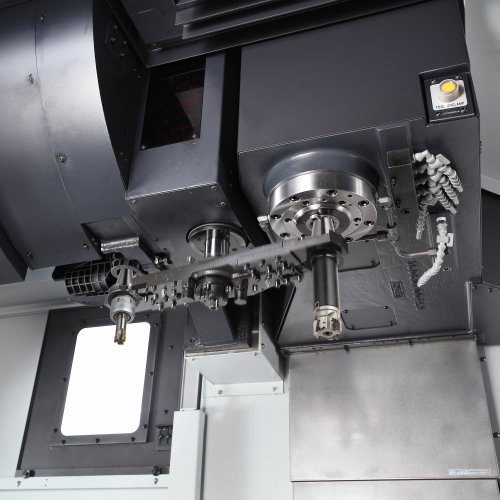

Tool Changer
- High-speed arm type automatic tool changer 1.3 second tool to tool 0
- 30 tool bi-directional magazine
- Side mount fully enclosed tool magazine
Coolant System
- Flood coolant
- Box type screen filter
- High pressure through spindle coolant 20 bar x 20 l/min
- Fully enclosed chip & coolant shield
- 485L coolant tank & chip pan
Electrical
- Door safety interlock switch
- Heat exchanger for electrical cabinet
- Line filter
- Transformer
Swarf Removal
- Twin screw type internal chip conveyors
- Link type External chip conveyor
Operation
- Remote MPG (Portable Hand Wheel)
- Control panel with > 90° swivel
- 3 tier operation patrol lamp
- Work light
- Operating & maintenance manuals
- Electrical schematics
- Tool box
CNC Control
- DN Solutions Fanuc I Series (0i-Plus) CNC Controller
- Ezi Guide i Conversational software
- Fanuc 15” Colour LCD - iHMi
- Rigid-synchronised tapping
- Helical interpolation
- Artificial intelligence contour control (AICC – 200 Block)
- Fine surface machining function
- Custom Macro B
- USB & PCMCIA Card Slot
- Ethernet Interface
- RS232 Interface
- Easy operation package including:
- Graphical tool table
- Self diagnostic ATC recovery
- Onboard G & M code assistance
- + more
Automation
Control prepared to accept Rotary Table – 4th Axis
Local Service and Support
- Commissioning & Testing Included
- Comprehensive Operator Training Included
- Hare and Forbes In House Service And Applications Staff
- Ongoing Support For Life Of The Machine
