Optimum CNC Lathe L40 OPTi-Turn

L771

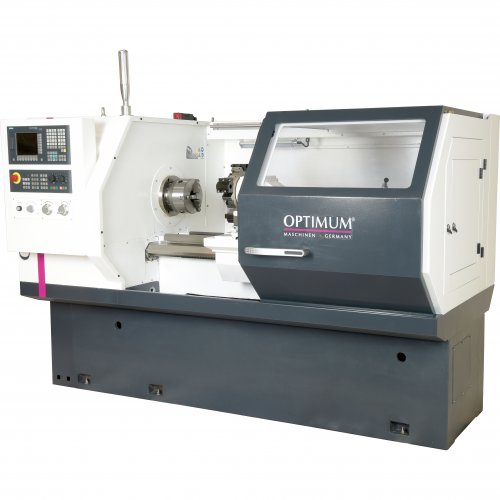

Right View Door Open

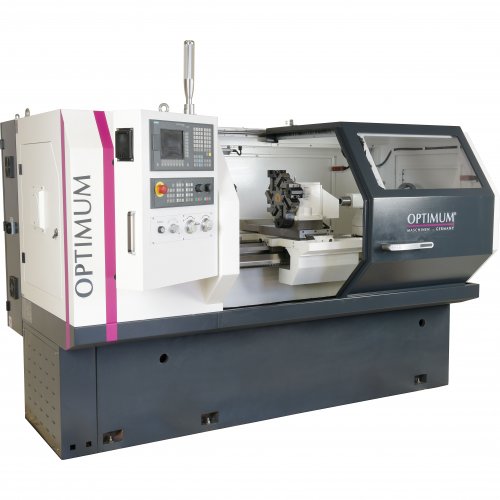

Main with Door Open

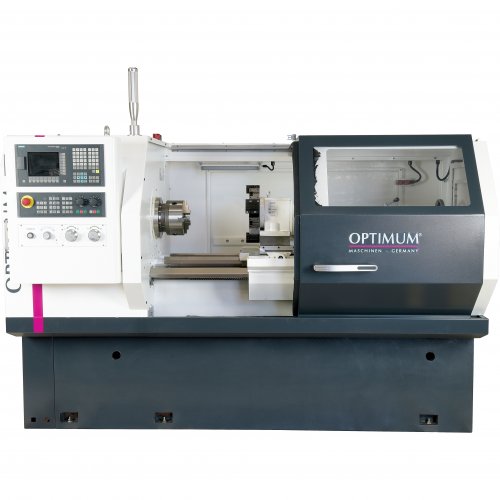

Front View Door Open

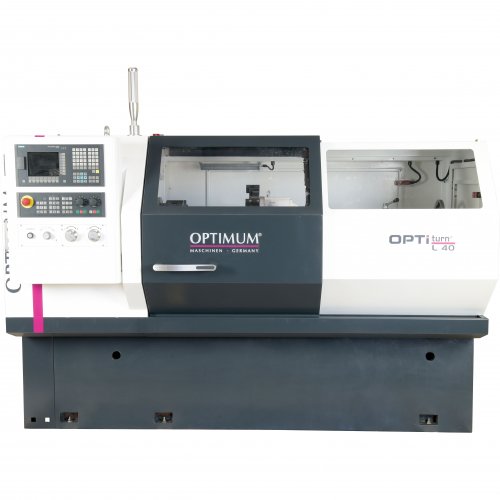

Front View Door Closed

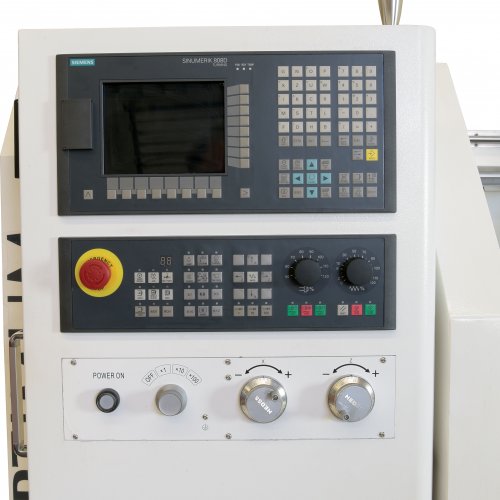

Control Panel

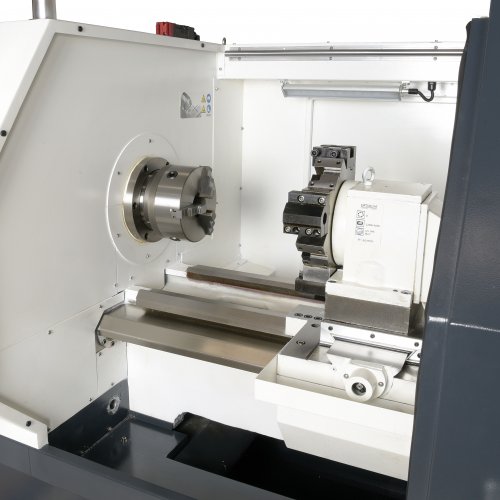

Chuck View

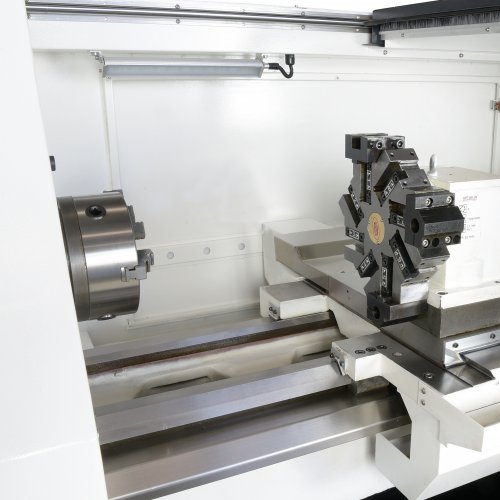

Chuck and Tool Changer View 2

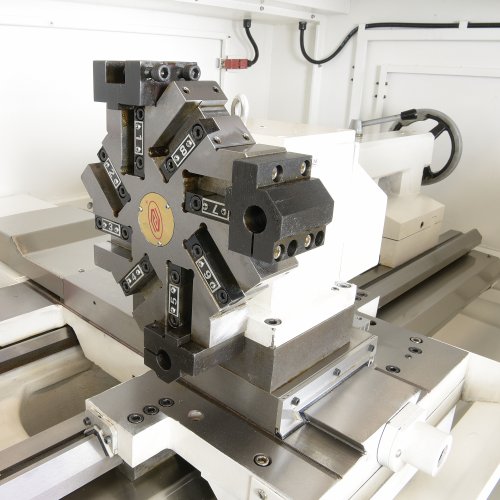

Tool Change

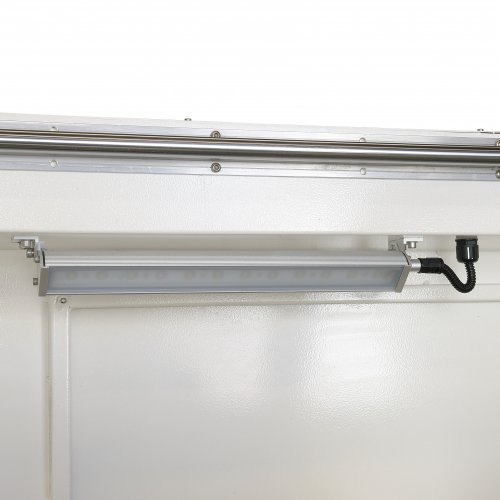

Light

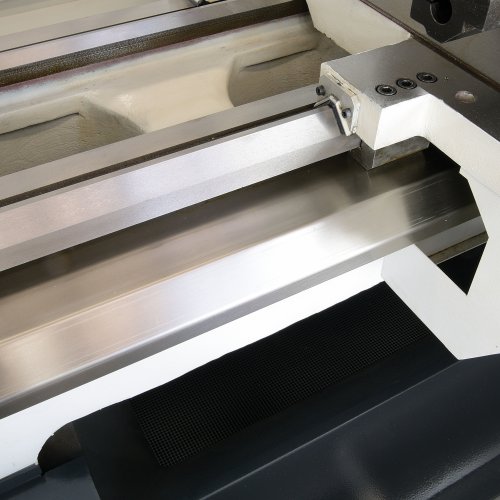

Leadscrew Covers

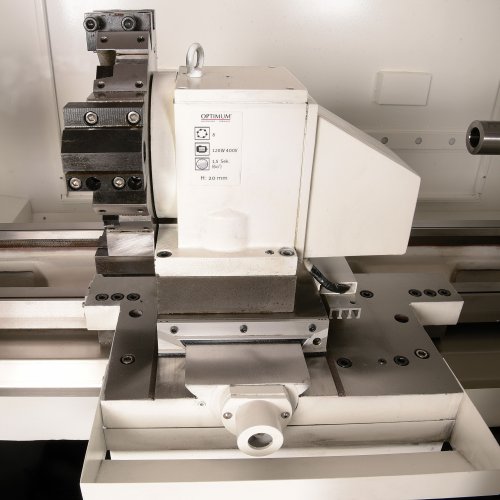

Tool Changer Side View

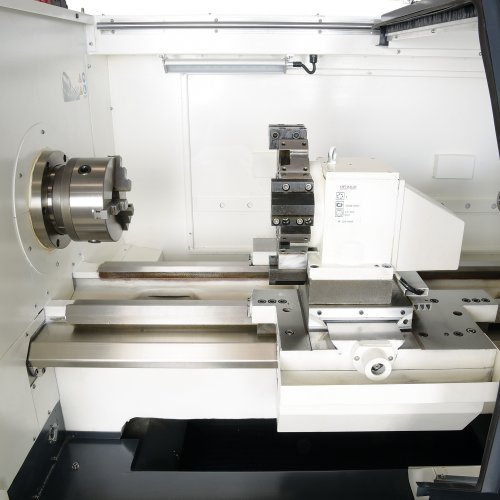

Chuck and Tool Changer Front View

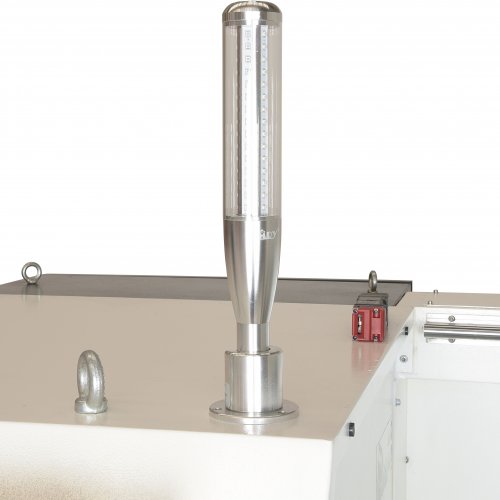

Safety Light

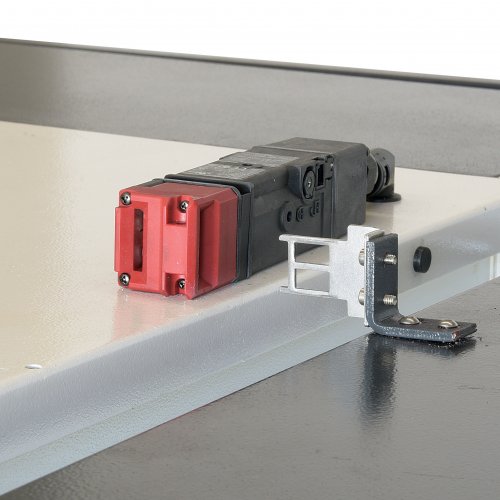

Micro Switch on Main Door

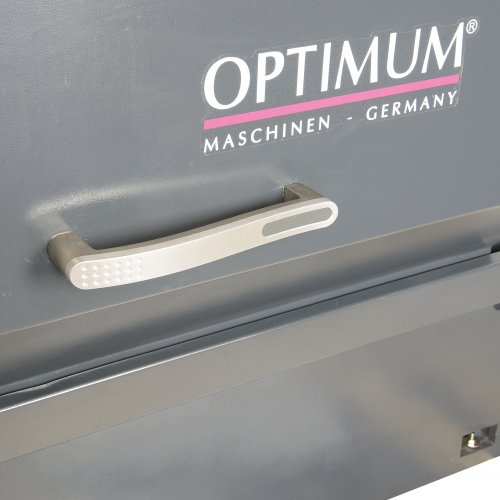

Heavy Duty Door Handle

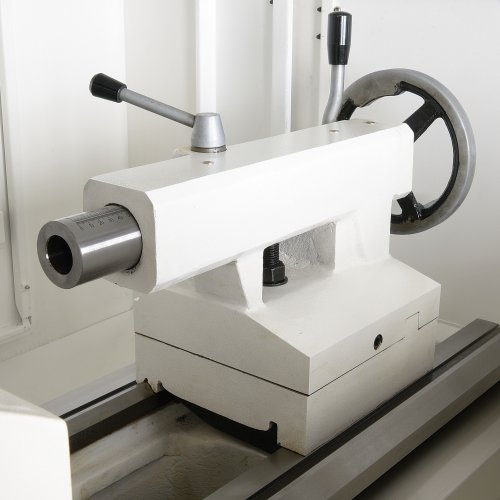

Tailstock

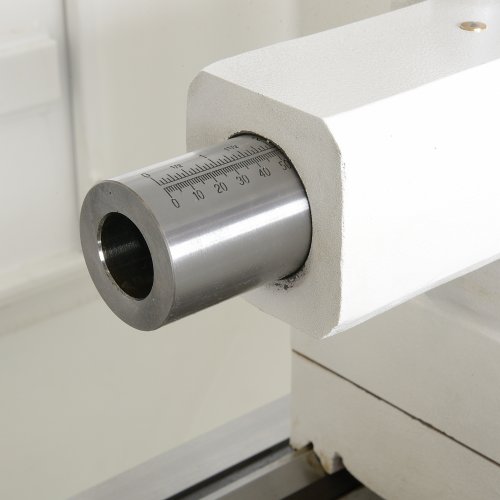

Tailstock Quill Graduations

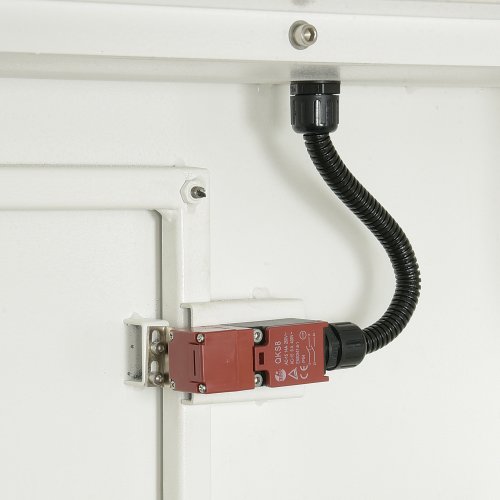

Micro Switch on Rear Door

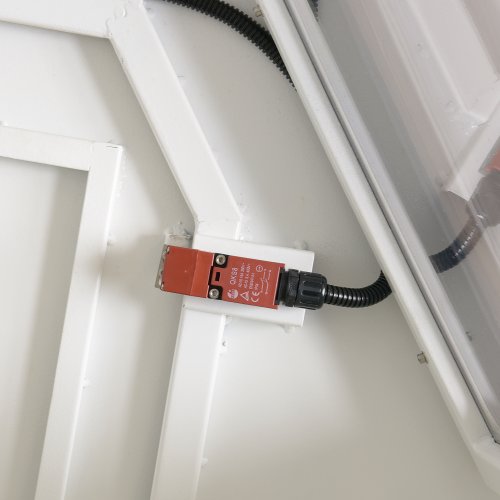

Micro Switch on Side Door

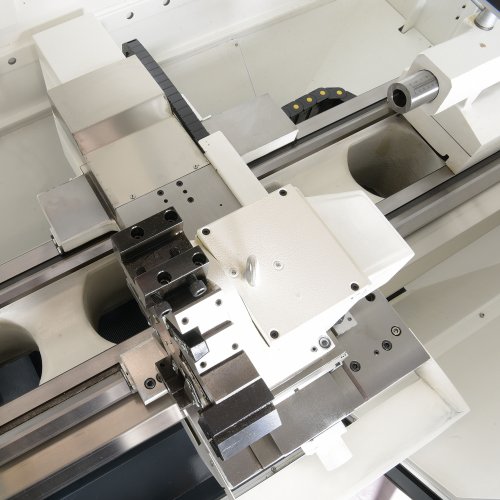

Top View of Tool Changer

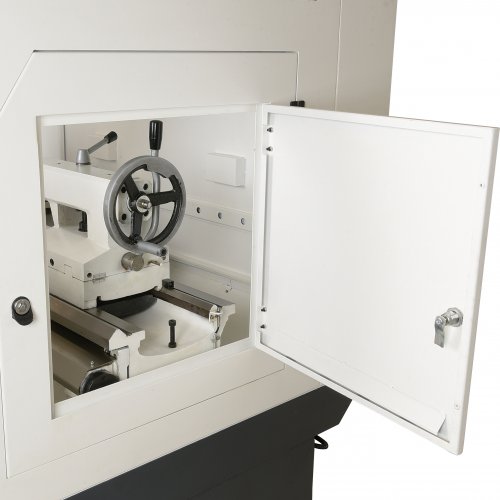

Side Door

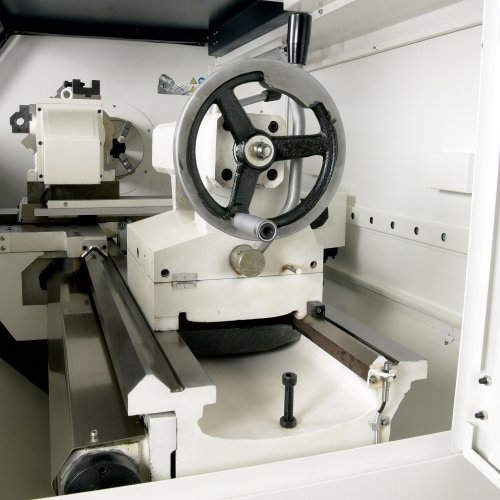

Tailstock End View

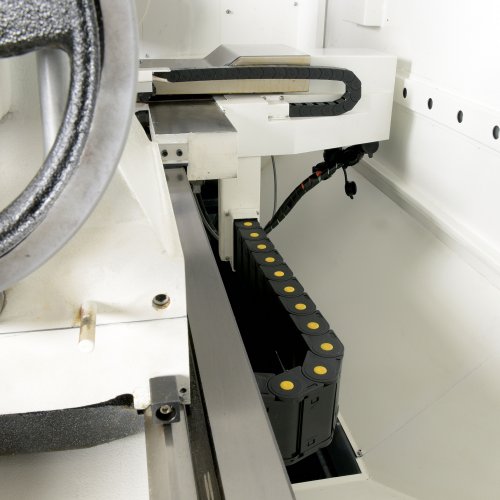

Cable Track

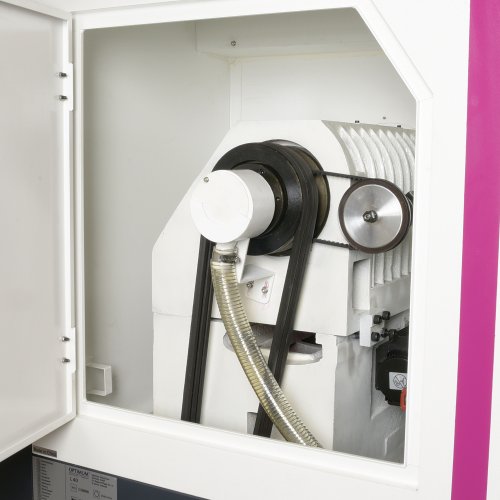

Headstock End View

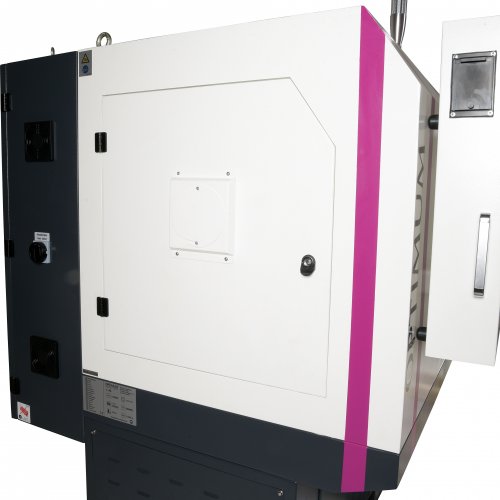

Headstock End View Door Closed

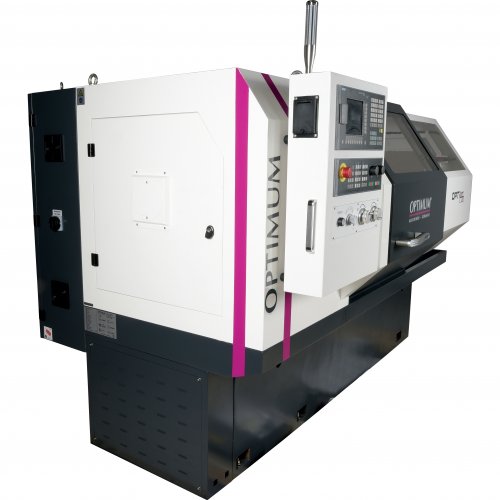

Left View

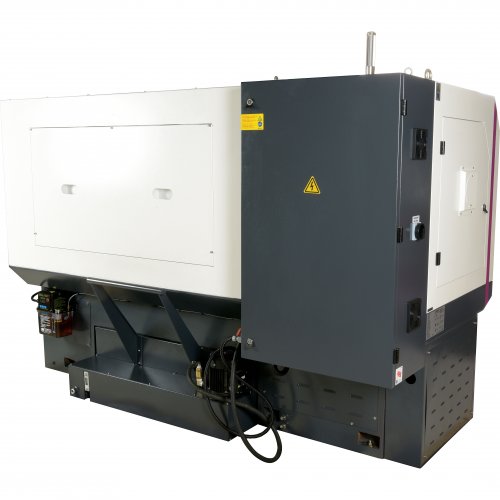

Rear Right View

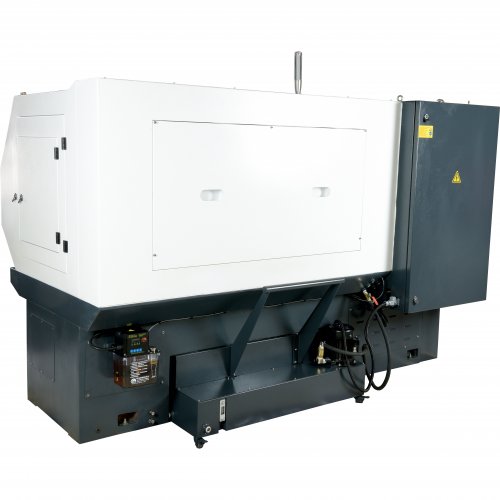

Rear Left View

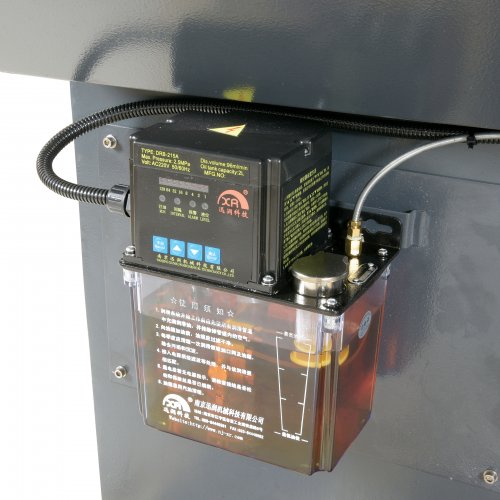

Lubrication System
Request a Quote

Specifications

ORDER CODEL771
MODELL40 OPTi-Turn
Tool Height20
Maximum Turning Length900
Maximum Turning Diameter400
Distance Between Centres1000
Swing Over Bed400
Centre Height200
Bed Width320
Spindle Bore60
Spindle TaperA2-6
Turning Over Cross Slide240
TailStock Taper4
Tailstock Travel120
Spindle Speed Range25 - 2500
Tool Position Number8
Motor Power7.5 / 10
Voltage / Amperage415
Nett Weight2400

Machine Overview

Designed and Engineered in Germany the OPTIMUM CNC range is a market leader in Europe and is now available in Australia through Hare and Forbes Machinery House. Offering exceptional value for money the OPTIMUM range can have you set up for in house CNC machining at a fraction of the financial outlay previously required.

Features

  • Siemens 808D CNC control
  • 8 station auto turret
  • 20mm Square shank OD Tooling
  • 25mm ID Boring holders
  • 2500rpm main spindle speed
  • 200mm 3 jaw chuck A2-6 mount.
  • 60mm Spindle bore
  • 400mm Swing over bed
  • Tailstock with MT4
  • 2-Axis servo motor control
  • Constant surface speed control
  • Flood coolant system
  • Full CE Safety enclosure with Safety PLC
  • Central lubrication unit

Standard Inclusions

  • 2 x Boring Sleeve 20 x 25mm
  • 2 x Boring Sleeve 16 x 25mm
  • 1 x Boring Sleeve 12 x 25mm
  • 1 x Boring Sleeve 10 x 25mm
