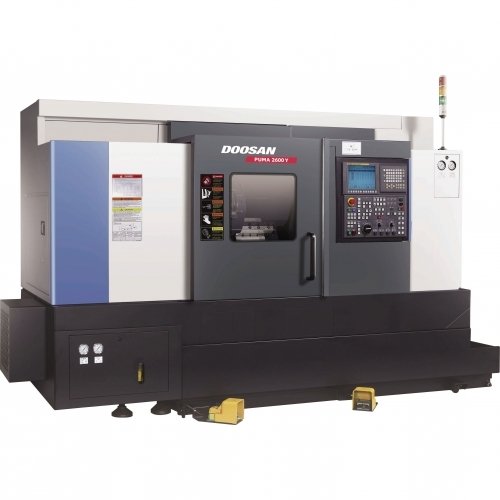

PUMA 2600SY - Y Axis & Sub Spindle CNC Turning Centre
Specifications
| ORDER CODE | L7226 |
|---|---|
| MODEL | PUMA 2600SY |
| Swing | 780 |
| Max Turning Diameter | 376 |
| Turning Length | 725 |
| Chuck Diameter | 250 |
| Bar Diameter Capacity | 81 |
| Tool Stations | 12/24 |
| Spindle Speed | 3500 |
| Spindle Motor | 22 |
| Guideways | Box Guideway |
| Control | Doosan Fanuc I Series |
| Programming | EZI Guide I Conversational |
| C Axes Resolution | 0.001 |
| Milling Speed | 5000 |
| Milling Collets | ER32 |
| Sub Chuck Diameter | 150 |
| Y Axis Travel | 105 (±52.5) |
Machine Overview
Basic Specifications
- 780mm Swing Over Bed
- 630mm Swing Over Saddle
- 760mm Turning Length
- 376mm Turning Ø
- 105mm (±52.5mm) Y Axis Travel
- 3600 (0.0010 Resolution) C Axes, Main & Sub Spindles

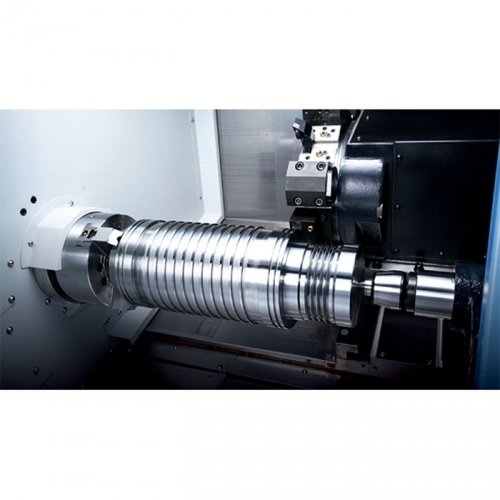

- 220kg Main Spindle Capacity, 710kg Shaft Work Capacity
Main Spindle
- 81mm Bar Capacity
- 250mm Ø Hydraulic Chuck
- 3500RPM Spindle Speed
- 22kW Spindle Power
- 240Nm Spindle Torque
Sub Spindle
- 50mm Bar Capacity
- 150mm Ø Hydraulic Chuck
- 4500RPM Spindle Speed
- 7.5kW Spindle Power
- 85Nm Spindle Torque

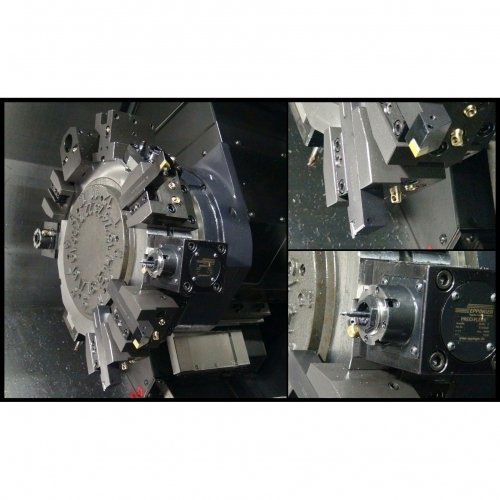

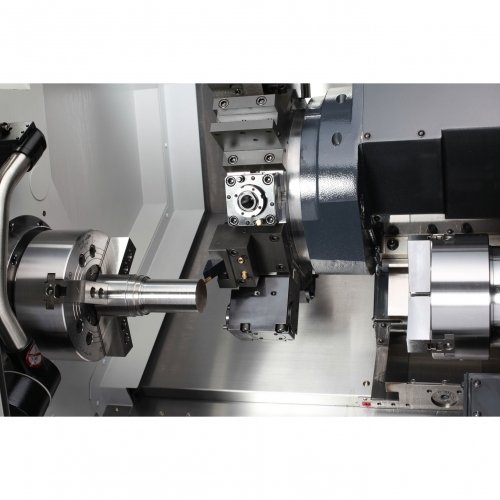

Turret
- BMT 65 Tool Mounting
- 5000RPM Live Tool Speed
- 5.5kW Live Tool Power
- 47.1Nm Live Tool Torque
- 24 Position / 12 Station Turret
- 20mm Square / 40 & 25mm Ø Tool Capacity
- ER32 Live Tool Collet Size
- Eppinger Preci-Flex Tooling System
CNC Control
- Doosan Fanuc I Series (0i-Plus) CNC Controller
- 15” Colour LCD Monitor
- Rigid-synchronised tapping
- Custom Macro B
- Ethernet Interface
- RS232 Interface
- USB & PCMCIA Memory Card Slot
- Doosan Ezi Guide “I” Conversational software:
- Graphical Turning Cycles
- Graphical Milling Cycles
- Full 3D Graphical Simulation
- Onboard G & M code assistance
- + more
Standard Equipment - Included
- 3 Jaw Hydraulic Power Chucks
- Chuck Cleaning Air Blast
- Eppinger rotary tool holders with Preci-Flex adapter set
- Coolant supply equipment
- Foot switches
- Transformer
- Full enclosure chip and coolant shield with front door interlock
- Hand tool kit
- Automatic lubrication equipment
- Comprehensive manuals incorporating, Operation, Maintenance, Programming, Spare Parts Diagrams, Hydraulic Schematics, Electrical Schematics and Ladder Diagrams.
- Safety name plates / tags where required
- Risk assessment
- Work light
Optional Equipment Included
- Chuck open close confirmation proximity switches
- Chip Conveyor (Side Discharge, Hinged Belt)
- Auto Tool Setter (Hydraulically operated)
- Coolant Oil Skimmer
- 7 Bar High Pressure Coolant
- Barfeed Interface
- Parts Catcher with Parts Conveyor
- Sub Spindle Work Ejector
- Chuck Cleaning Air Blast
Standard Turret Tool Holder Package Included
- 1 x OD Tool Holder Main (R & L)
- 1 x DBL OD Tool Holder Main/Sub (R & L)
- 1 x DBL OD Tool Holder Main (R & L)
- 1 x DBL OD Tool Holder Sub (R & L)
- 1 x ID Tool Holder Main
- 1 x Triple ID Tool Holder
- 1 x Cut Off Tool Holder
- 1 x U Drill Cap Main
- 2 x Straight Milling Unit
- 3 x Angular Milling Unit
- 1 x Eppinger “Preci-Flex” Kit
- 1 x Boring Sleeve Kit Main
- 1 x Boring Sleeves Kit Sub
- 1 x U Drill Sleeve Kit Main
- 1 x U Drill Sleeve Kit Sub
- 1 x ER 32 Milling Collet Set
- 1 x Hard & Soft Jaws Main and Sub
Local Service and Support
- Commissioning & Testing Included
- Comprehensive Operator Training Included
- Hare and Forbes In House Service And Applications Staff
- Ongoing Support For Life Of The Machine
