Specifications
| ORDER CODE | L7130 |
|---|---|
| MODEL | LEO 1600 |
| Swing | 470 |
| Max Turning Diameter | 320 |
| Turning Length | 303 |
| Chuck Diameter | 150 |
| Bar Diameter Capacity | 45 |
| Tool Stations | 12 |
| Spindle Speed | 4000 |
| Spindle Motor | 7.5 |
| Guideways | LMG |
| Control | Doosan Fanuc I Series |
| Programming | Manual Guide 0i |

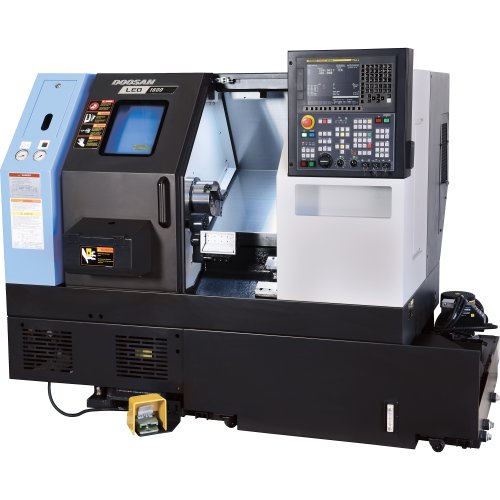

Machine Overview
Basic Specifications
- 470mm Swing Over Bed
- 300mm Swing Over Saddle
- 303mm Turning Length
- 320mm Turning Ø
- 70kg Main Spindle Capacity, 150kg Shaft Work Capacity
Main Spindle
- 45mm Bar Capacity

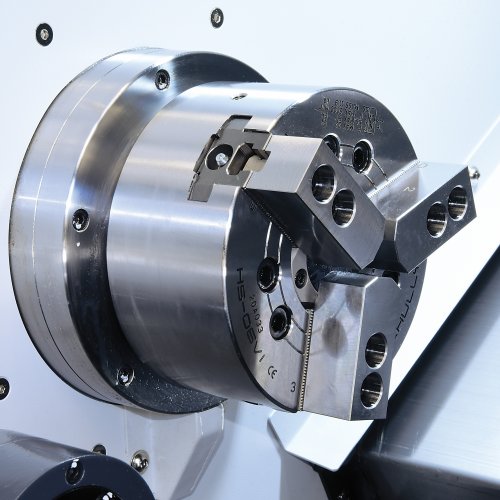

- 150mm Ø Hydraulic Chuck
- 4000RPM Spindle Speed
- 7.5kW Spindle Power
- 71Nm Spindle Torque

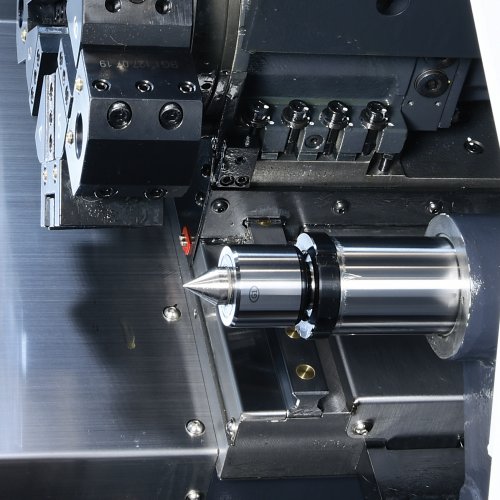

Tailstock
- MT4
- 65mm Quill Ø
- 80mm Quill Travel
Turret
- DI Base Holder Tool Mounting
- 12 Station Turret
- 20mm Square / 32mm Ø Tool Capacity

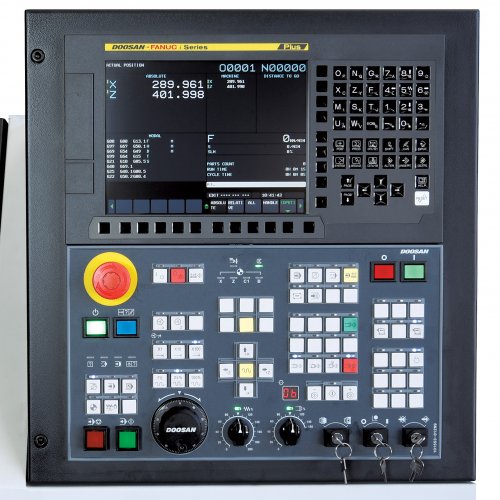

CNC Control
- Doosan Fanuc I Series CNC Controller
- 10.4” Colour LCD Monitor
- Rigid-synchronised tapping
- Custom Macro B
- Ethernet Interface
- RS232 Interface
- USB & PCMCIA Memory Card Slot
- Manual Guide “0i” Conversational software:
- Canned Turning Cycles
- Onboard G & M code assistance
- + more
Standard Equipment - Included
- 3 Jaw Hydraulic Power Chuck
- Coolant supply equipment
- Foot switches
- Transformer
- Full enclosure chip and coolant shield with front door interlock
- Hand tool kit
- Automatic lubrication equipment
- Comprehensive manuals incorporating, Operation, Maintenance, Programming, Spare Parts Diagrams, Hydraulic Schematics, Electrical Schematics and Ladder Diagrams.
- Safety name plates / tags where required
- Risk assessment
- Work light
Optional Equipment Included
- Chuck open close confirmation proximity switches
- Chip Conveyor (Side Discharge, Hinged Belt)
- Coolant Oil Skimmer
- High Pressure Coolant

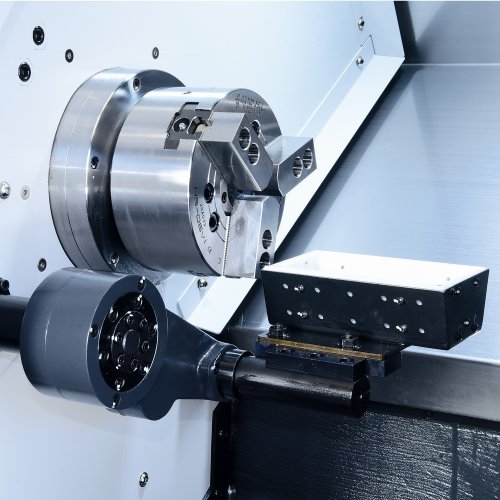

- Parts Catcher with Parts Box
- Barfeed Interface
Standard Turret Tool Holder Package Included
- 8 x OD Tool Holder
- 3 x ID Tool Holder
- 1 x Face Tool Holder
- 1 x Hard & Soft Jaws
Local Service and Support
- Commissioning & Testing Included
- Comprehensive Operator Training Included
- Hare and Forbes In House Service And Applications Staff
- Ongoing Support For Life Of The Machine
