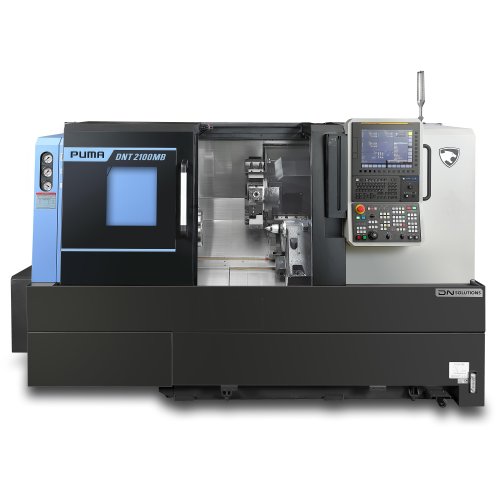

Specifications
| ORDER CODE | L7102 |
|---|---|
| MODEL | PUMA DNT2100M |
| Swing | 650 |
| Max Turning Diameter | 320 |
| Turning Length | 513 |
| Chuck Diameter | 210 |
| Bar Diameter Capacity | 65 |
| Tool Stations | 12 |
| Spindle Speed | 4500 |
| Spindle Motor | 18.5 |
| Guideways | Box Guideway |
| Control | DN Solutions Fanuc I Series (0i-Plus) |
| Programming | EZI Guide I Conversational |
| C Axis Resolution | 0.001 |
| Milling Speed | 5000 |
| Milling collets | ER25 |
Machine Overview
Basic Specifications
- 650mm Swing Over Bed
- 460mm Swing Over Saddle
- 513mm Turning Length
- 320mm Turning Ø
- 3600 (0.0010 Resolution) C Axis
- 150kg Main Spindle Capacity, 300kg Shaft Work Capacity

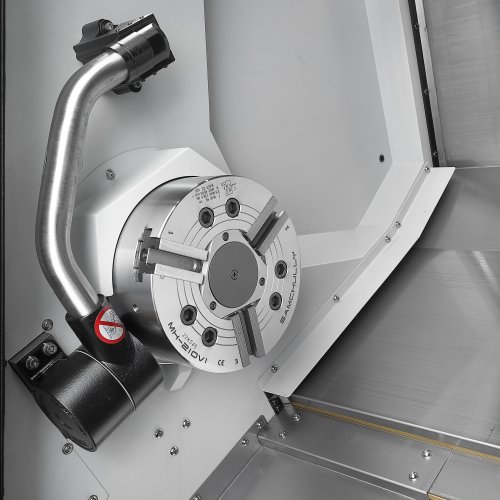

Main Spindle
- 65mm Bar Capacity
- 200mm Ø Hydraulic Chuck
- 4500RPM Spindle Speed
- 18.5kW Spindle Power
- 328Nm Spindle Torque
Tailstock
- MT4
- 80mm Quill Ø
- 100mm Quill Travel
- Programmable Positioning

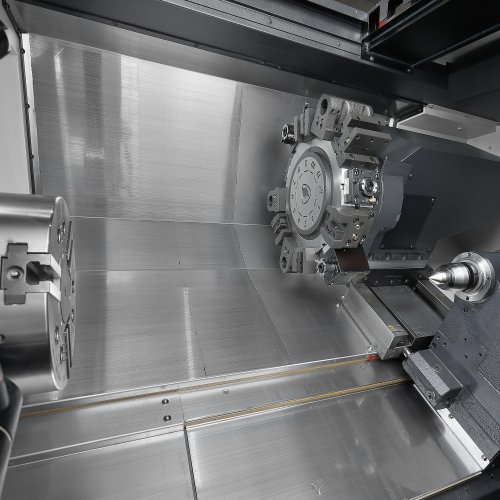

Turret
- BMT 55 Tool Mounting
- 5000RPM Live Tool Speed
- 5.5kW Live Tool Power
- 42Nm Live Tool Torque

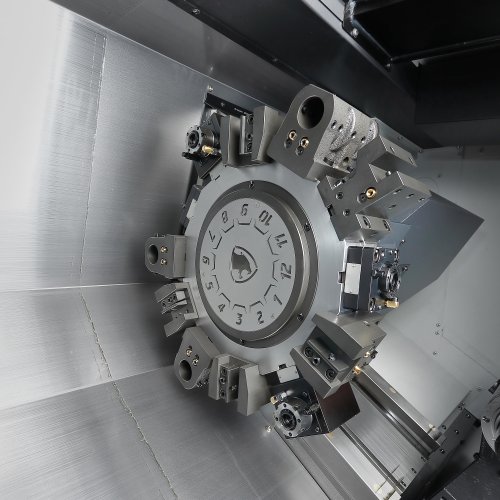

- 12 Station Turret
- 25mm Square / 40mm Ø Tool Capacity
- ER25 Live Tool Collet Size
- Eppinger Preci-Flex Tooling System
CNC Control
- Doosan Fanuc I Series (0i-Plus) CNC Controller
- 15” Colour LCD Monitor
- Rigid-synchronised tapping
- Custom Macro B
- Ethernet Interface
- RS232 Interface
- USB & PCMCIA Memory Card Slot
- Doosan Ezi Guide “I” Conversational software:
- Graphical Turning Cycles
- Graphical Milling Cycles
- Full 3D Graphical Simulation
- Onboard G & M code assistance
- + more
Standard Equipment - Included
- 3 Jaw Hydraulic Power Chuck
- Chuck Cleaning Air Blast
- Eppinger rotary tool holders with Preci-Flex adapter set
- Coolant supply equipment
- Foot switches
- Transformer
- Full enclosure chip and coolant shield with front door interlock
- Hand tool kit
- Automatic lubrication equipment
- Comprehensive manuals incorporating, Operation, Maintenance, Programming, Spare Parts Diagrams, Hydraulic Schematics, Electrical Schematics and Ladder Diagrams.
- Safety name plates / tags where required
- Risk assessment
- Work light
Optional Equipment Included
- Chuck open close confirmation proximity switches
- Chip Conveyor (Side Discharge, Hinged Belt)
- Auto Tool Setter (Hydraulically operated)
- Coolant Oil Skimmer
- 7 Bar High Pressure Coolant
- Parts Catcher with Parts Box
- Barfeed Interface
- Programmable Tailstock
Standard Turret Tool Holder Package Included
- 4 x OD Tool Holder (R & L)
- 3 x ID Tool Holder
- 1 x Face Tool Holder (R & L)
- 1 x U Drill Cap
- 2 x Straight Milling Unit
- 2 x Angular Milling Unit
- 1 x Boring Sleeve Kit
- 1 x U Drill Sleeve Kit
- 1 x Preci-Flex Adapter Kit
- 1 x ER 25 Milling Collet Set
- 1 x Hard & Soft Jaws
Local Service and Support
- Commissioning & Testing Included
- Comprehensive Operator Training Included
- Hare and Forbes In House Service And Applications Staff
- Ongoing Support For Life Of The Machine
