Specifications
| ORDER CODE | L7064 |
|---|---|
| MODEL | LYNX 2100LSYB |
| Swing | 600 |
| Max Turning Diameter | 300 |
| Turning Length | 510 |
| Chuck Diameter | 200 |
| Bar Diameter Capacity | 65 |
| Tool Stations | 12/24 |
| Spindle Speed | 4500 |
| Spindle Motor | 15 |
| Guideways | LMG |
| Control | Doosan Fanuc I Series (0i-Plus) |
| Programming | EZI Guide I Conversational |
| C Axes Resolution | 0.001 |
| Milling Speed | 6000 |
| Milling Collets | ER20 |
| Sub Chuck Diameter | 127 |
| Y Axis Travel | 105 (±52.5) |

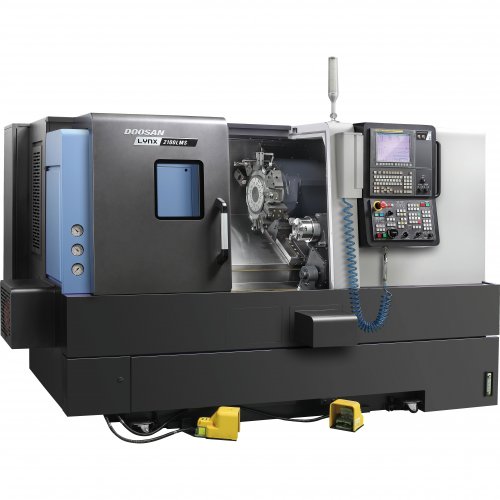

Machine Overview

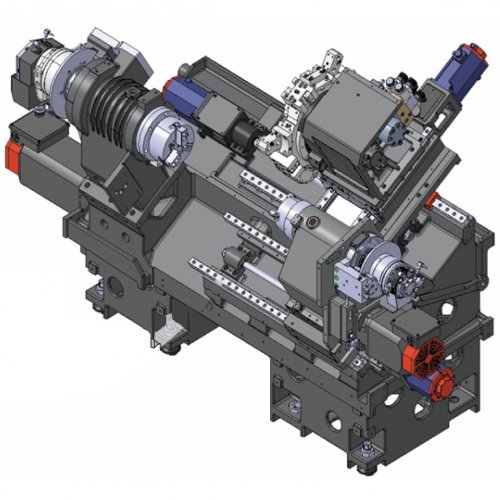

Overview
- Basic Specifications
- 600mm Swing Over Bed
- 400mm Swing Over Saddle
- 510mm Turning Length
- 300mm Turning Ø
- 105mm (±52.5mm) Y Axis Travel

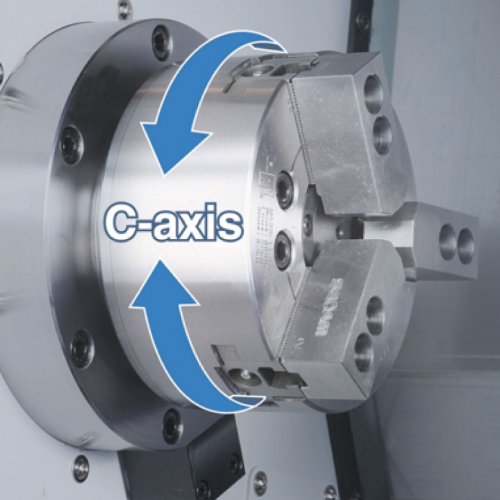

- 360deg (0.001deg Resolution) C Axes, Main & Sub Spindles
- 150kg Main Spindle Capacity

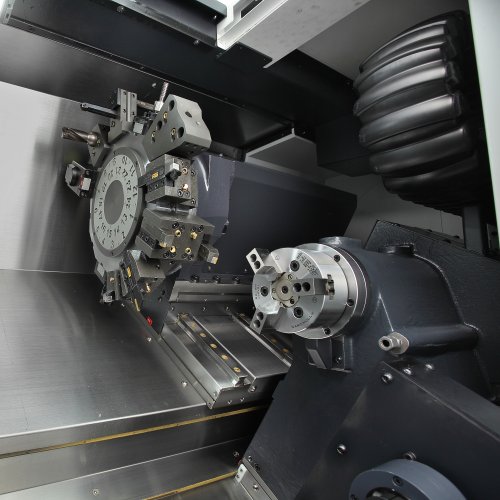

Main Spindle
- 65mm Bar Capacity
- 200mm Ø Hydraulic Chuck
- 4500RPM Spindle Speed
- 15kW Spindle Power
- 169Nm Spindle Torque

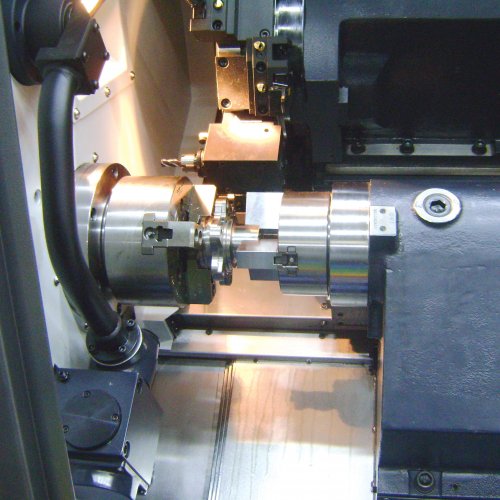

Sub Spindle
- 35mm Bar Capacity
- 127mm Ø Hydraulic Chuck
- 6000RPM Spindle Speed
- 5.5kW Spindle Power
- 46Nm Spindle Torque

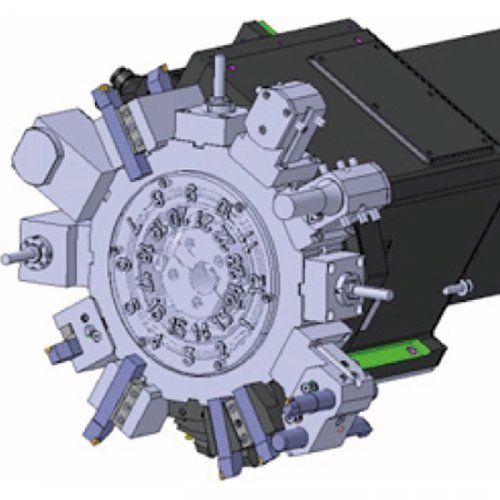

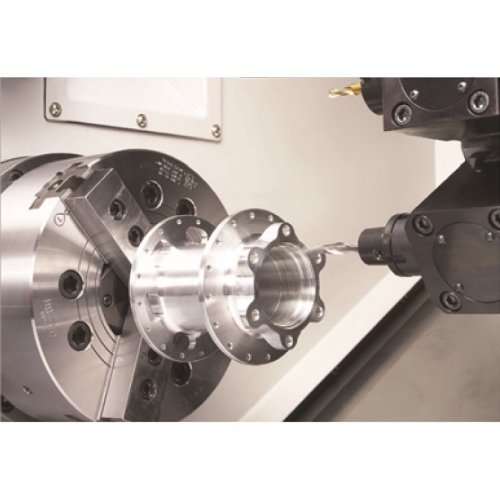

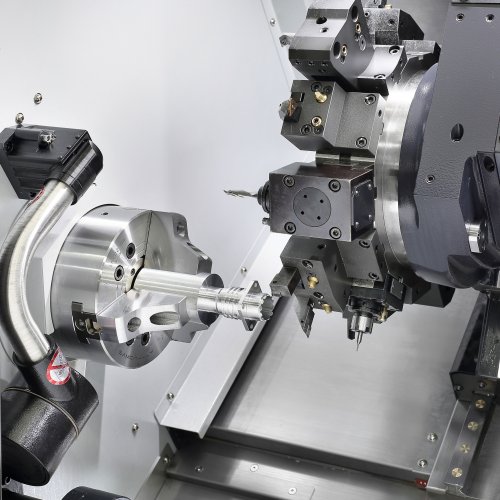

Turret
- BMT 45 Tool Mounting
- 6000RPM Live Tool Speed
- 3.7kW Live Tool Power
- 23.5Nm Live Tool Torque
- 24 Position / 12 Station Turret
- 20mm Square / 32 & 20mm Ø Tool Capacity
- ER20 Live Tool Collet Size
- Eppinger Preci-Flex Tooling System
CNC Control
- Doosan Fanuc I Series (0i-Plus) CNC Controller
- 15" Colour LCD Monitor
- Rigid-synchronised tapping
- Custom Macro B
- Ethernet Interface
- RS232 Interface
- USB & PCMCIA Memory Card Slot
- Doosan Ezi Guide "I" Conversational software:
- Graphical Turning Cycles
- Graphical Milling Cycles
- Full 3D Graphical Simulation
- Onboard G & M code assistance
- + more
Standard Equipment - Included
- 3 Jaw Hydraulic Power Chucks
- Grease Cartridge Auto Lubrication System
- Chuck Cleaning Air Blast
- Eppinger rotary tool holders with Preci-Flex adapter set
- Coolant supply equipment
- Foot switches
- Transformer
- Full enclosure chip and coolant shield with front door interlock
- Hand tool kit
- Automatic lubrication equipment
- Comprehensive manuals incorporating, Operation, Maintenance, Programming, Spare Parts Diagrams, Hydraulic Schematics, Electrical Schematics and Ladder Diagrams.
- Safety name plates / tags where required
- Risk assessment
- Work light
Optional Equipment Included
- Chuck open close confirmation proximity switches
- Chip Conveyor (Side Discharge, Hinged Belt)
- Auto Tool Setter (Hydraulically operated)
- 7 Bar High Pressure Coolant
- Barfeed Interface
- Parts Catcher with Parts Conveyor
- Sub Spindle Work Ejector
- Chuck Cleaning Air Blast
- Auto Power Off Function
Standard Turret Tool Holder Package Included
- 1 x OD Tool Holder Main (R & L)
- 1 x DBL OD Tool Holder Main/Sub (R & L)
- 1 x DBL OD Tool Holder Main (R & L)
- 1 x DBL OD Tool Holder Sub (R & L)
- 1 x ID Tool Holder Main
- 1 x Double ID Tool Holder Sub
- 1 x Triple ID Tool Holder
- 1 x Face Tool Holder Main (R & L)
- 1 x Cut Off Tool Holder
- 1 x U Drill Cap Main
- 1 x U Drill Cap Sub
- 2 x Straight Milling Unit
- 1 x Angular Milling Unit
- 1 x Offset Angular Milling Unit
- 1 x Eppinger "Preci-Flex" Kit
- 1 x Boring Sleeve Kit Main
- 1 x Boring Sleeves Kit Sub
- 1 x U Drill Sleeve Kit
- 1 x ER 20 Milling Collet Set
- 1 x Hard & Soft Jaws Main and Sub
Local Service and Support
- Commissioning & Testing Included
- Comprehensive Operator Training Included
- Hare and Forbes In House Service And Applications Staff
- Ongoing Support For Life Of The Machine
