VCF Series
Travelling Column 5 Axis Machining Centres
VCF 850II series is a versatile, multi-purpose multi axis vertical machining center suitable for a wide range of machining applications. The upgraded series feature high-rigidity and durable B-axes for improved cutting performance and unmatched flexibility.
VCF SERIES
Specifications
| Model | VCF 850SR/LSR |
|---|---|
| X AXIS TRAVEL | 2,000 - 3,000mm |
| Y Axis Travel | 850mm |
| Z axis travel | 800mm |
| B AXIS TRAVEL | 220°(±110°) |
| C AXIS TRAVEL | 360° (HORIZ or VERT OPT) |
| Rapid Traverse | 2500 ~ 3500kg |
| Spindle Taper | BT40 BIG PLUS |
| Spindle Speed | 12,000 ~ 18,000rpm |
| Spindle Power | 22 ~ 32kW |
| Spindle Drive | BUILT IN |
| B AXIS DRIVE | ROLLER CAM GEAR |
| ATC Capacity | 30 ~ 60 tools |
| Guideway Type | ROLLER LMG |
| Lubrication | OIL |
Available Control Systems for all models
The VCF Series is available with Siemens, Fanuc or Heidenhain.

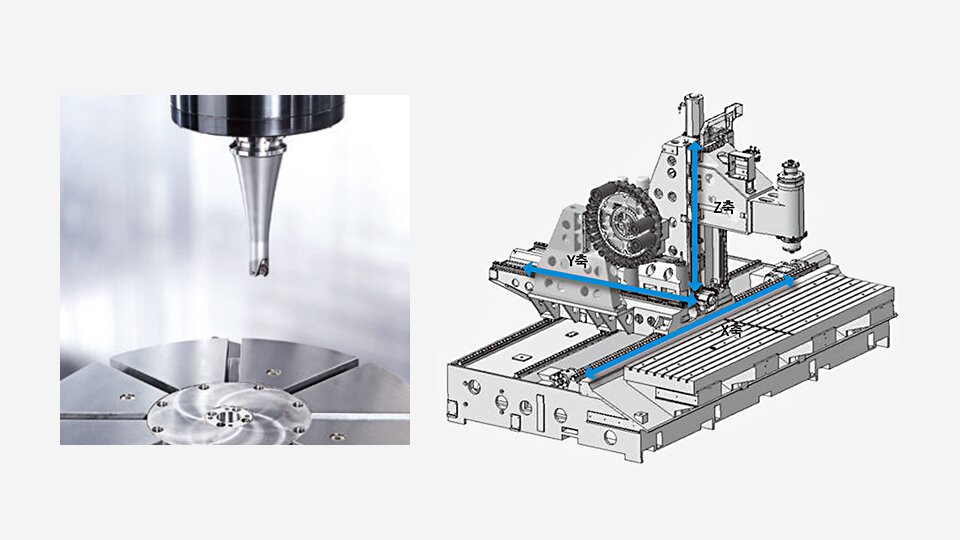

Equipped with either 2 or 3m X-axis travel and a wide array of options, the VCF Series provides manufacturers with an innovative and inspirational way to achieve multi-purpose productivity from a single machine.

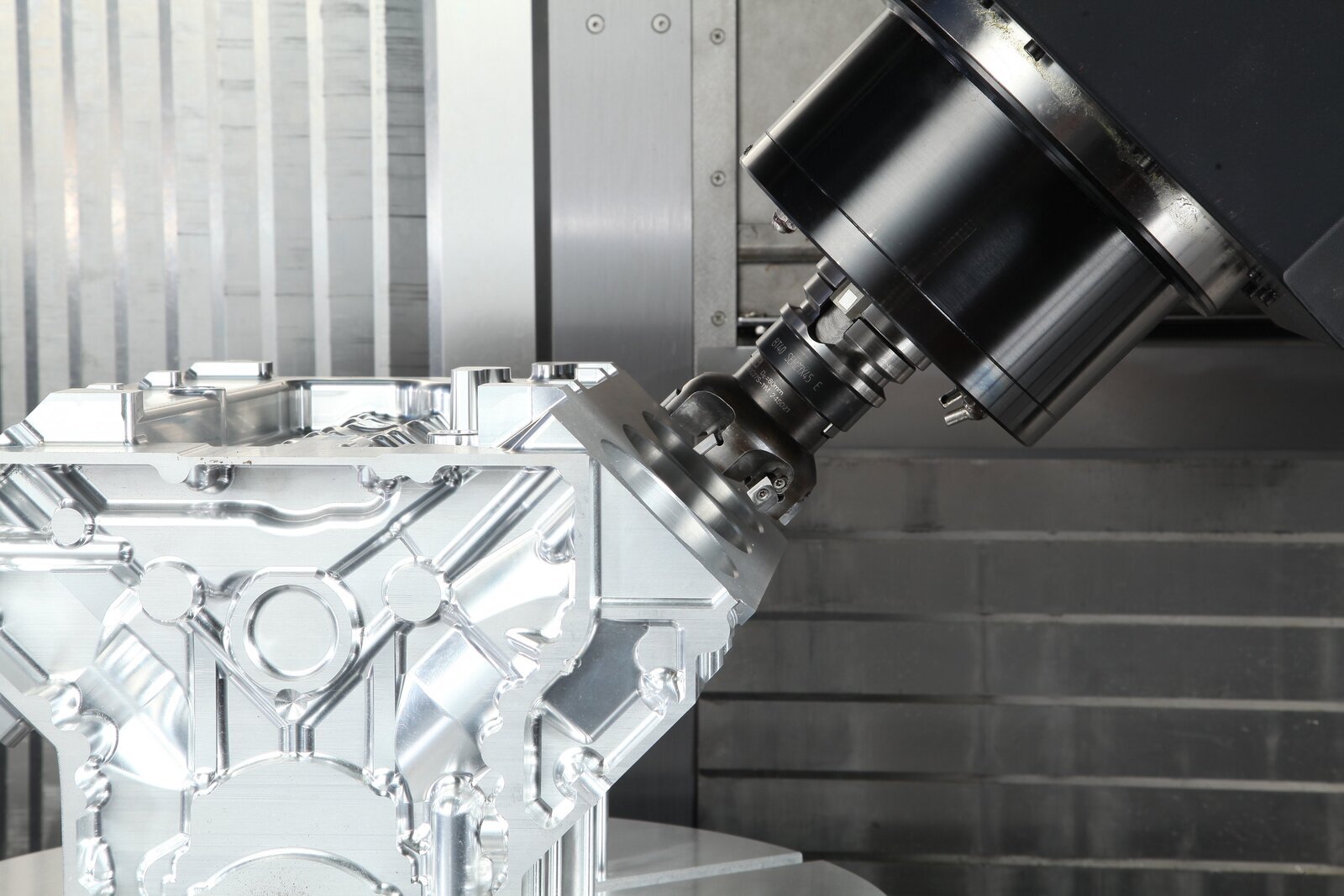

4+1 or 5 Axis Simultaneous machining operations from 4 to 6 axes configurations makes the VCF850 a real multi-purpose machine.
