SVM Series
Compact Vertical Machining Centers
The SVM machine incorporates DN Solutions’ traditional C-frame design structure, but has been optimised for higher productivity when undertaking fast and light duty machining operations.
SVM SERIES
Specifications
| Model | SVM 4100 · SVM 5100L |
|---|---|
| X Travel | 770 ~ 1270mm |
| Y Travel | 410 ~ 510mm |
| Z Travel | 510mm |
| Rapid Traverse | 36mm/min |
| Spindle to Table | 100 ~ 610mm |

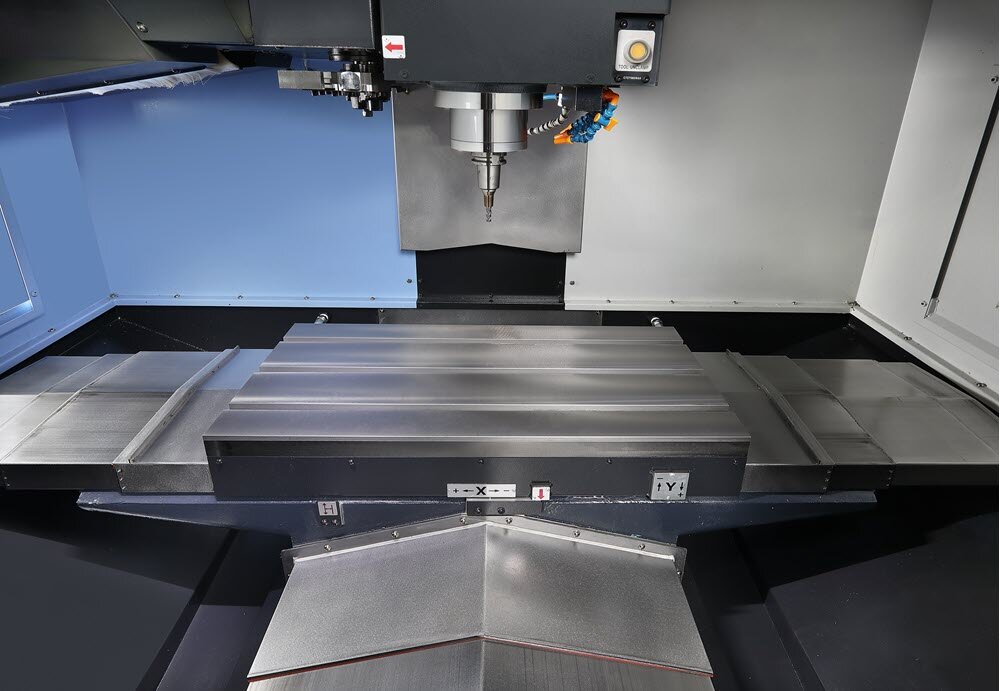

| Table Size | 920 x 410 ~ 1320 x 510mm |
| Table Capacity | 600 ~ 800kg |
| Spindle Taper | BT40 BIG PLUS |
| Spindle Speed | 12,000rpm |
| Spindle Power | 18.5kW |
| Spindle Drive | Direct Driven |
| ATC Capacity | 30 tools |
| Guideway Type | LMG |
| Lubrication | Grease |
Available Control Systems for all models
The SVM Series is available with Siemens or Fanuc.
The SVM series of vertical machining centers guarantee the highest productivity with their rapid spindle acceleration/deceleration rates.

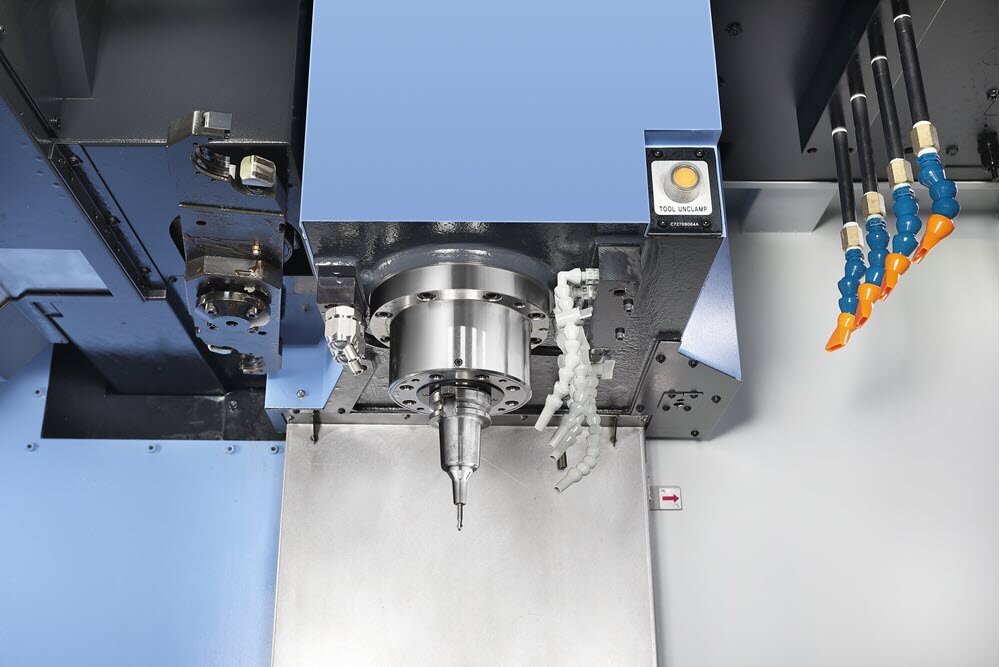

Direct-coupled spindle for higher productivity
Max. spindle speed: 12000 r/min
Outstanding spindle reliability with minimal thermal displacement
Max. spindle speed: 12000 r/min
Outstanding spindle reliability with minimal thermal displacement
