DEM Series
#40 General Vertical Machining Center
The DEM 4000 is designed for excellent cutting performance for an entry level investment, High speed 8000 r/min belt spindle and arm type, ATC are just some of the features packed into a cost effective package.
DEM SERIES
Specifications
| Model | DEM 4000 |
|---|---|
| X Travel | 550mm |
| Y Travel | 400mm |
| Z Travel | 450mm |
| Rapid Traverse | 24mm/min |
| Spindle to Table | 120 ~ 570mm |

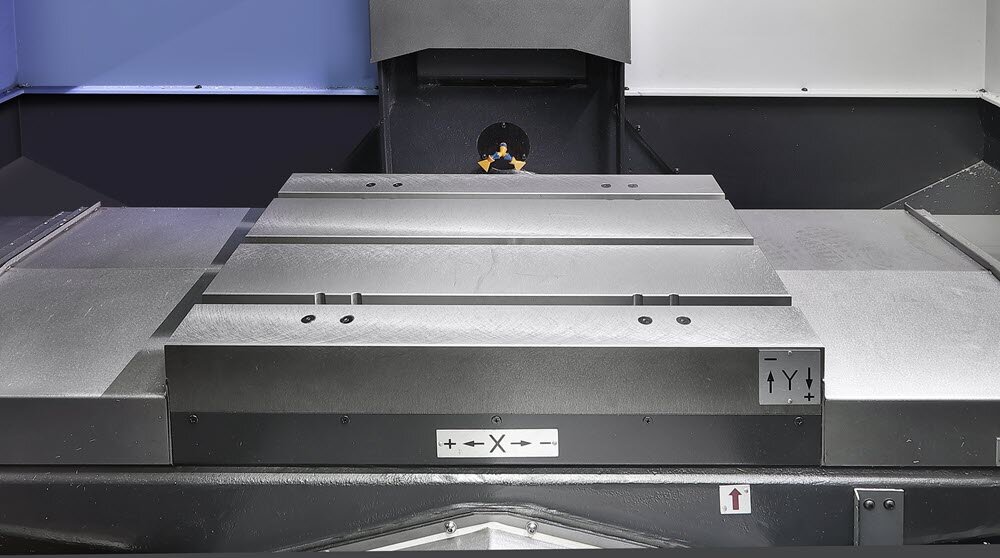

| Table Size | 650 x 400mm |
| Table Capacity | 400kg |
| Spindle Taper | BT40 |

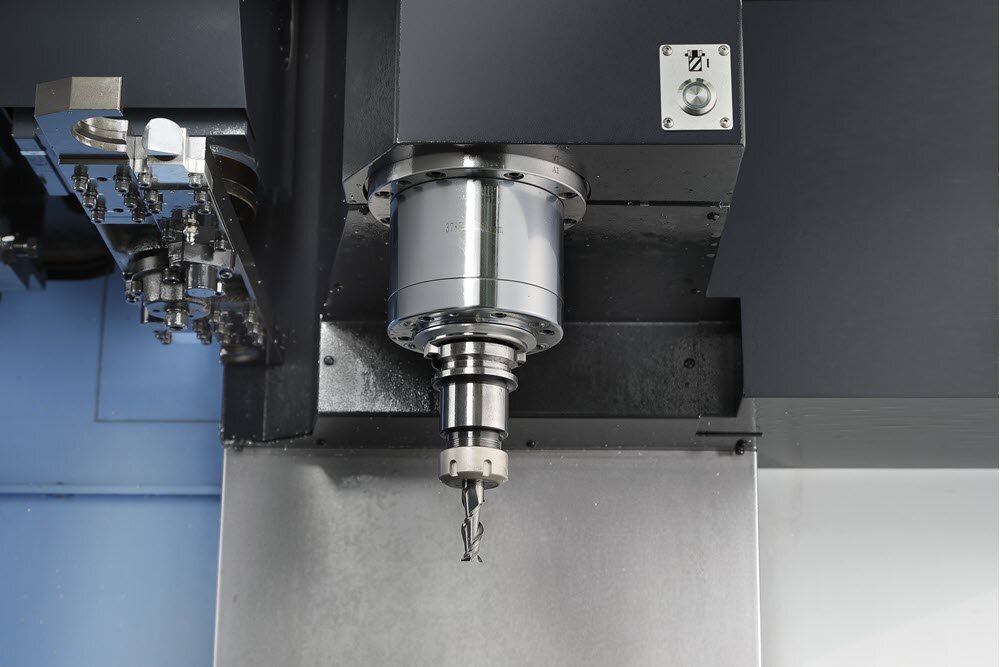

| Spindle Speed | 8,000rpm |
| Spindle Power | 7.5kW |
| Spindle Drive | Belt Driven |
| ATC Capacity | 20 tools |
| Guideway Type | LMG |
| Lubrication | Grease |
Available Control Systems for all models
The DEM Series is available with Fanuc.
A cost effective and ultra-reliable vertical machining center with high-speed and high-precision machining capabilities.
Maximised Cutting Area and Work Load Capacity
