NHP Series
Hi-Speed Hi-Productivity Horizontal Machining Centers
NHP horizontal machining centers, with their stable structures, thermal compensation systems and ability to minimize non-cutting time, deliver unrivalled accuracy and productivity. Making them the number one choice for manufacturers wanting efficient machining of small and medium sized components.
NHP SERIES
Specifications
| Model | NHP 4000 · 5000 · 5500 · 6300 · 8000 |
|---|---|
| X Axis Travel | 560 ~ 1400mm |
| Y Axis Travel | 640 ~ 1200mm |
| Z Axis Travel | 660 ~ 1370mm |
| B Axis Resolution | 1° (0.001° OPT.) |
| Spindle - Table Centre | 80 ~ 740 - 150 ~ 1520mm |
| Spindle - Table Top | 80 ~ 720 - 75 ~ 1275mm |
| Pallet Size | 400 x 400 ~ 800 x 800mm |
| Pallet Capacity | 400 ~ 2000kg |
| Workpiece Envelope | 630Ø x 900mm ~ 1450Ø x 1550mm |
| Rapid Traverse X, Y & Z | 50 ~ 60mm/min |
| Spindle Taper | BT40/50 BIG PLUS ~ HSK |
| Spindle Speed | 6000 ~ 20,000rpm |
| Spindle Power | 22 ~ 45kW |
| Spindle Drive | Built In |
| ATC Capacity | 40 ~ 316 tools |
| Number Of Pallets | 2 STD - 6 ~ 72 APC OPT. |
| Guideway Type | Roller LMG |
| Lubrication | Oil ~ Grease |
Available Control Systems for all models
The NHP Series is available with Siemens or Fanuc.

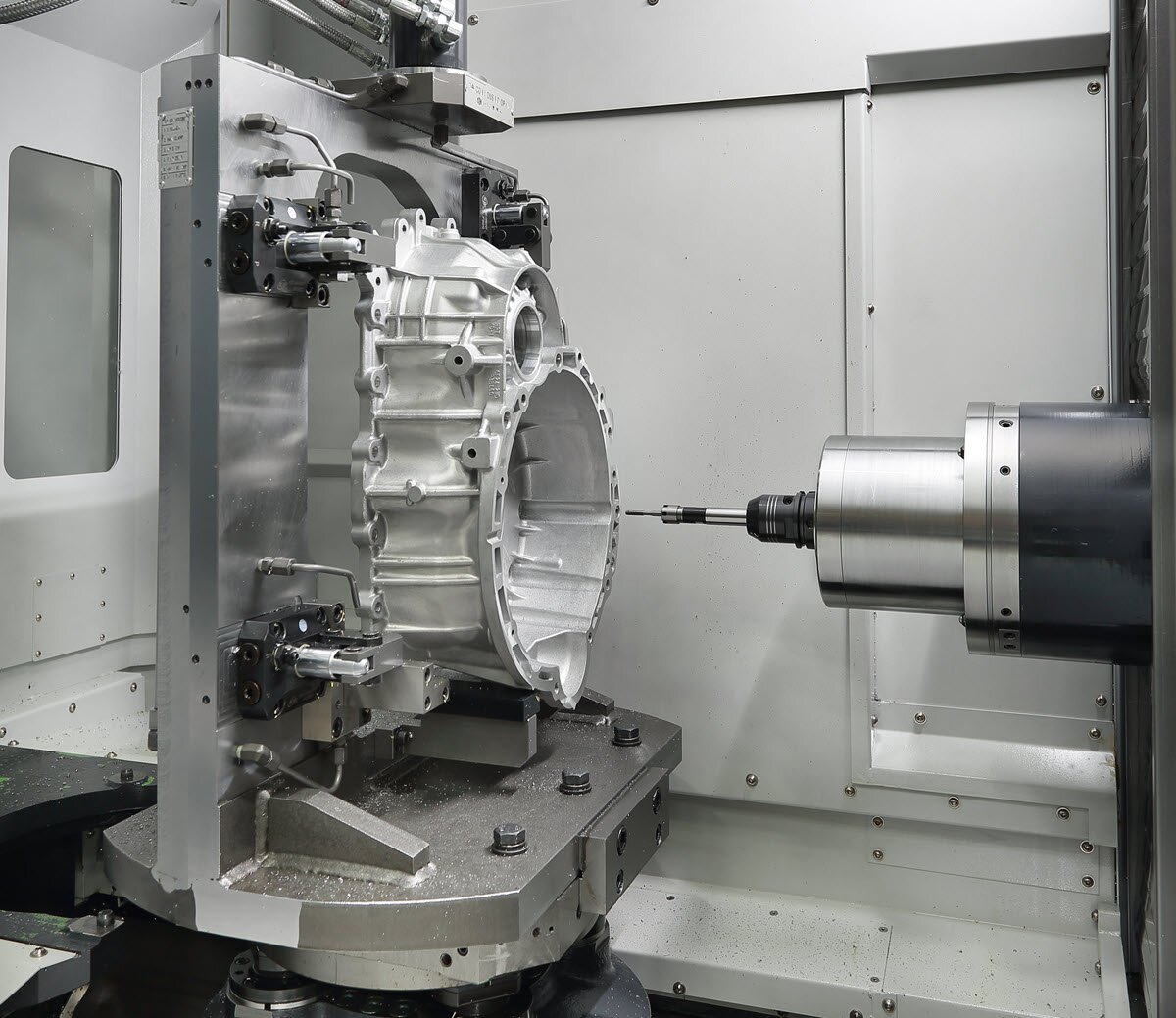

Enhanced feed axis acceleration and deceleration, rapid traverse speed of 60 m/min, and a tool change time (T-T-T) of 1.7 seconds minimise non-cutting time and improve productivity.

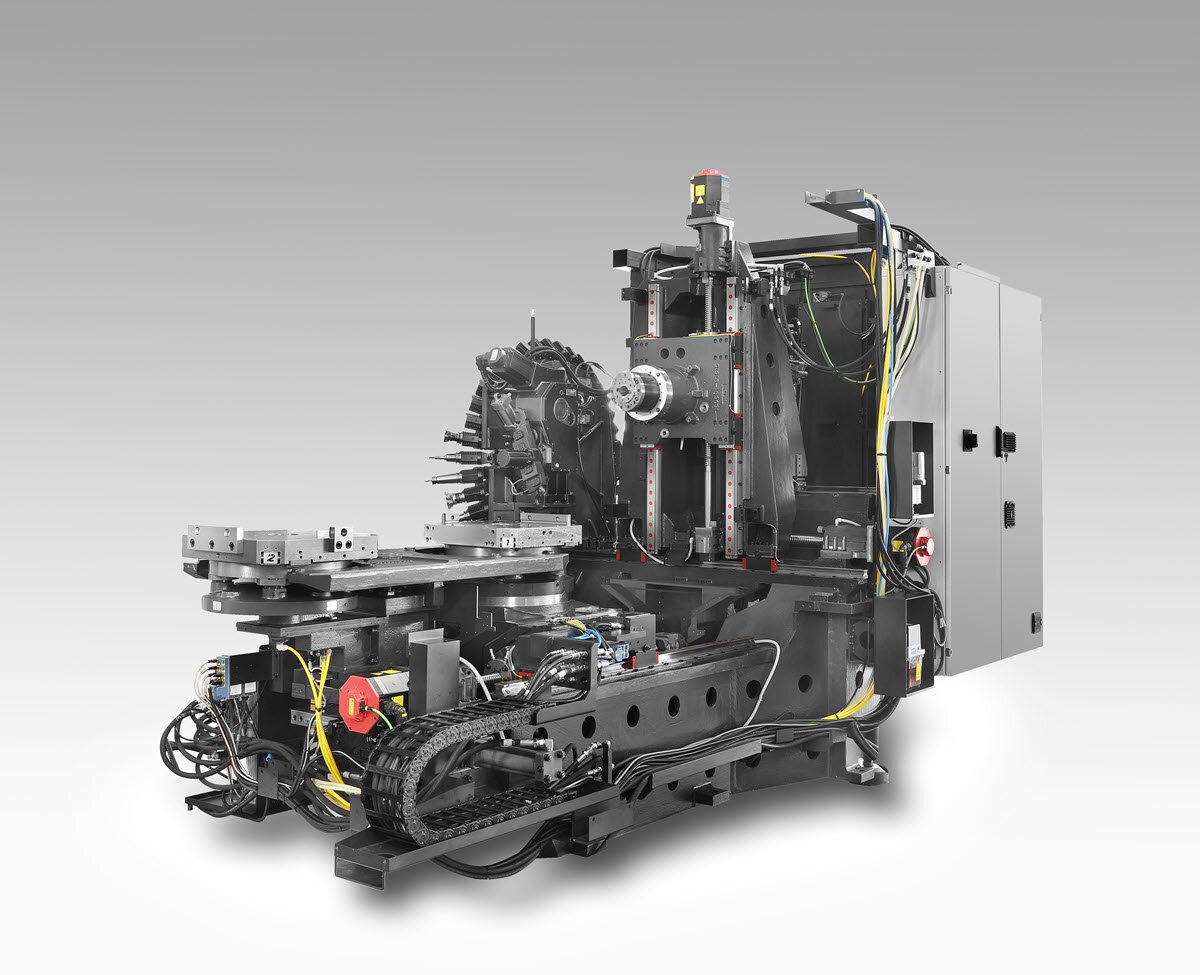

The high rigidity one piece bed is ideal for ultra fast and precise machining.
