NHM Series
Mid-to-large-sized High Capacity Horizontal Machining Centers
NHM horizontal machining centres deliver the power, performance and reliability manufacturers require for the heavy-duty machining of tough and difficult materials, while maintaining precision and efficient production.
NHM SERIES
Specifications
| Model | NHM 5000 · 6300 · 8000 |
|---|---|
| X Axis Travel | 800 ~ 1400mm |
| Y Axis Travel | 700 ~ 1050mm |
| Z Axis Travel | 850 ~ 1200mm |
| B Axis Resolution | 1° (0.001° OPT.) |
| Spindle - Table Centre | 100 ~ 950 - 150 ~ 1350mm |
| Spindle - Table Top | 75 ~ 775 - 75 ~ 1125mm |
| Pallet Size | 500 x 500 ~ 800 x 800mm |
| Pallet Capacity | 800 ~ 2000kg |
| Workpiece Envelope | 850Ø x 1100mm ~ 1450Ø x 1550mm |
| Rapid Traverse X, Y & Z | 24 ~ 30mm/min |
| Spindle Taper | 50 BIG PLUS ~ HSK |
| Spindle Speed | 6000 ~ 8,000rpm |
| Spindle Power | 25 ~ 35kW |
| Spindle Drive | Gearbox Driven |
| ATC Capacity | 60 ~ 150 tools |
| Number Of Pallets | 2 STD - 7 ~ 72 APC OPT. |
| Guideway Type | Box Guideway |
| Lubrication | Oil |
Available Control Systems for all models
The NHM Series is available with Siemens or Fanuc.

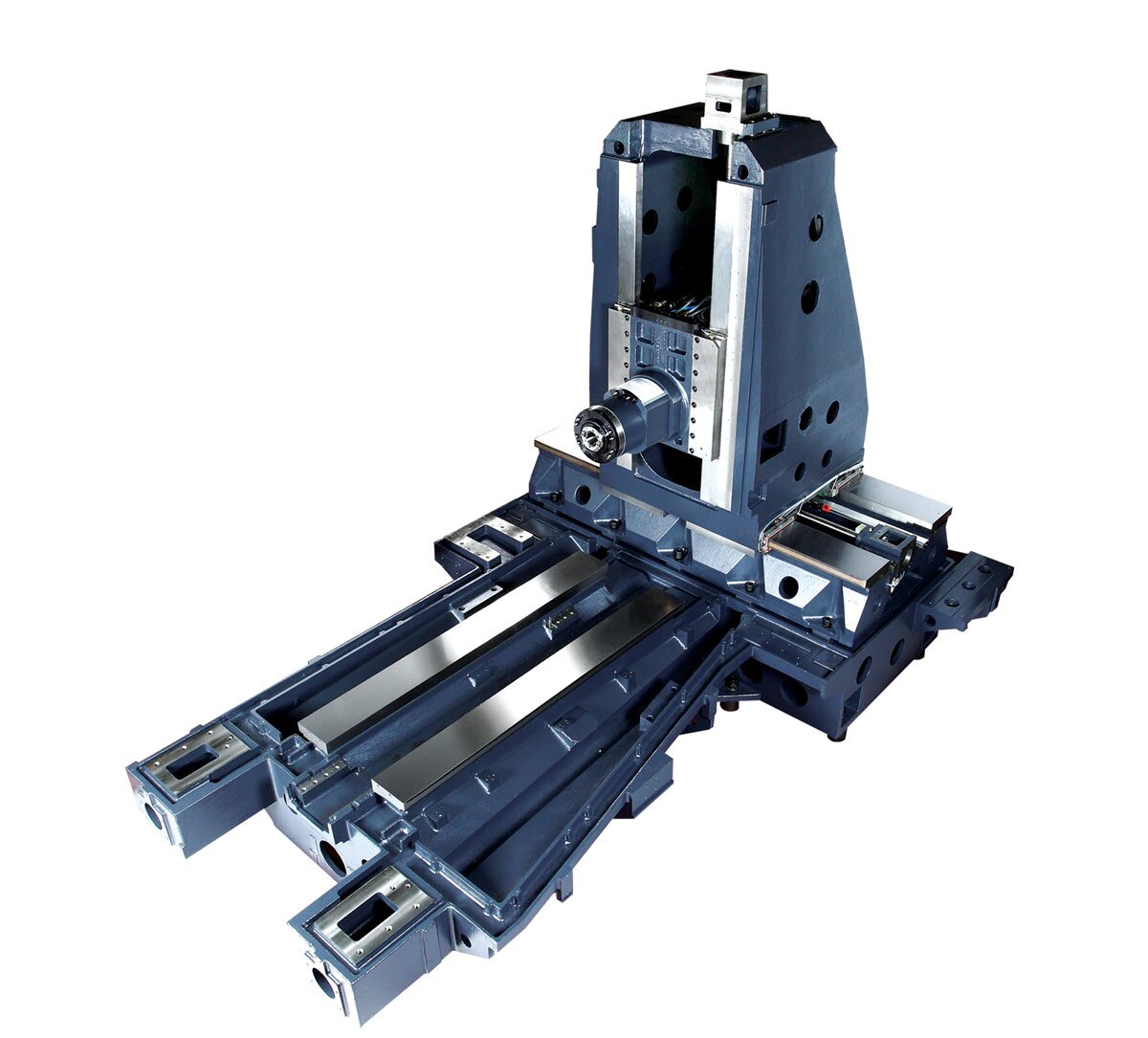

The high rigidity one-piece bed and box guideway motion system supports heavy duty cutting and high removal rates. While the 3-row bearing system & rigid coupling keeps precision and rigidity for individual axes high.

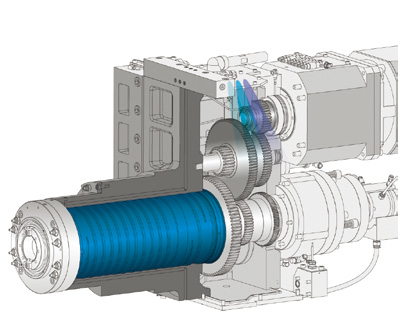

A true gear driven spindle design deliveres unmatched machining performance.
