HM Series
Large sized Massive Duty Horizontal Machining Centres

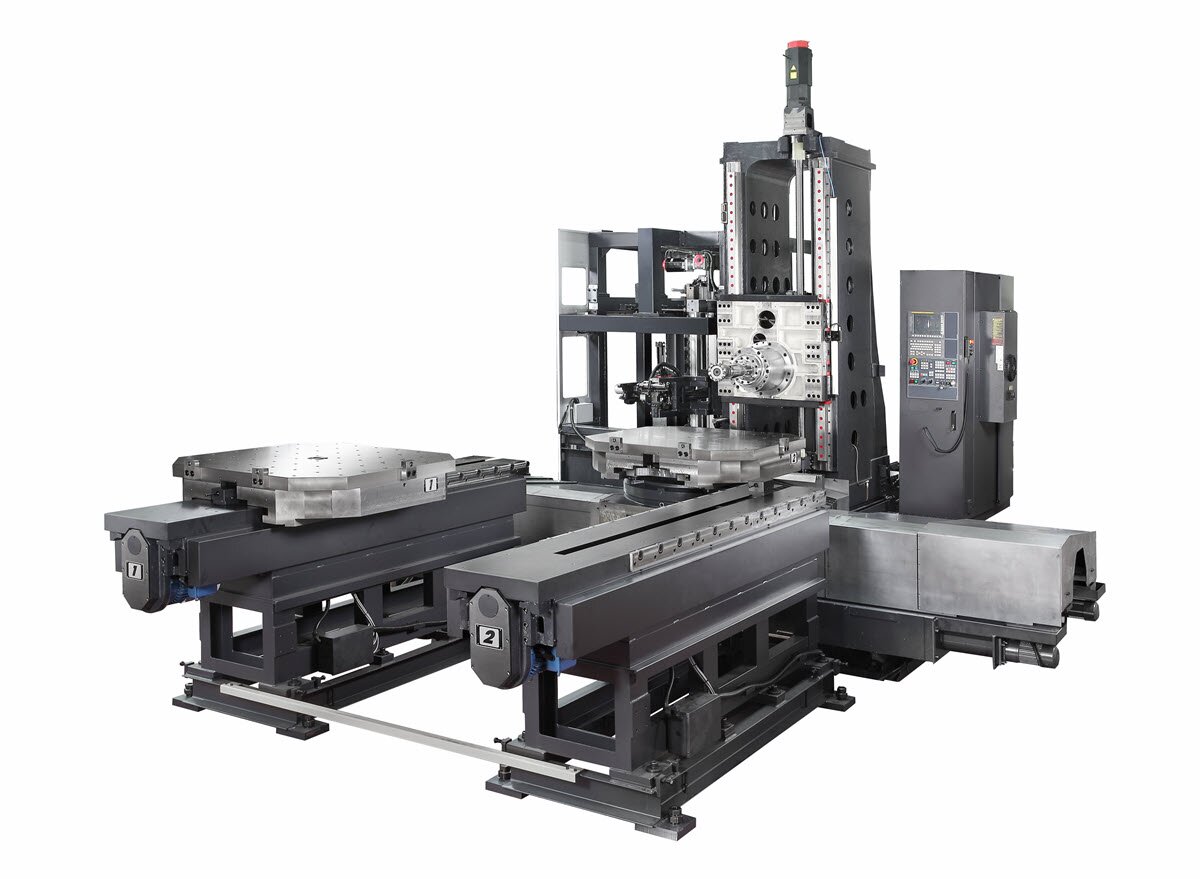

The HM series is a twin pallet horizontal machining center designed for processing the largest of workpieces. A wide variety of machining applications can be carried out with up to 1250 x 1250mm pallet size and optional W axis capability.
HM SERIES
Specifications
| Model | HM 1000 · 1250 · 1250W |
|---|---|
| X Axis Travel | 2100mm |
| Y Axis Travel | 1250 ~ 1500mm |
| Z Axis Travel | 1250 ~ 1500mm |
| W Axis Travel | 300mm OPT. |
| B Axis Resolution | 1° (0.001° OPT.) |
| Spindle - Table Centre | 250 ~ 1500 - 285 ~ 1785mm |
| Spindle - Table Top | 75 ~ 1325 - 50 ~ 1550mm |
| Pallet Size | 1000 x 1000 ~ 1250 x 1250mm |
| Pallet Capacity | 3000 ~ 5000kg |
| Workpiece Envelope | 2000Ø x 1475mm |
| Rapid Traverse X, Y & Z | 24mm/min |
| Spindle Taper | 50 BIG PLUS |
| Spindle Speed | 6000 ~ 8,000rpm (W axis = 3000) |
| Spindle Power | 26 ~ 45kW |
| Spindle Drive | Gearbox Driven |
| ATC Capacity | 60 ~ 316 tools |
| Number Of Pallets | 2 STD - 7 APC OPT. |
| Guideway Type | Box Guideway |
| Lubrication | Oil |
Available Control Systems for all models
The HM Series is available with Siemens or Fanuc.

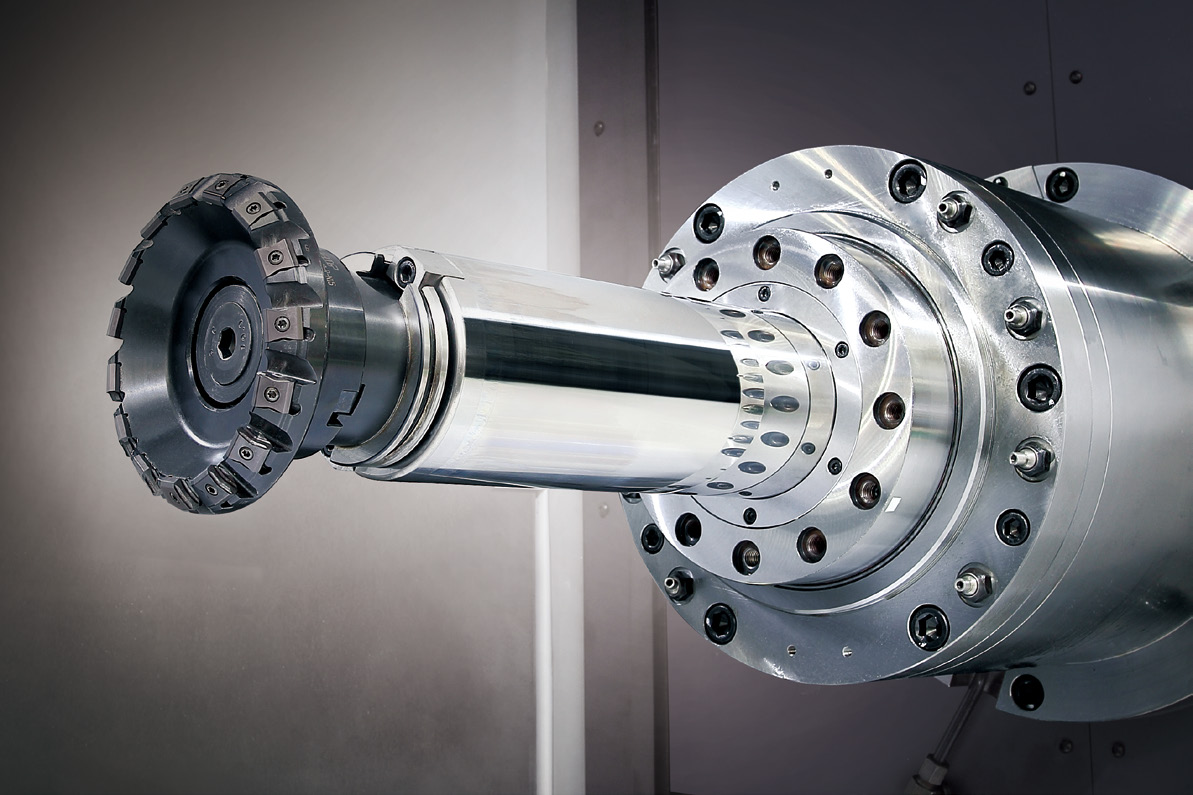

High torque gearbox spindle, box-type guideways, and high rigidity cast structure combine to achieve the ultimate performance no matter what the workpiece.
The optional W axis for long boring applications further increases the HM's versatility and capacity.
