DVF Series
Premium 5 Axis Machining Centers

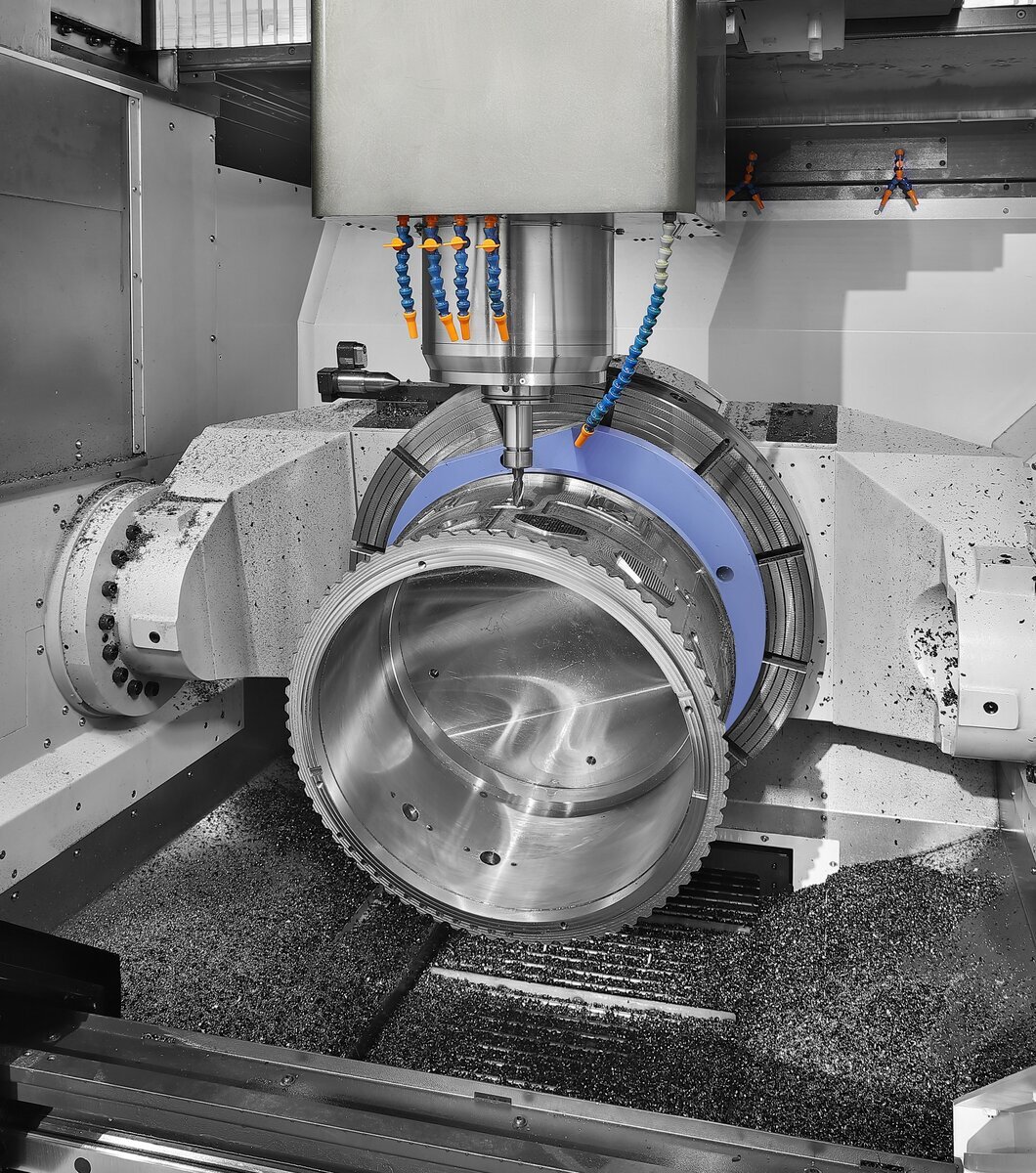

The DVF 5-axis models, feature rigid travelling column design and fully integrated tables. They are ideal for machining everything from precision medical parts through to drilling equipment. DVF machines are the ultimate simultaneous 5-axis machining centres.
DVF SERIES
Specifications
| Model | DVF 4000 · 5000 · 6500 · 8000 |
|---|---|
| X AXIS TRAVEL | 620 - 1000mm |
| Y Axis Travel | 440 - 900mm |
| Z axis travel | 430 - 800mm |
| B AXIS TRAVEL | 140°(-30°~+110°) ~ 240°(±120°) |
| C AXIS TRAVEL | 360° |
| Rapid Traverse | 36 ~ 45mm/min |
| Table Size | 400 ~ 800Ømm |
| Table Capacity | 200 ~ 1400kg |
| WORKPIECE ENVELOPE | 500Ø x 480Hmm ~ 1000Ø x 590Hmm |
| Spindle Taper | BT40/50 BIG PLUS ~ HSK |
| Spindle Speed | 8000 ~ 20,000rpm |
| Spindle Power | 18.5 ~ 35kW |
| Spindle Drive | DIRECT DRIVEN/BUILT IN |
| TABLE TURNING SPEED | 600 ~ 1000rpm OPT. |
| ATC Capacity | 30 ~ 120 tools |
| Guideway Type | ROLLER LMG |
| Lubrication | GREASE |
Available Control Systems for all models
The DVF Series is available with Siemens, Fanuc or Heidenhain.
DVF 5-axis machining centres are designed for component manufacturers looking to machine high-precision, complex parts in one hit. Equipped with leading edge technology and automation- ready, these machines will take your productivity and performance to a whole new level.
Table turning function available on DVF 6500T & DVF 8000T.

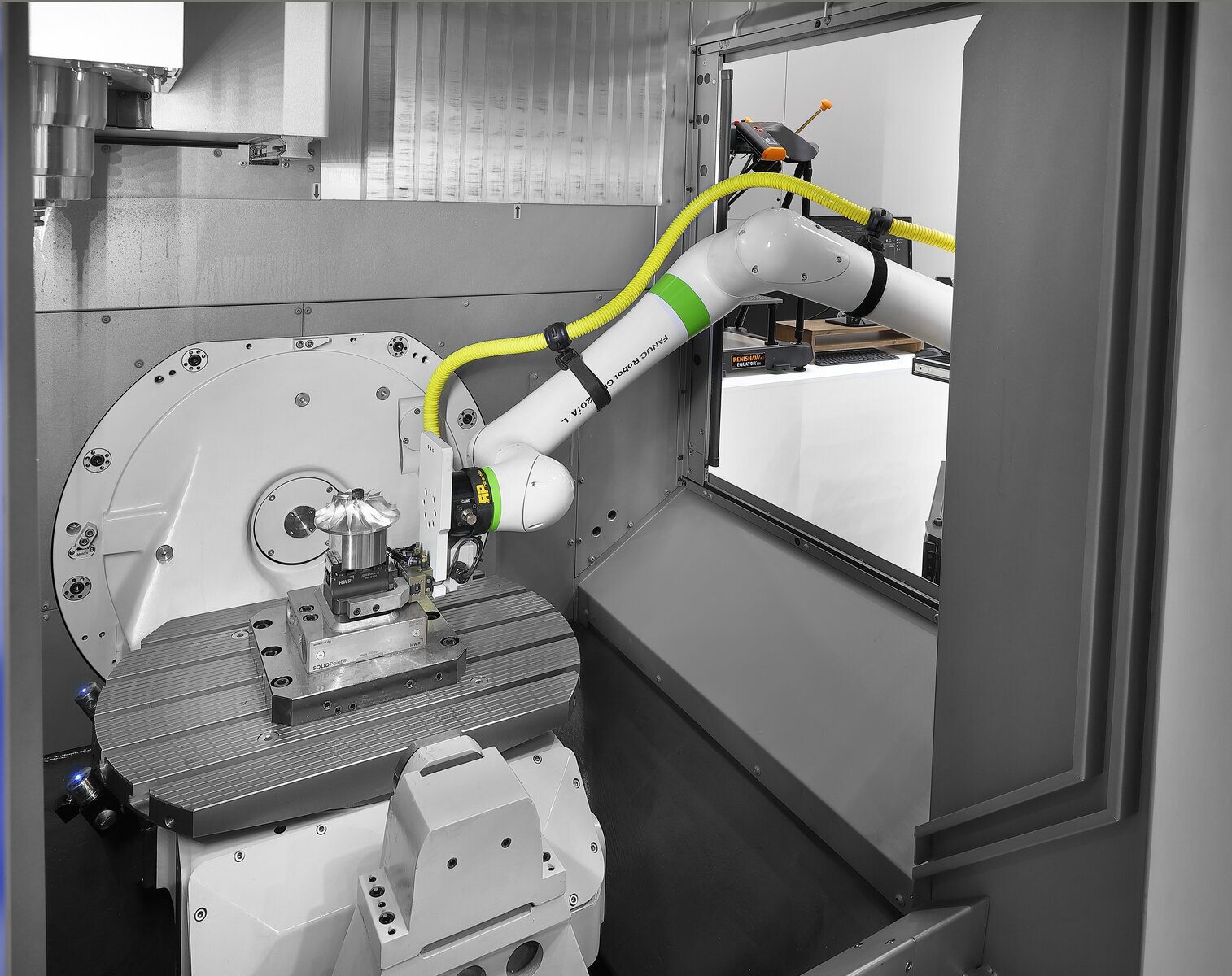

Automation ready with Auto Work Changers, Rotary & Linear Pallets Systems available for all DVF models.
