DHF Series
Twin-Pallet 5 Axis Horizontal Machining Centres
The DHF 8000 with its A-axis spindle is a 5- axis horizontal machining center with a highly rigid structure. The DHF 8000 meets the machining requirements of customers machining a range of materials, from Titanium and Inconel, through to the high-speed machining of Aluminium.
DHF SERIES
Specifications
| Model | DHF 8000 · 8000ST |
|---|---|
| X AXIS TRAVEL | 1450mm |
| Y Axis Travel | 1200mm |
| Z axis travel | 1500mm |
| A AXIS TRAVEL | 160°(-100° ~ +60°) |
| B AXIS TRAVEL | 360° |
| Rapid Traverse | 50mm/min |
| Table Size | 800 x 800 ~ 1000Ømm |
| Table Capacity | 2000KG |
| WORKPIECE ENVELOPE | 1400 ~ 1600Ø x 1400Hmm |
| Spindle Taper | BT50 BIG PLUS ~ HSK |
| Spindle Speed | 6000 ~ 30,000rpm |
| Spindle Power | 35 ~ 90kW |
| Spindle Drive | BUILT IN |
| TABLE TURNING SPEED | 500rpm OPT. |
| ATC Capacity | 60 ~ 376 tools |
| Guideway Type | ROLLER LMG |
| Lubrication | OIL |
Available Control Systems for all models
The DHF Series is available with Siemens or Fanuc.

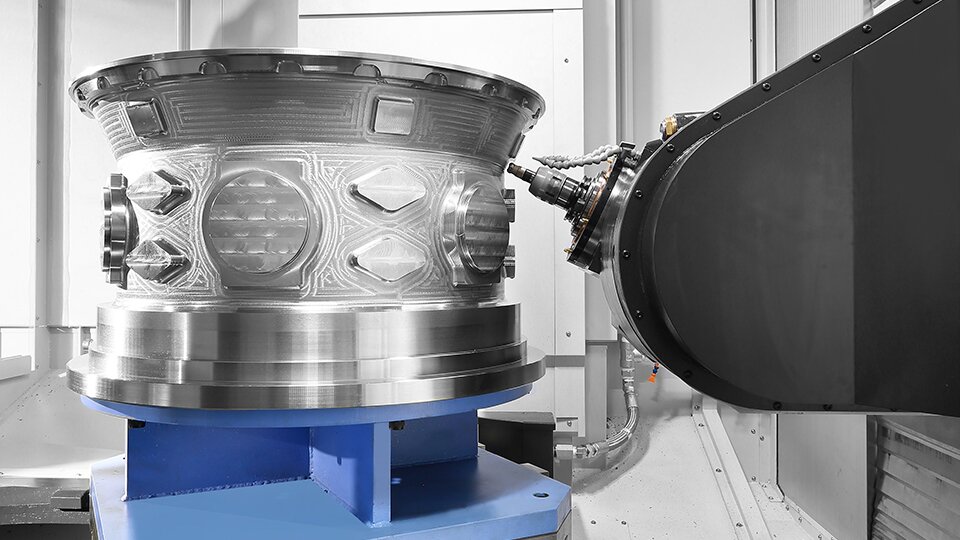

The DHF 8000 is a large-capacity 5-axis twin-pallet horizontal machining center that provides users with full 5-axis simultaneous machining capabilities to process the most complex workpieces.

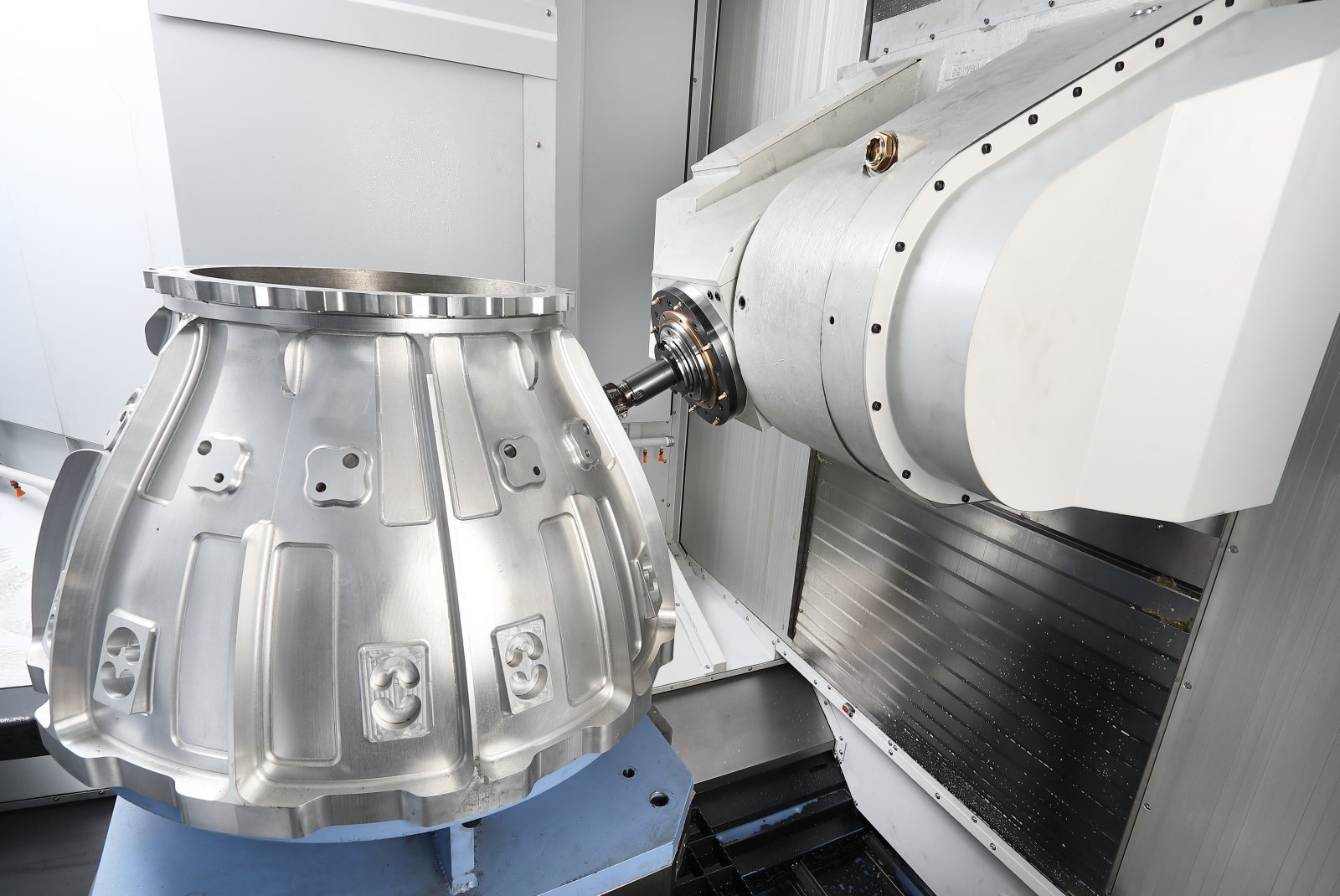

The nodding head type spindle maximizes productivity and efficiency during multi-face and 5-axis simultaneous machining operations.
