Bodor K
Economical | Tube Fiber Laser Cutting
K-Series is designed to handle the challenges of metal tube manufacturing, delivering precision, efficiency, and reliability with every use.
K-Series is the economical choice for precise tube processing with excellent performance with huge savings.
1G - 100m/min Max Chuck Rotation Speed

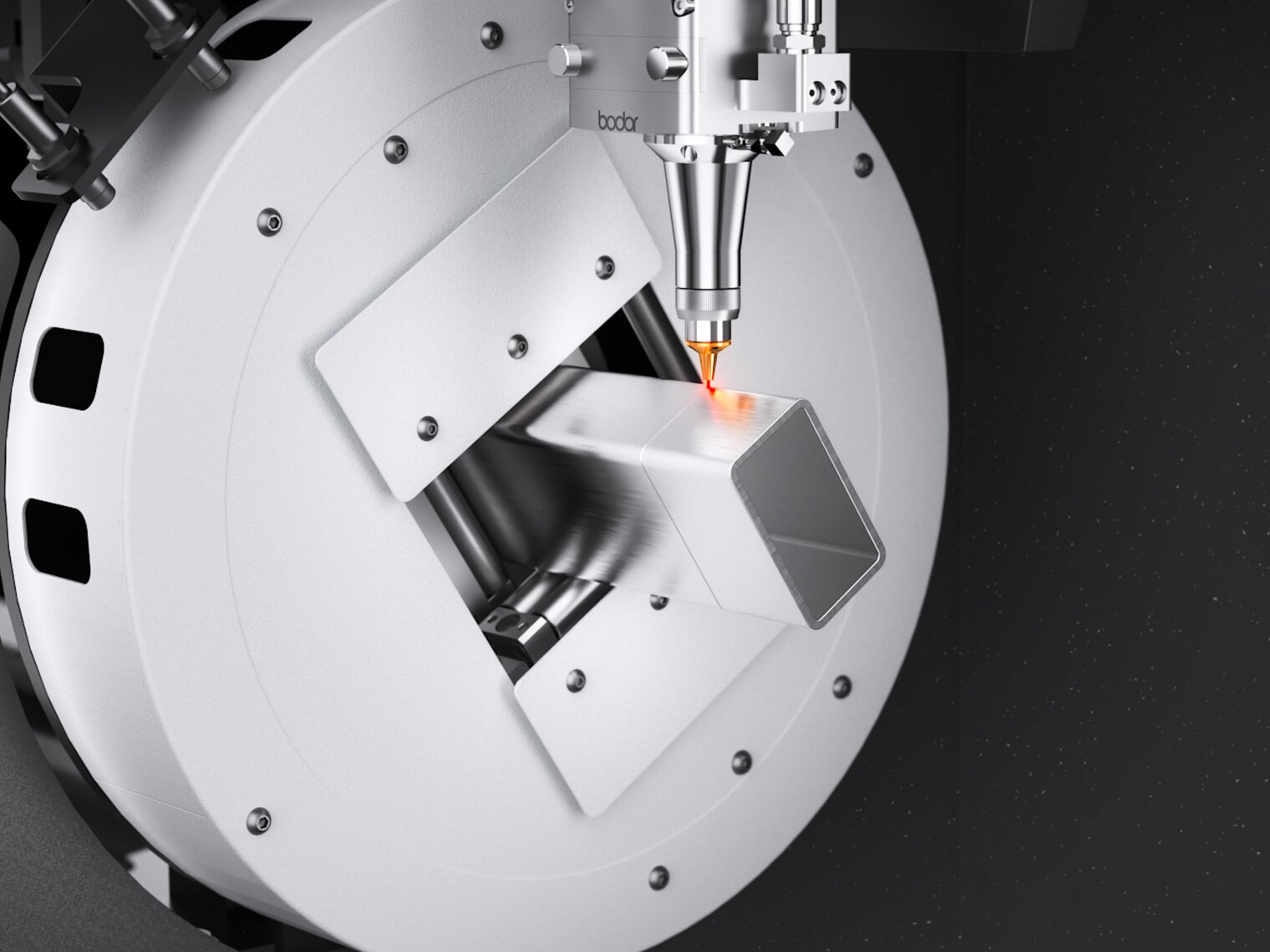

Solid Performance of Chucks

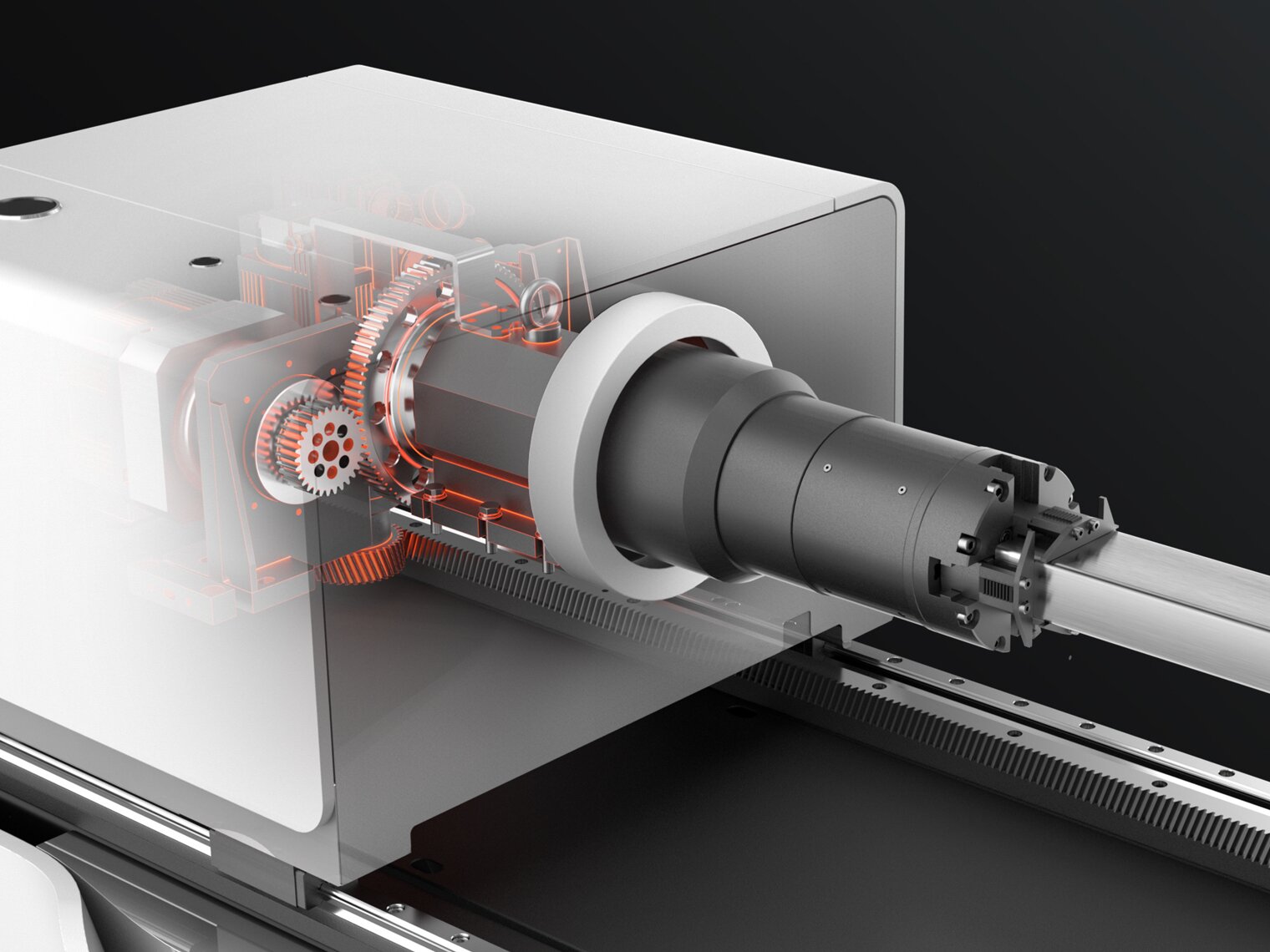

Adopting high-performance bus servo motors, significantly improving processing efficiency to ensure that every second you invest creates value.
The pneumatic chucks adopt a direct cylinder push structure. With simple and efficient transmission, it can complete clamping in as fast as 2 seconds.

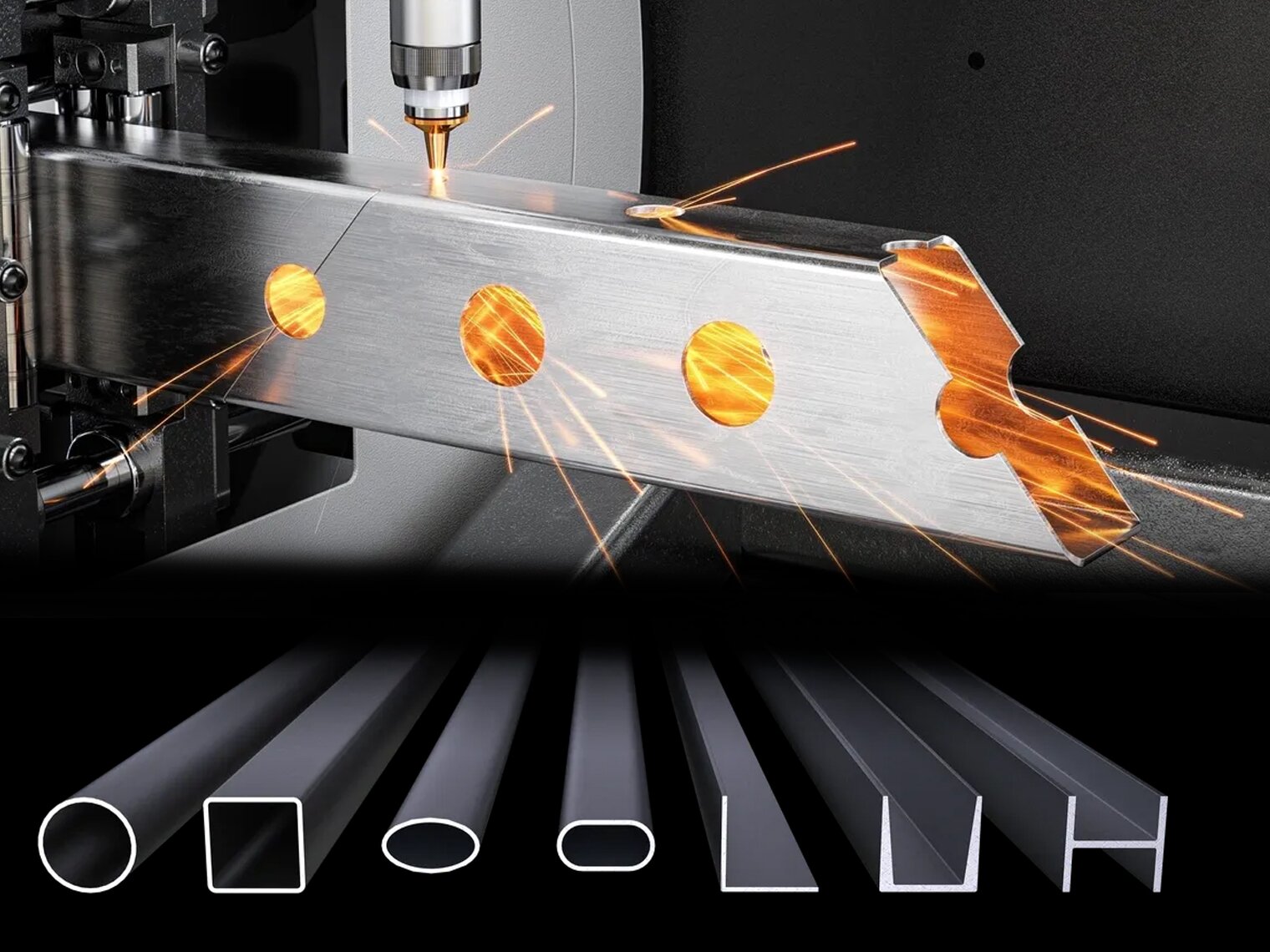

Processing Capabilities
K Series can cut or process various types of metal tubes into complex shapes.
It can take your raw RHS, SHS, round or rectangular tube and turn it into a finished component, including holes, slots, notches and complex end profiles, without having to move the part between a saw, drill press and other machines.
Edge avoidance protection
Independently-developed following sensory and path avoidance algorithms, significantly reduce the risk of laser head collision due to workpiece warping.
BodorDriver
Adopt high performance bus servo motor to achieve advanced dynamic performance and greatly improve user's processing efficiency, ensuring every second of processing time is creating value.
MACHINE OPTIONS
Configure the K Series to Your Production
K-Loader2
Automated loading system

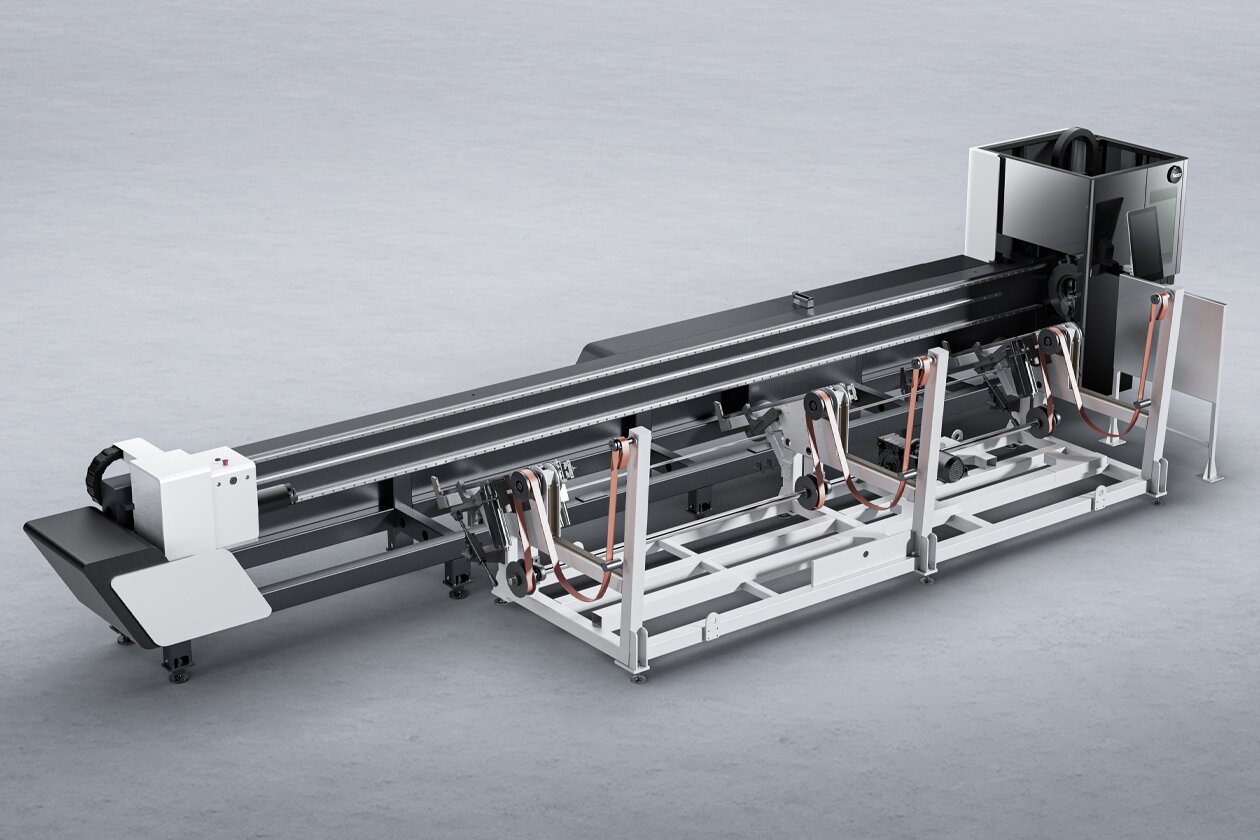

K-Trans2
Automated bundle loading system

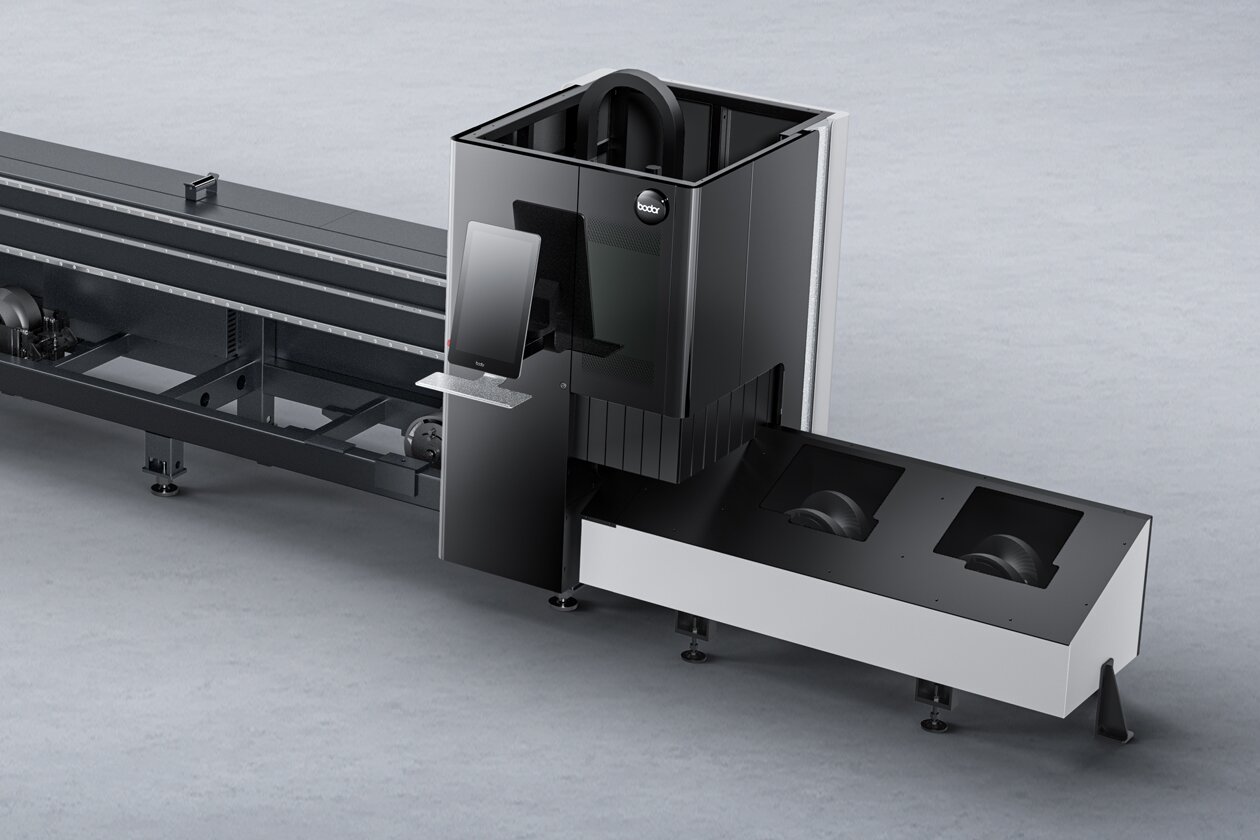

Extended Unloading
Automatic unloading and longer length support system
BODOR K SERIES
Specifications
| Model | K1 | K2 | K3 | K5 |
|---|---|---|---|---|
| Power | 3 Kw | 3/6Kw | 3/6Kw | 6/12Kw |
| Tube Length | 6500/9200mm | 6500/9200mm | 6500/9200/12000mm | 12000mm |
| Tube Size Range | Ø6-Ø120mm | Ø8-Ø230mm | Ø25-Ø356mm | Ø150-Ø500mm |
| Angle | N/A | 30mm~140mm | 30mm~220mm | 150mm~400mm |
| Channel | N/A | side length 37mm~60mm 50mm~140mm | side length 25mm~220mm 30mm~220mm | side length 60mm~100mm 150mm~400mm |
| Acceleration | 1.5G | 1.0G | 1.0G | 0.8G |
| Positioning accuracy | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.05mm/m |
| Repeated positioning accuracy | ±0.03mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Max Load | 80Kg / 13.3Kg/m | 300Kg / 46Kg/m | 500Kg / 77kg/m | 1200Kg / 100kg/m |
