Bodor P
Professional Model | Fully Protective Sheet Laser Cutting Machine
Bodor P Series laser cutting machine is engineered to turbocharge your productivity. Say goodbye to tedious operations just a single click starts automated cutting, saving you valuable time and enhancing efficiency.
Simplifying operations is our forte. An intuitive touchscreen interface makes operation straightforward, requiring minimal training for seamless integration.

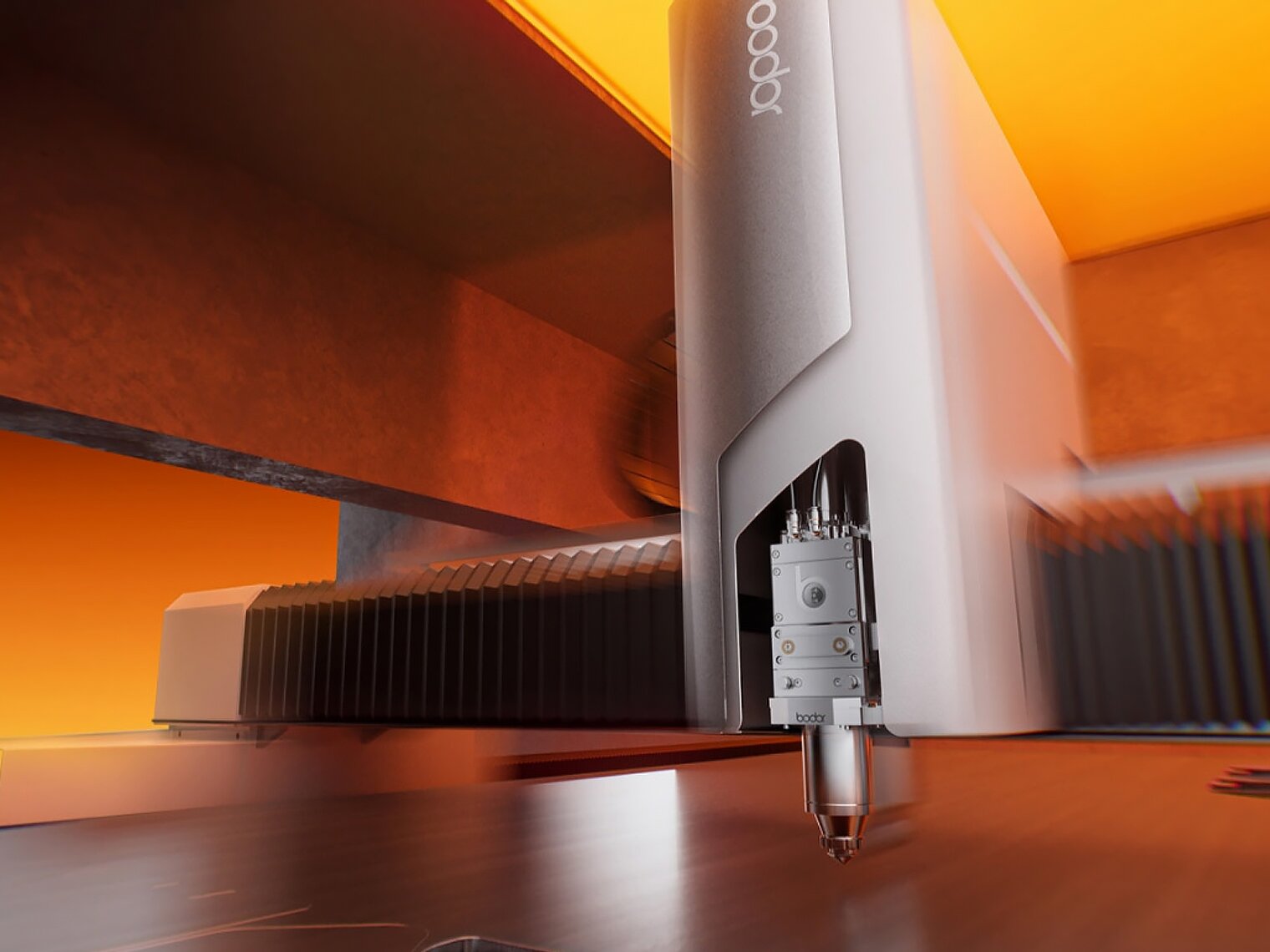

4G - 200m/min Instant Positioning
Cut Faster. Move Smarter. Maximise Productivity.
With positioning speeds of up to 200 m/min and an idle movement response time of just 480 ms, the laser head reaches the next cutting position almost instantly minimising non-cutting time and getting straight to work.
The Bodor P Series is engineered to keep production moving at maximum efficiency. With streamlined automated operation, reducing manual intervention, saving valuable time and boosting overall productivity.

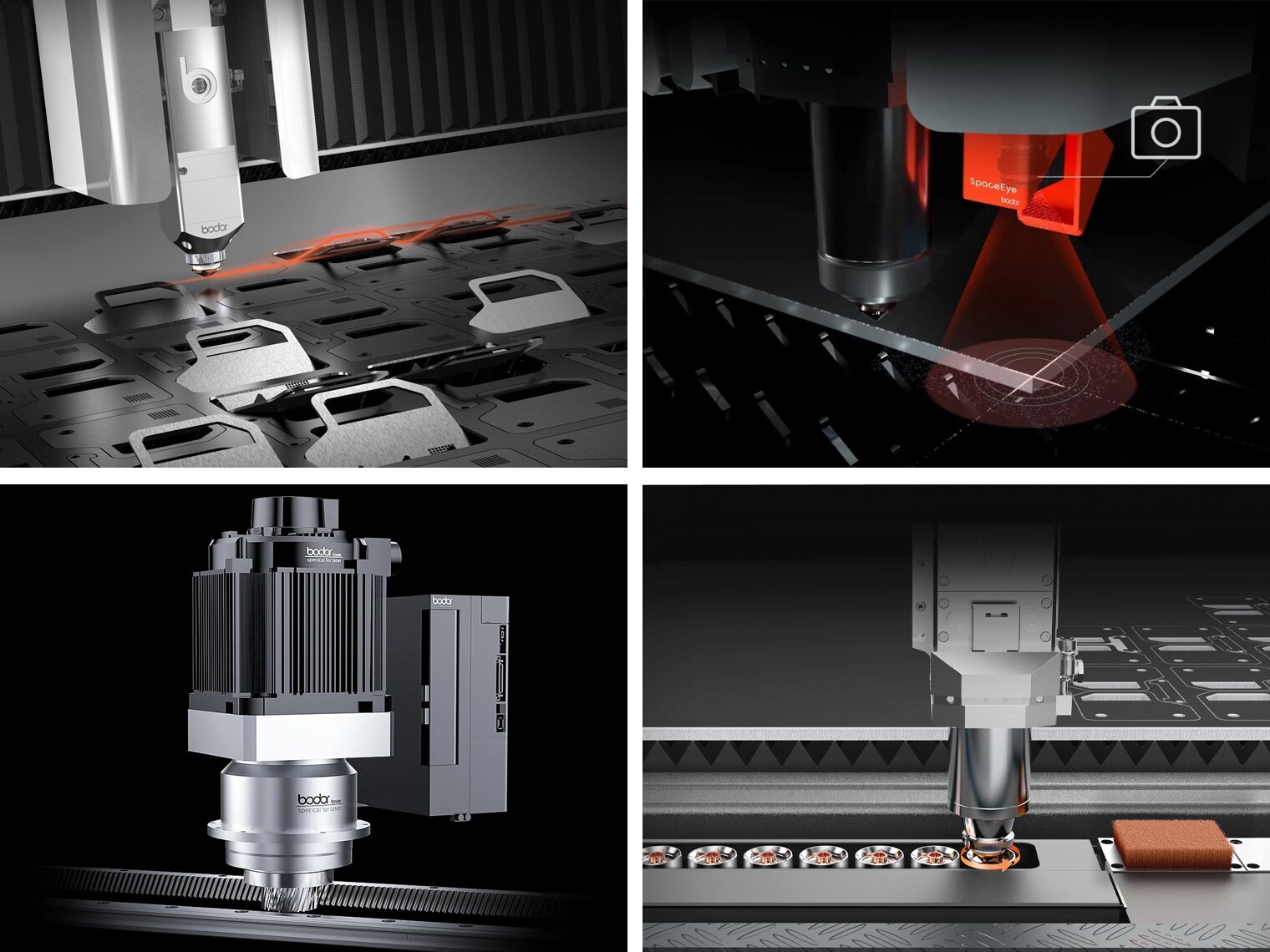

Active Obstacle Avoidance System
BodorGenius, Bodor’s intelligent laser head, uses sensors and algorithms to detect potential obstacles such as tilting parts and automatically avoids collisions.
Camera edge Find
Space eye edge searching ensures rapid material positioning and focus calibration. The system automatically identifies the material’s position, locates its vertices, and calculates angular offset, significantly reducing working time.
BodorDriver
BodorDriver enhances the performance and stability of core transmission components with precise mechanical calculations. It provides greater compatibility, making it ideal for the high-speed back-and-forth motion of laser cutting equipment.
Automatic Nozzle Changer
The machine can automatically replace nozzles without any human intervention. It also provides automated nozzle cleaning

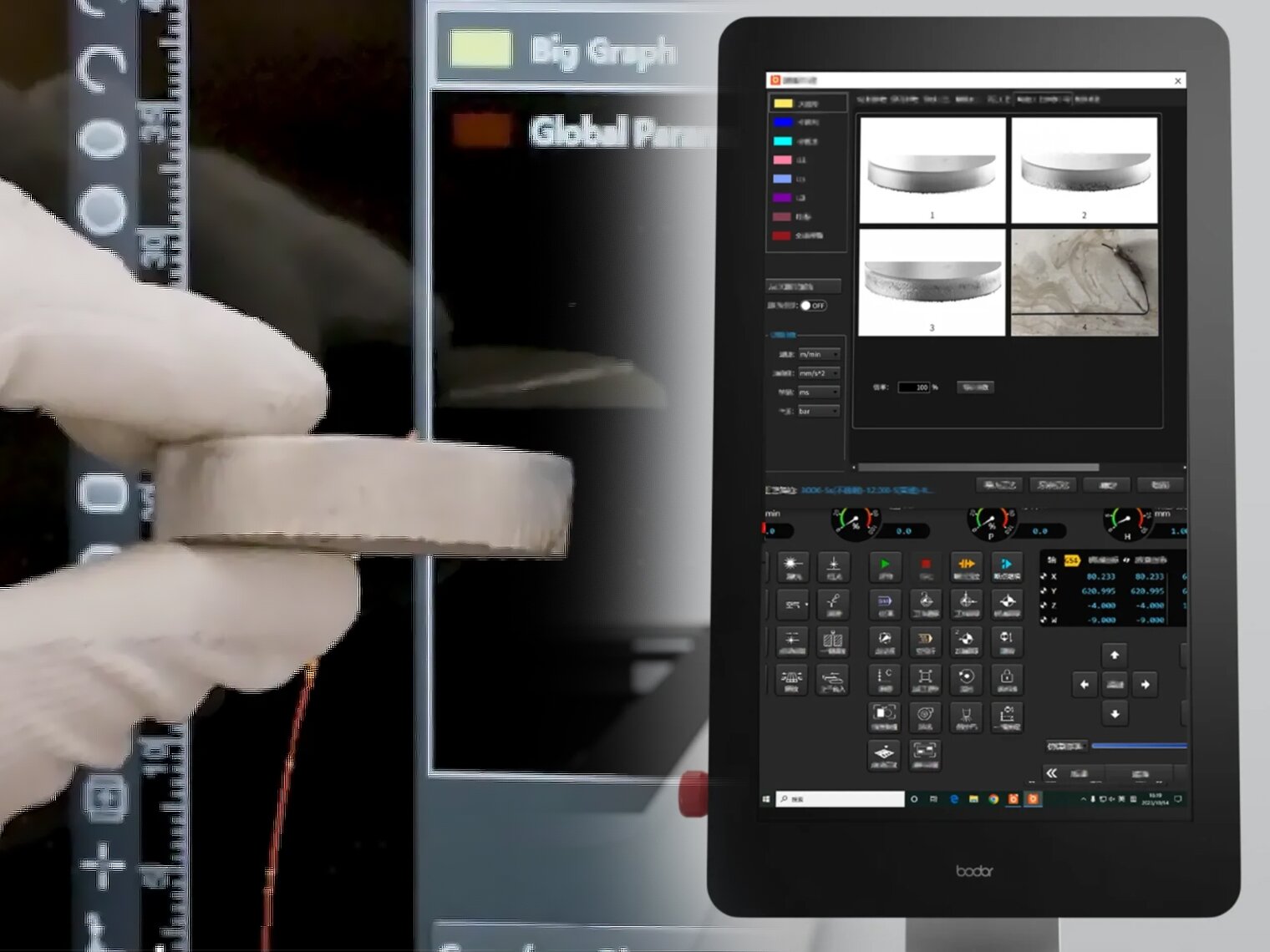

Intelligent BodorThinker Function - Cutting Parameter AutoMatch
The accuracy of cutting parameters is crucial for achieving consistent, high-quality laser cutting performance. However,manufacturers often encounter several challenges with cutting parameter settings in everyday machinery operations.
Firstly, laser processing with incorrect parameters can cause distortion in metal materials. Inputting and adjusting parameters is a common challenge for both beginners and experienced users alike. Traditional laser cutting processes require extensive hands-on training. Even with relevant skills and knowledge, achieving the best cutting results can be time-consuming, often requiring multiple correction attempts
Bodor Intelligent Cutting Parameter AutoMatch is a new addition to the BodorThinker control system that helps users select laser cutting processes and adjust parameters. It offers numerous advantages that effectively eliminate operational defects caused by incorrect cutting parameters.
MACHINE OPTIONS
Configure the P Series to Your Production

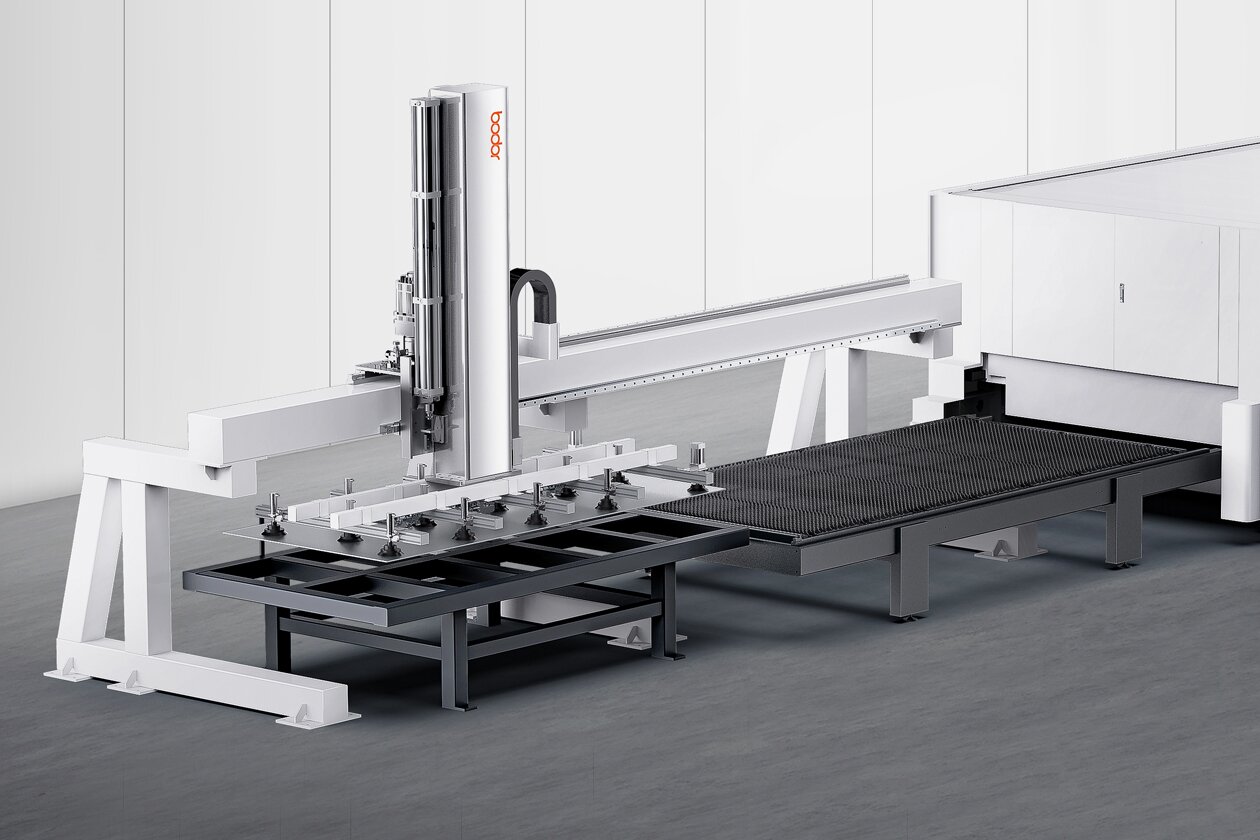

iLoader
Automatic sheet loading system

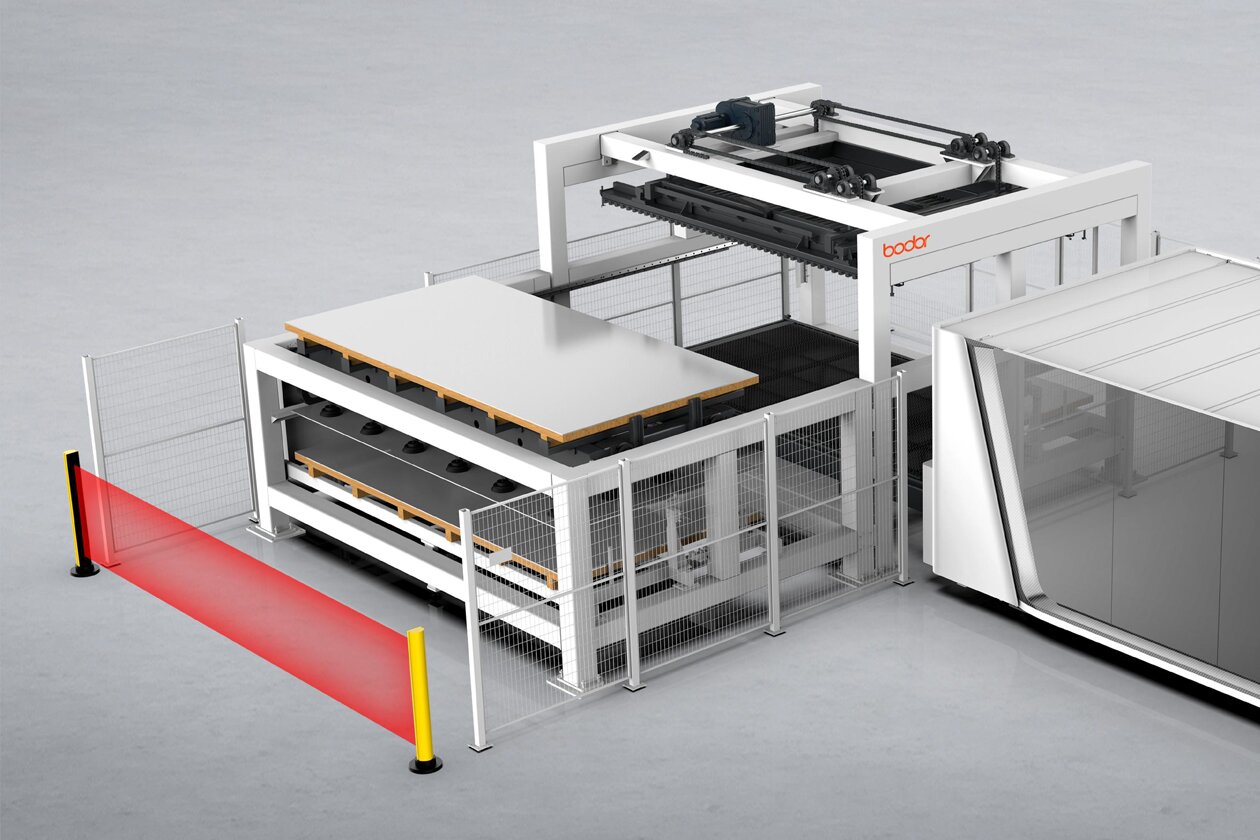

iTrans
Automated loading and unloading system

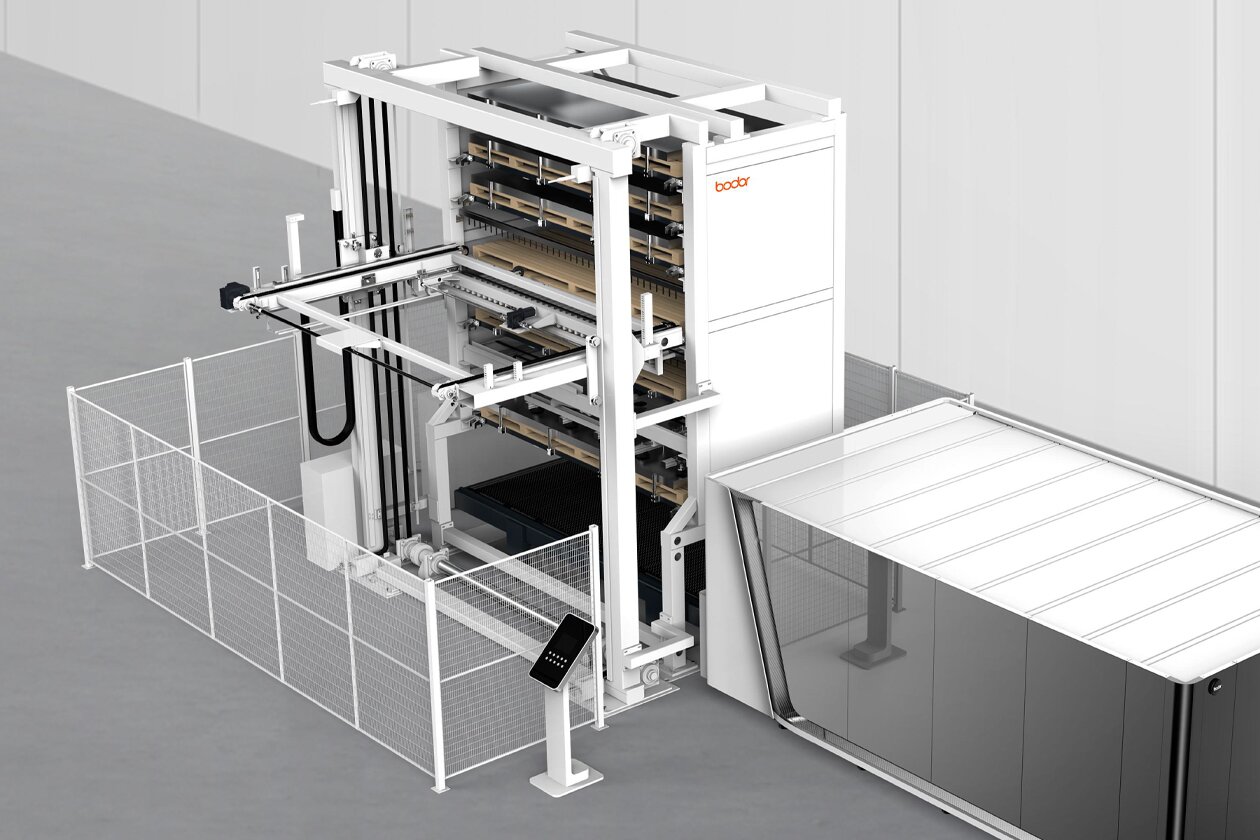

iTower
Single module storage tower

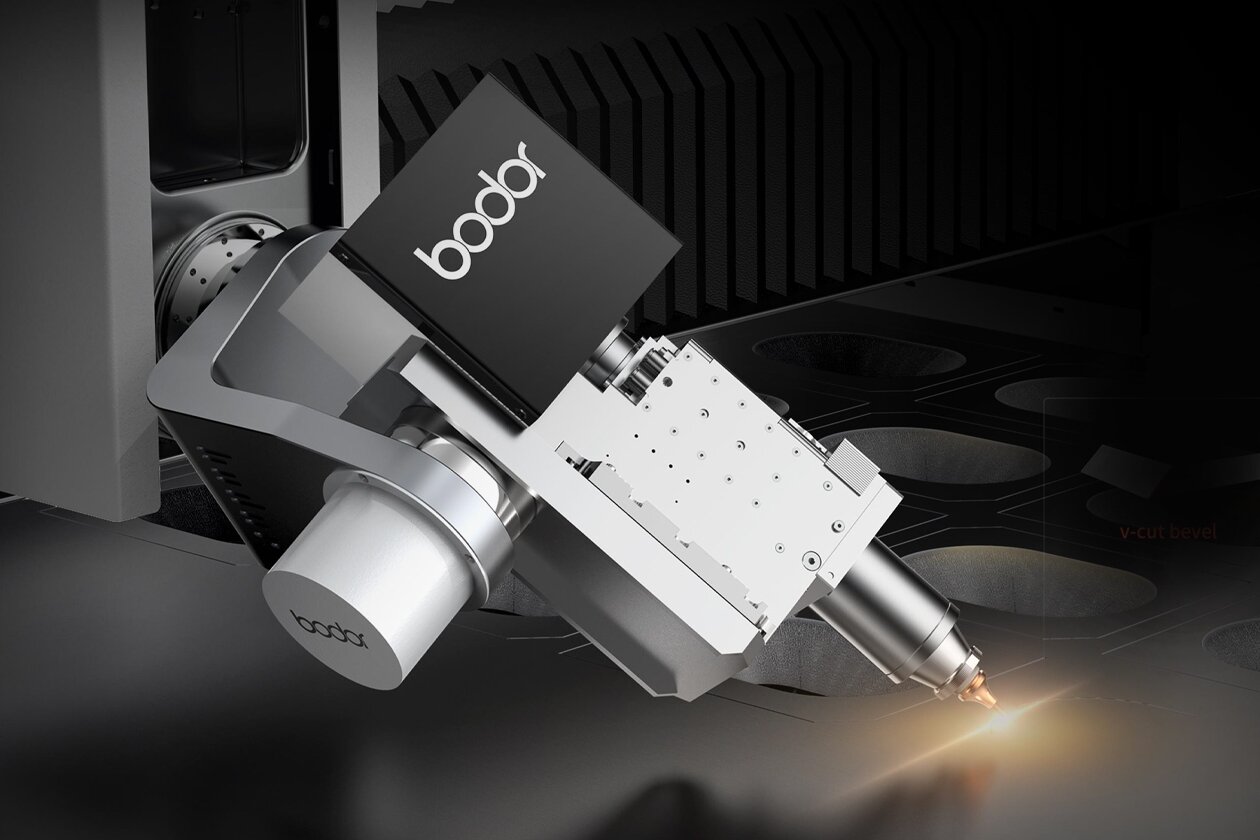

Bevel Cutting
A-cut, V-cut, Top Y-cut, X-cut and K-cut bevel

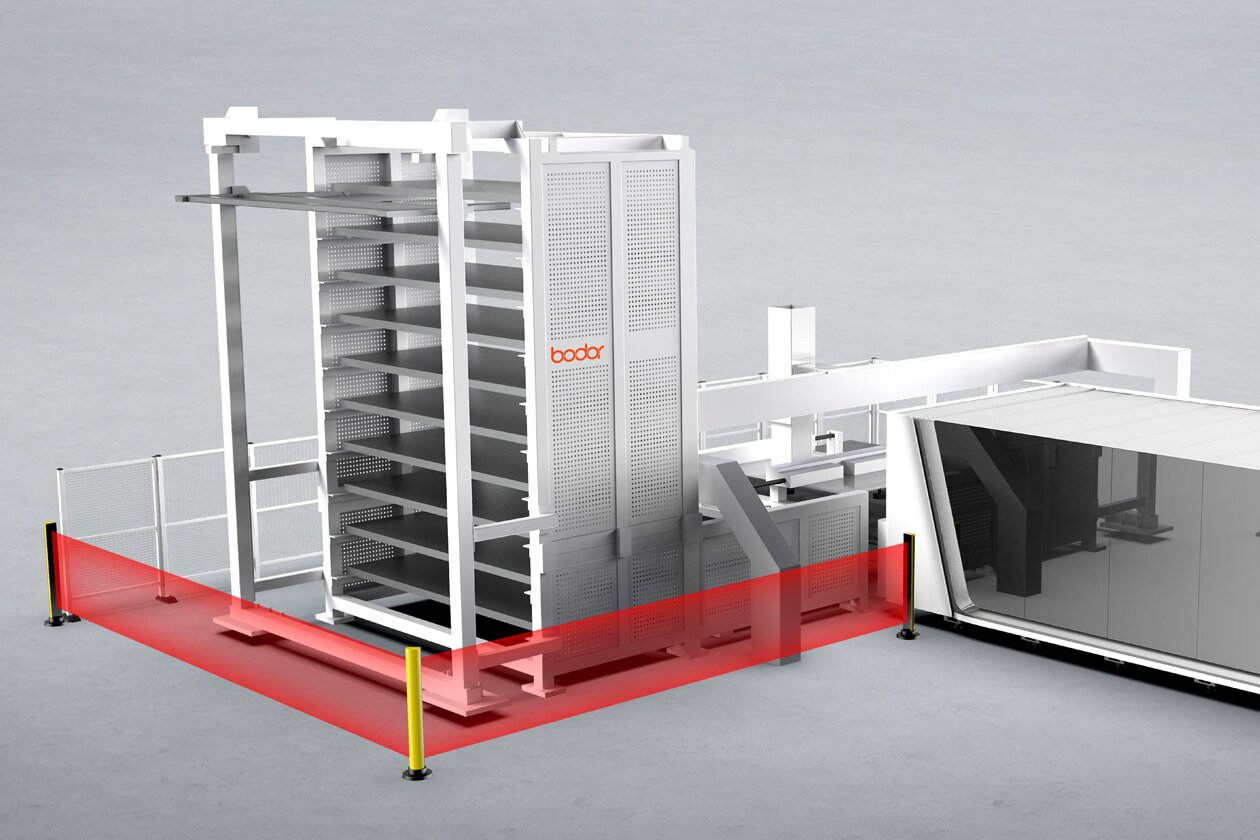

iTrans Tower
Storage tower loading and unloading system
BODOR P SERIES
Specifications
| Model | Bodor P3 | Bodor P4 | Bodor P6 | Bodor P8 | Bodor P12 |
|---|---|---|---|---|---|
| Power | 3/6/12/20/30/40/60 | 6/12/20/30/40/60 | 6/12/20/30/40/60 | 6/12/20/30/40/60 | 6/12/20/30/40/60 |
| Working Area | 3048 × 1524 | 4000 × 2000 | 6500 × 2500 mm | 8050 × 2500 mm | 12500 × 2600 mm |
| Acceleration | 4.0 | 4.0 | 2.8 | 2.8 | 2.8 |
| Positioning accuracy | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.05 |
| Repeated Positioning Accuracy | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.03 |
| Max. Load | 3kW: 1090 kg | 6–60kW: 1458 kg | 6–60kW: 2510 kg | 12–60kW: 5100 kg | 20–40kW: 6320 kg | 12–60kW: 10205 kg |
