Bodor C
Industrial Model | Fully Protective Sheet Laser Cutting Machine
The BODOR C Series Fibre Laser Cutting Machine is a high-performance, fully enclosed industrial solution engineered to deliver exceptional cutting precision, and outstanding operational efficiency. Designed for modern metal fabrication environments, the C Series delivers fast cutting speeds, smooth motion control, and superior edge quality across a wide range of materials.
Its precision engineered system reduces secondary processing requirements, improving throughput and maximise productivity while maintaining cost-effective operation for workshops and manufacturers.
1.5G - 120m/min Instant Positioning
Increase productivity and reduce operating costs.
The fully enclosed, Class 1 safety design with laser protective glass and laser light curtains ensures maximum operator safety while integrated dust and fume extraction points help maintain a safer, cleaner workspace.
The Bodor C Series is engineered to keep production moving at maximum efficiency, with streamlined automated operation reducing manual intervention, saving valuable time and boosting overall productivity.

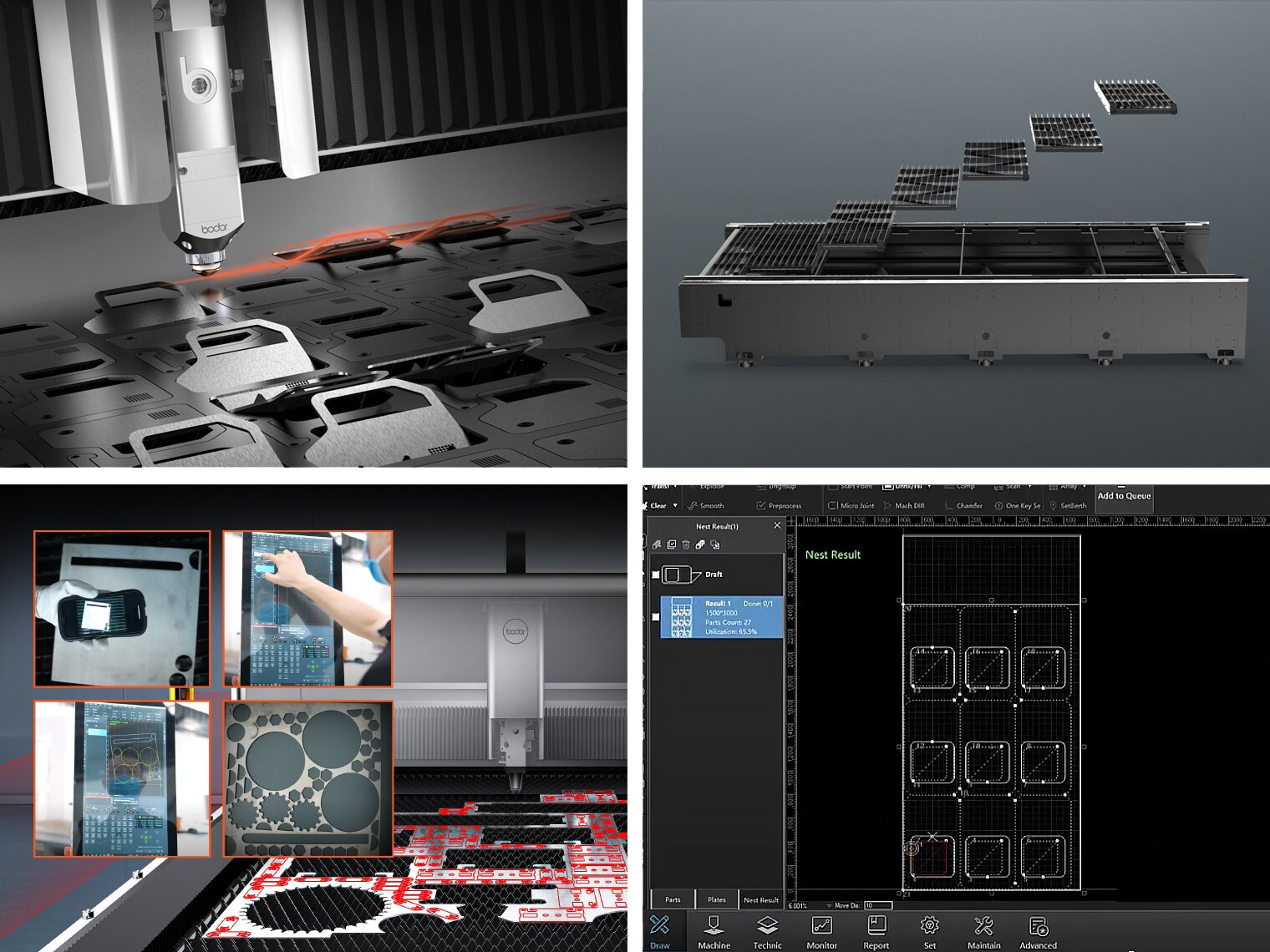

Active Obstacle Avoidance System

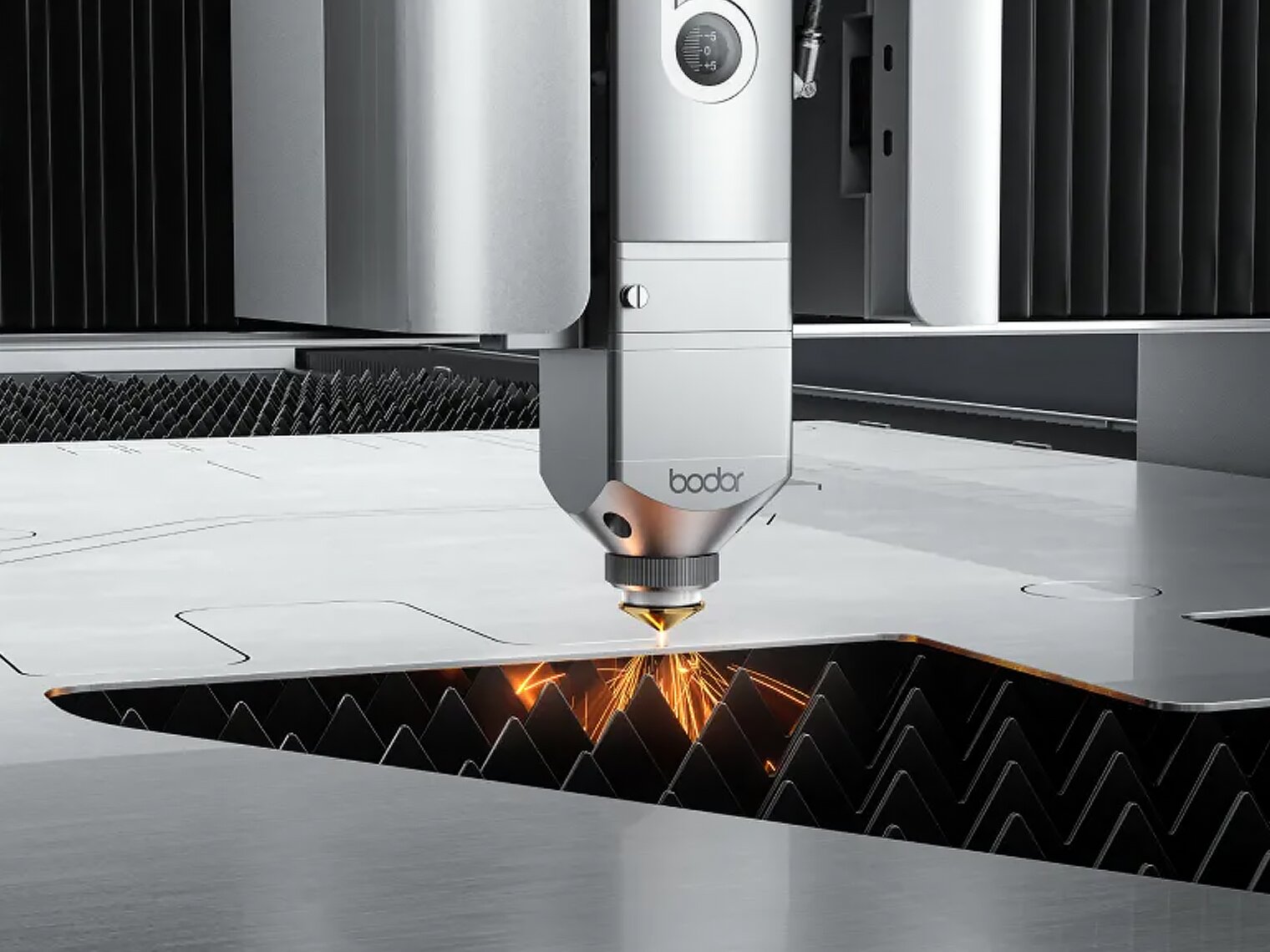

BodorGenius, Bodor's intelligent laser head, uses sensors and algorithms to detect potential obstacles such as tilting parts and automatically avoids collisions.
Dual Exchange Modular Table
The modular table design reduces maintenance costs and allows for customizable brackets and jigs.
Intelligent Remnant Layout
To achieve maximum material utilization, simply upload pictures of the remnants to the control system using your mobile phone. Enjoy the benefits of significantly increased cost savings.
Auto Nesting Software
Auto nest up to 50 individual parts, ensuring maximum efficiency and less waste.

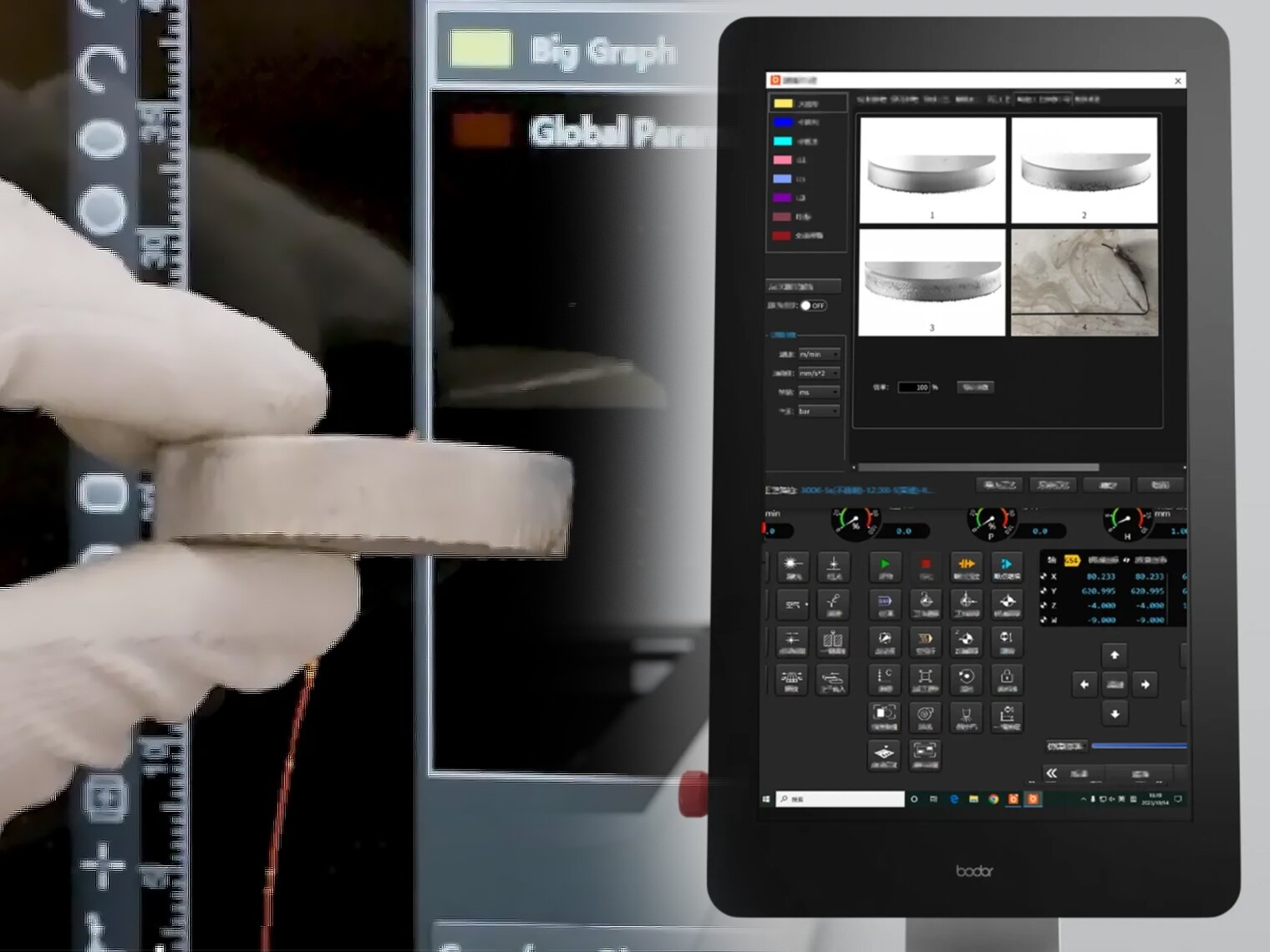

Intelligent BodorThinker Function - Cutting Parameter AutoMatch
The accuracy of cutting parameters is crucial for achieving consistent, high-quality laser cutting performance. However,manufacturers often encounter several challenges with cutting parameter settings in everyday machinery operations.
Firstly, laser processing with incorrect parameters can cause distortion in metal materials. Inputting and adjusting parameters is a common challenge for both beginners and experienced users alike. Traditional laser cutting processes require extensive hands-on training. Even with relevant skills and knowledge, achieving the best cutting results can be time-consuming, often requiring multiple correction attempts
Bodor Intelligent Cutting Parameter AutoMatch is a new addition to the BodorThinker control system that helps users select laser cutting processes and adjust parameters. It offers numerous advantages that effectively eliminate operational defects caused by incorrect cutting parameters.
MACHINE OPTIONS
Configure the C Series to Your Production

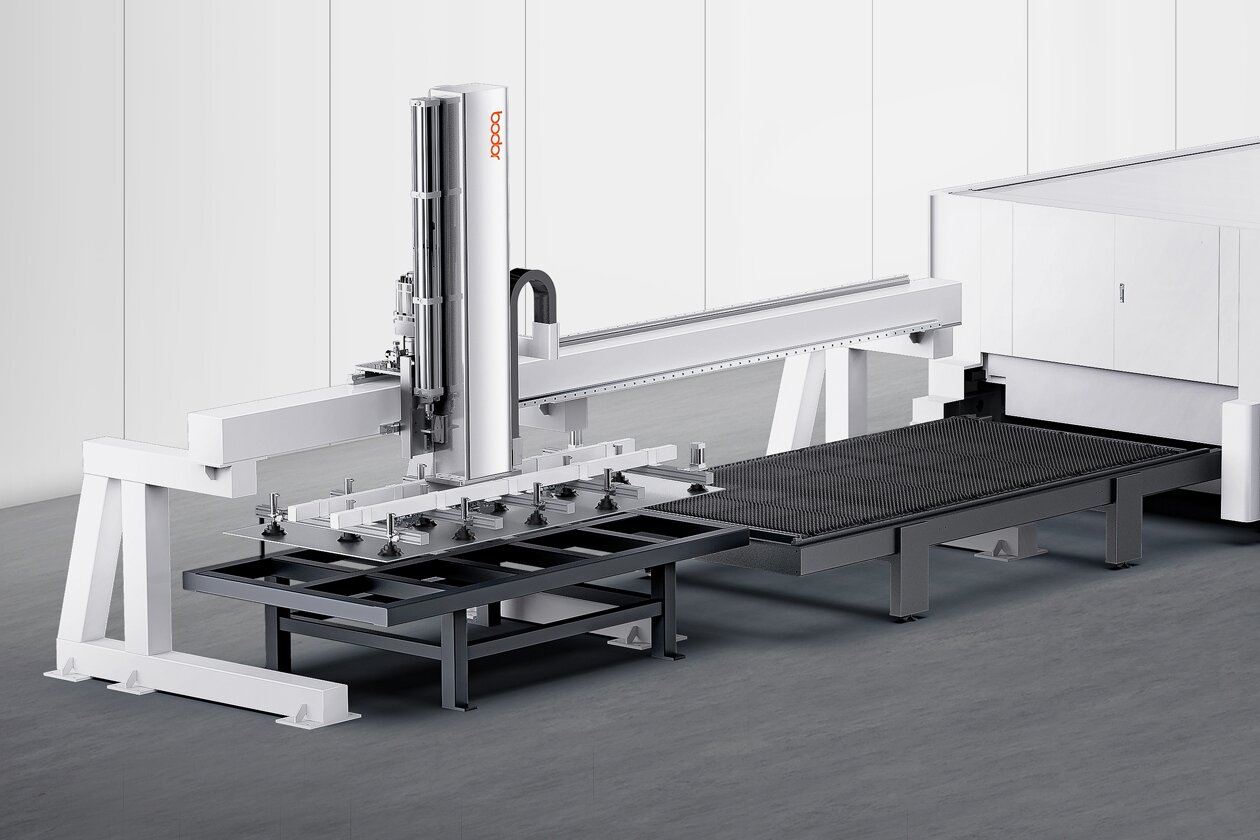

iLoader
Automatic sheet loading system
BODOR C SERIES
Specifications
| Model | Bodor C3 | Bodor C4 | Bodor C6 | Bodor C12 |
|---|---|---|---|---|
| Power | 3/6/12/20 Kw | 3/6/12/20 Kw | 6/12/20/30 Kw | 12/20/30/40/60 Kw |
| Working Area | 3048mm × 1524mm | 4000mm × 2000mm | 6100mm × 2500mm | 12200mm × 2500mm |
| Acceleration | 1.5G | 1.5G | 1.5G | 1.5G |
| Positioning accuracy | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m |
| Repeated Positioning Accuracy | ±0.03 mm | ±0.03 mm | ±0.03 mm | ±0.03 mm |
| Max. Load | 3-6kW: 911kg 12kW: 1095kg 20kW: 1458kg |
3-6kW: 1570kg 12kW: 1886kg 20kW: 2515kg |
6kW: 2995kg 12kW: 3595kg 20-30kW: 4794kg |
12kW: 7368kg 20-60kW: 9825kg |
