Bodor CT

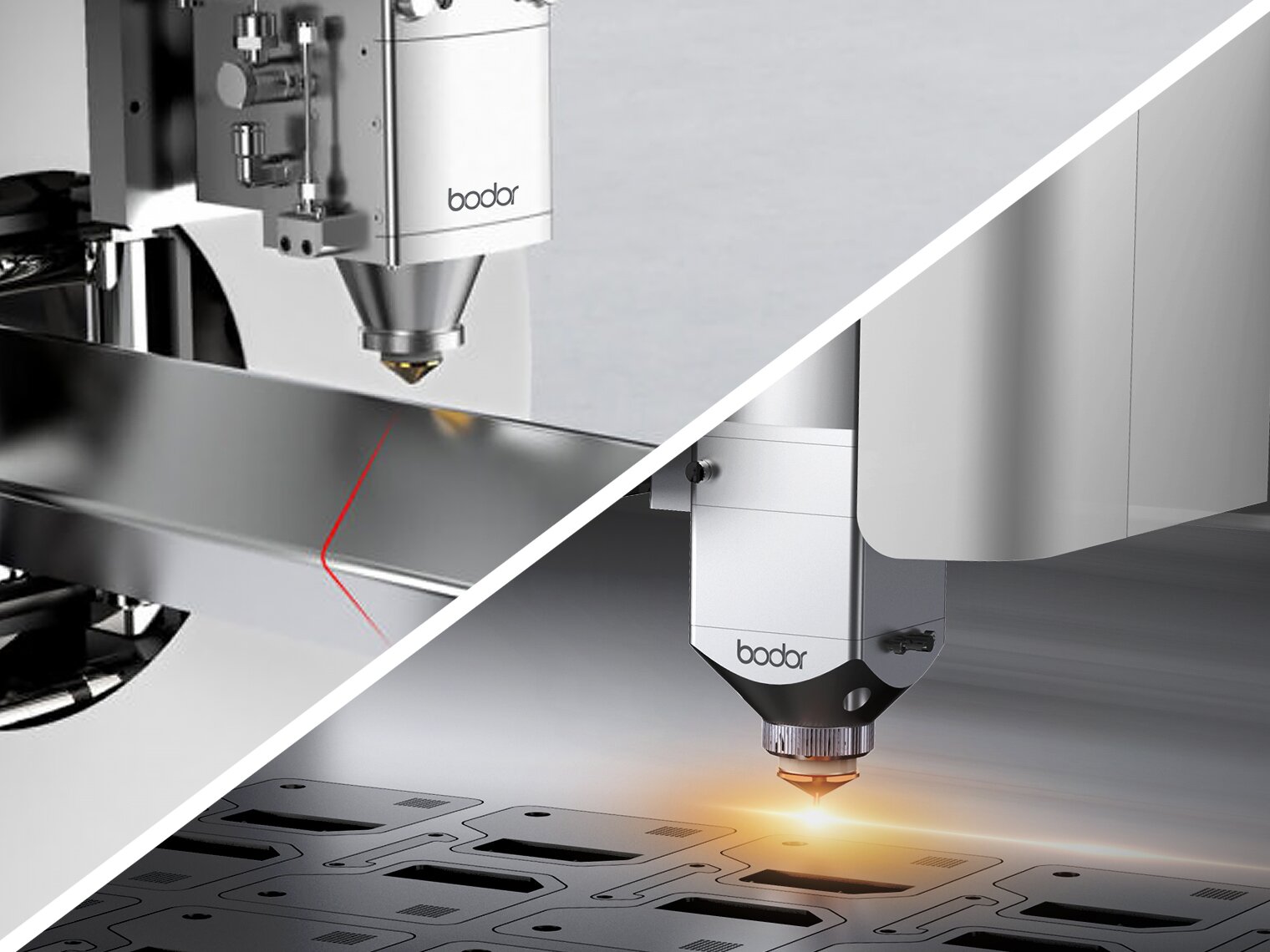

2 in 1 Model | Sheet & Tube Laser Cutting Machine
The Bodor CT series can process both sheet metal and tubes, meeting a variety of processing needs. Its high efficiency and cost-effectiveness make it a powerful tool in the field of metal cutting.
1.5G - 100m/min Instant Positioning
The CT provides a complete solution that offers accurate cutting across a wide range of tube and profile shapes, with quality and long-term value.
The fully enclosed, Class 1 safety design with laser protective glass and laser light curtains ensures maximum operator safety while integrated dust and fume extraction points help maintain a safer, cleaner workspace

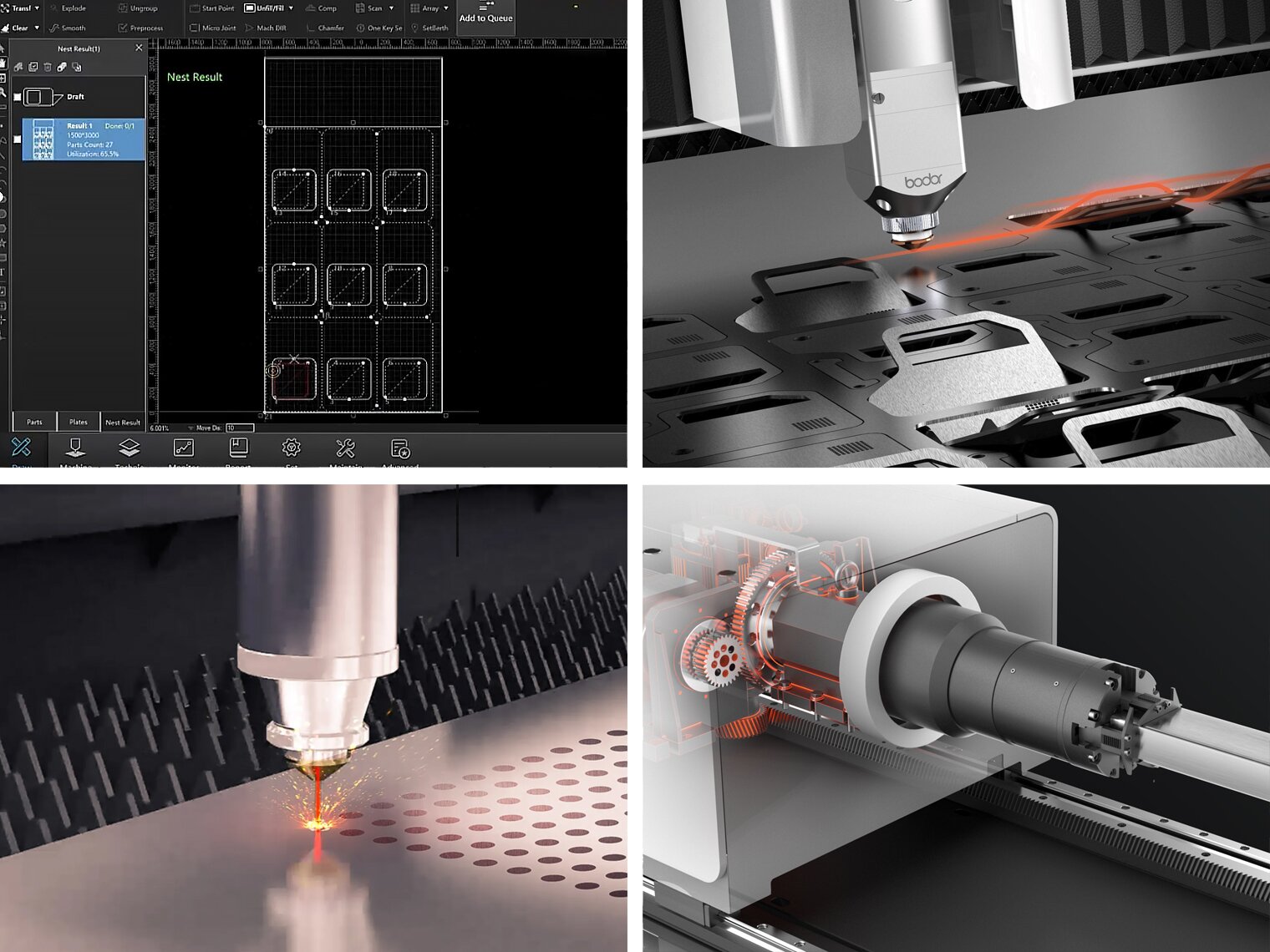

Auto NestingSoftware
Auto nest up to 50 individual parts, ensuring maximum efficiency and less waste.
Active Obstacle Avoidance System
BodorGenius, Bodor’s intelligent laser head, uses sensors and algorithms to detect potential obstacles such as tilting parts and automatically avoids collisions.
Lightning Piercing
Offers rapid and precise piercing with reduced time. It includes monitored processes for efficiency, automatic focus adjustment for seamless piercing. This enables quick piercing synchronized with the cutting head’s movement, optimizing operations for medium-thick plates without additional time or motion.
Fast Pneumatic Chuck
Adopting high-performance bus servo motors, significantly improving processing efficiency to ensure that every second you invest creates value. The pneumatic chucks adopt a direct cylinder push structure. With simple and efficient transmission, it can complete clamping in as fast as 2 seconds.

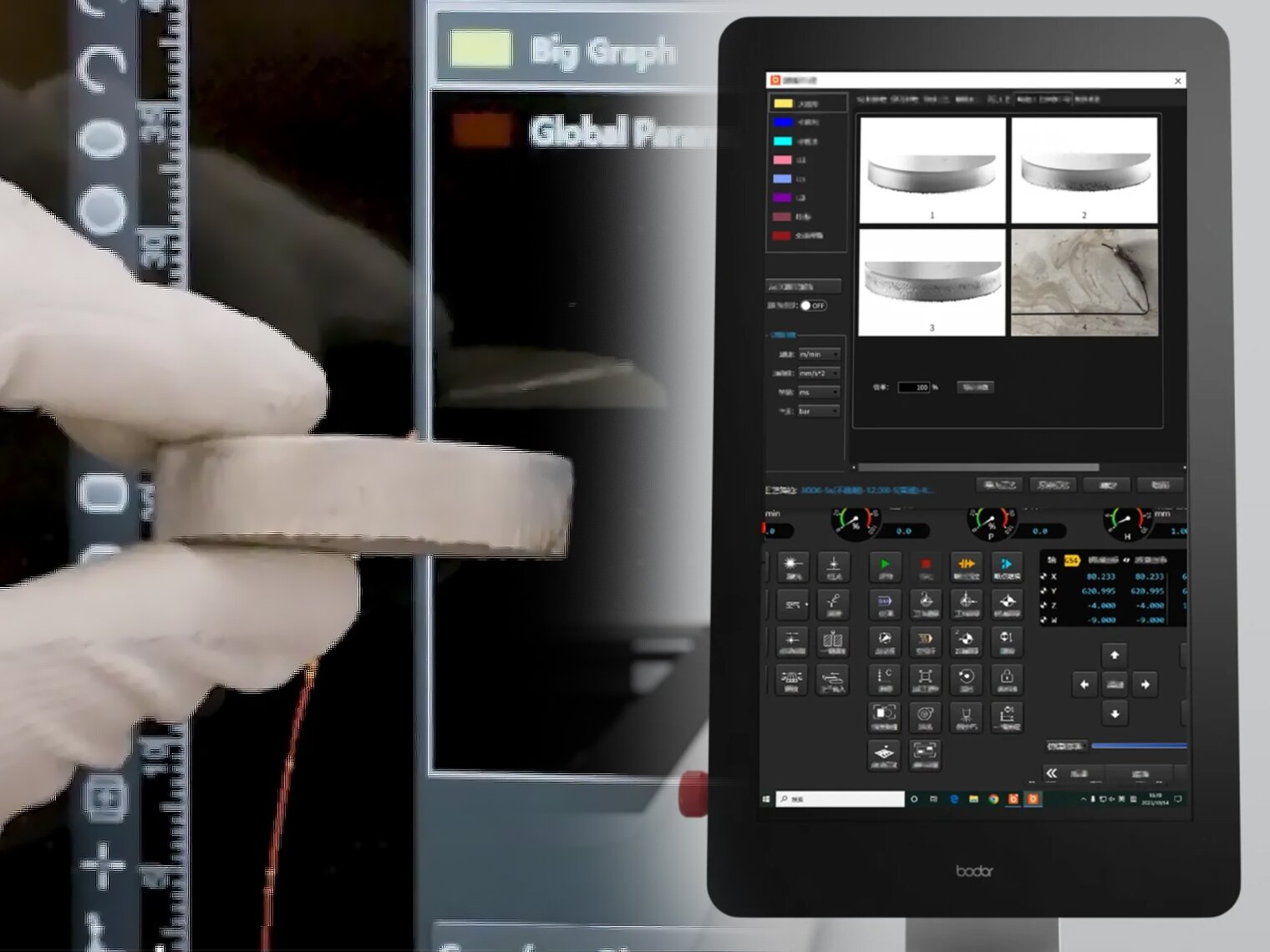

Intelligent BodorThinker Function - Cutting Parameter AutoMatch
The accuracy of cutting parameters is crucial for achieving consistent, high-quality laser cutting performance. However,manufacturers often encounter several challenges with cutting parameter settings in everyday machinery operations.
Firstly, laser processing with incorrect parameters can cause distortion in metal materials. Inputting and adjusting parameters is a common challenge for both beginners and experienced users alike. Traditional laser cutting processes require extensive hands-on training. Even with relevant skills and knowledge, achieving the best cutting results can be time-consuming, often requiring multiple correction attempts.
Bodor Intelligent Cutting Parameter AutoMatch is a new addition to the BodorThinker control system that helps users select laser cutting processes and adjust parameters. It offers numerous advantages that effectively eliminate operational defects caused by incorrect cutting parameters.
BODOR CT SERIES
Specifications
| Model | BODOR C3T |
|---|---|
| Power | 3/6 kW |
| Working Area Sheet | 3048mm x 1524mm |
| Tube Length | 6000mm |
| Tube Size Range | Ø20-Ø230mm |
| Acceleration | 1.5G |
| Positioning accuracy | ±0.05mm/m |
| Repeated positioning accuracy | ±0.03mm |
| Max Load Sheet | 3-6kW: 911kg |
| Max Load Tube | 200Kg |
