Discontinued
Order Code: ZB014
Description

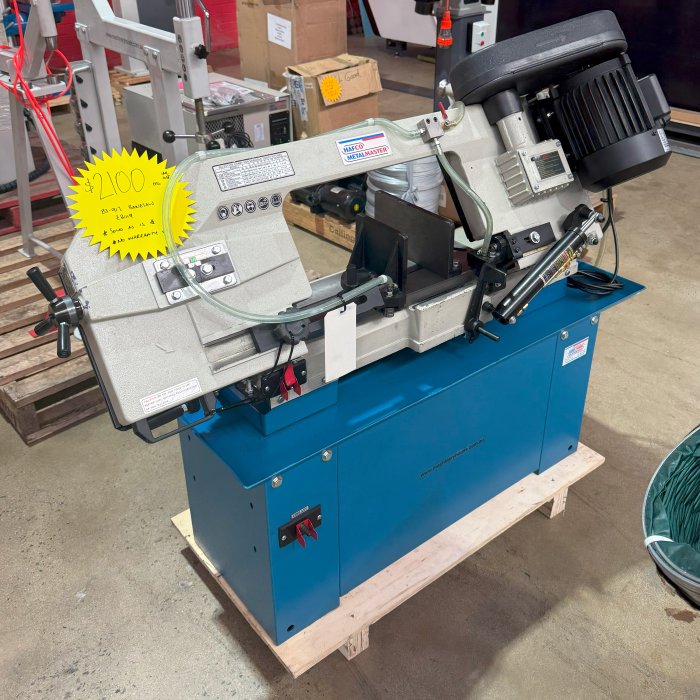

BS-912 - Metal Cutting Band Saw - Swivel Vice

Mitre Cuts Up To 45º, Quick Action Material Clamp & Includes Hydraulic Downfeed Control
305 x 178mm (W x H) Rectangle Capacity
Overview
Manufactured in Taiwan

The BS-912 is a larger 240 volt band saw suitable for the medium fabrication and general engineering workshops. It features increased motor power, four blade speeds, double row ball bearing blade guides, a built-in coolant system and greatly increased cutting capacity.

The downward cutting pressure is controlled by a fully adjustable hydraulic damper with an on/off valve and there is an automatic cut-off at the end of the cut. The vice rotates for mitre cutting and there is an adjustable material stop for consistent repeat length cutting.
Features
  • 305 x 178mm (W x H) rectangular capacity
  • Adjustable hydraulic feed cutting rate for multiple applications
  • Mitre cuts to 45º using calibrated vice
  • Built-in coolant system to both blade guides for maximum cutting efficiency
  • Limit switch stops machine when cut is complete
  • Quick action material clamping lever
  • Adjustable blade roller guides provides accurate cutting
  • Adjustable 4-speed pulley drive system enabling 26-50-73-95mpm cutting speeds
  • Adjustable length stop for repetition cutting
  • Wire wheel brush to clean swarf from blade
  • Portable - on wheels for ease of use
  • Automatic electric cut-out switch
  • Heavy-duty 750W 240V fully enclosed fan-cooled motor

  • Operation Type - Fixed Head
  • Round @ 90º - 230mm
  • Round @ 45º - 150mm
  • Square @ 90º - 230mm
  • Square @ 45º - 127mm
  • Rectangle (W x H) @ 90º - 305 x 178mm
  • Rectangle (W x H) @ 45º - 150 x 127mm
  • Coolant System - Yes
  • Table Working Height - 640mm
  • Cutting Head Beam Type - Manual
  • Cutting Head Beam Return - Manual Return
  • Cutting Head Down Feed Control - Adjustable Hydraulic
  • Vice Clamping Fixture - Manual
  • (Blade Steps / Speeds - 26-50-73-95m/min
  • Blade Size (L x W x T) - 2654 x 27 x 0.9mm
  • Motor Power - 0.75kW / 1 hp)
  • Voltage / Amperage - 240V / 10amp
  • Nett Weight - 185kg
