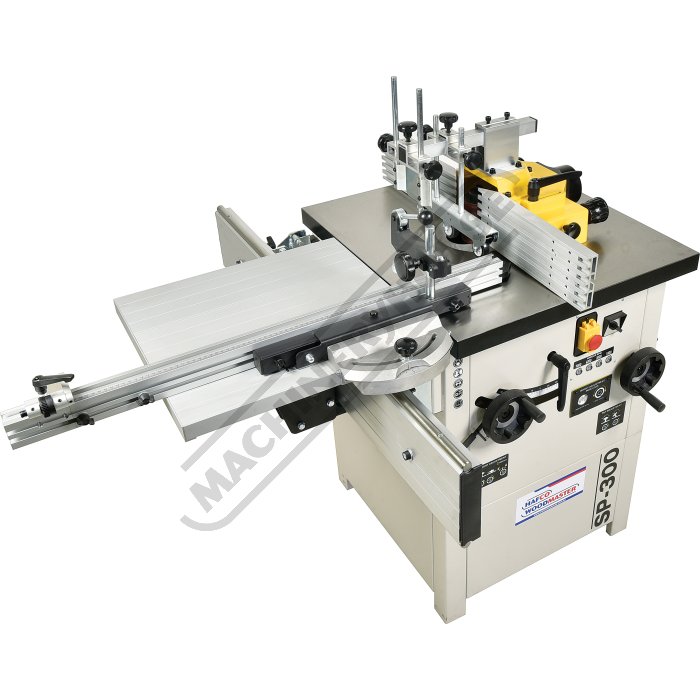

Spindle Moulder
  • 1 of 7
  • 2 of 7

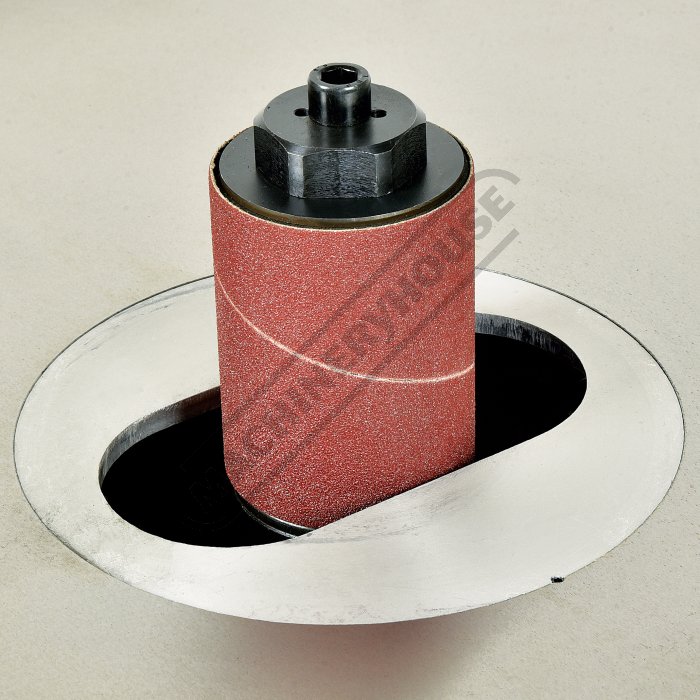

    Sanding Attachment
  • 3 of 7

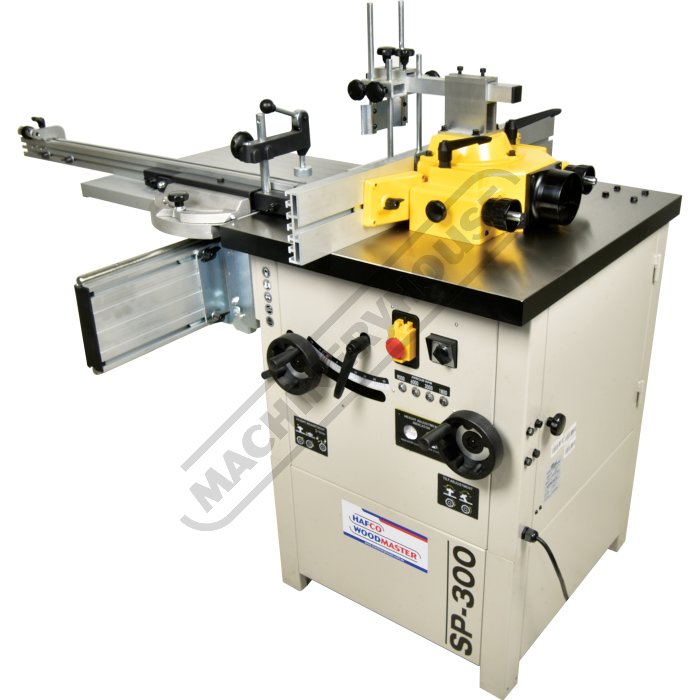

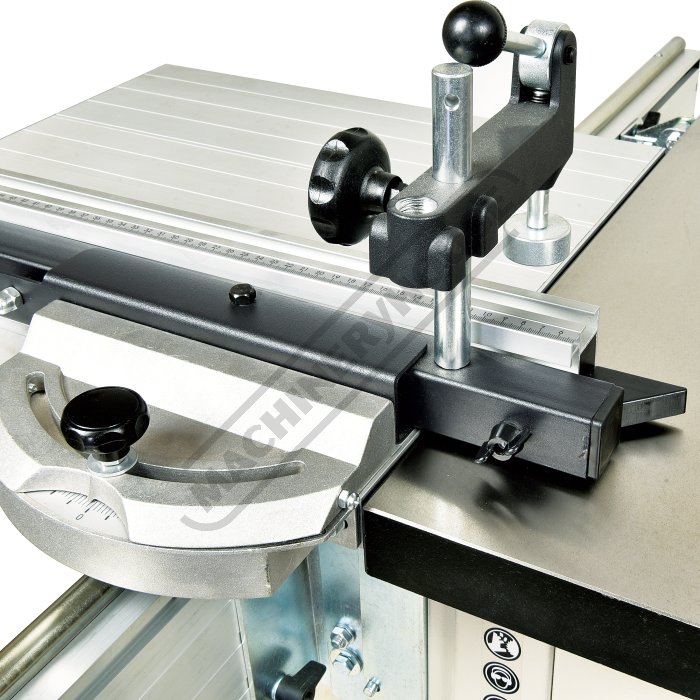

    Sliding Table with Mitre Guide & Top Clamp
  • 4 of 7

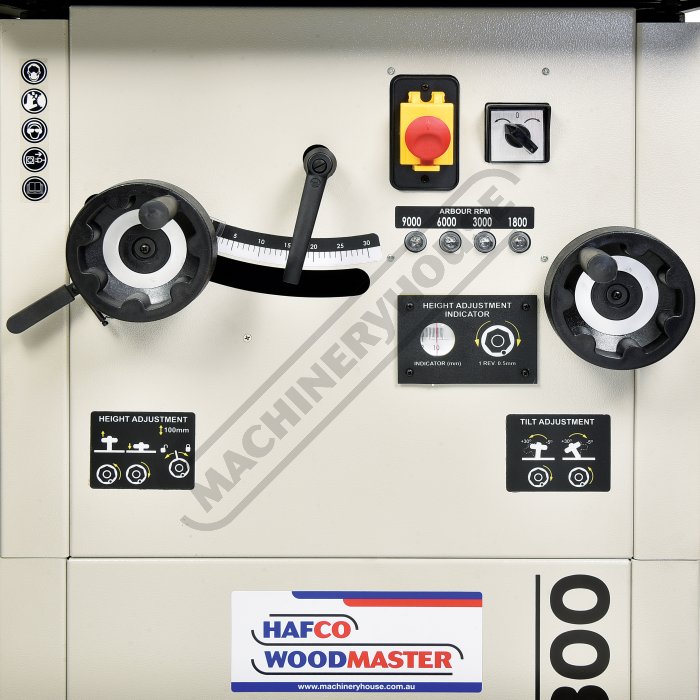

    Spindle Adjustment Controls
  • 5 of 7

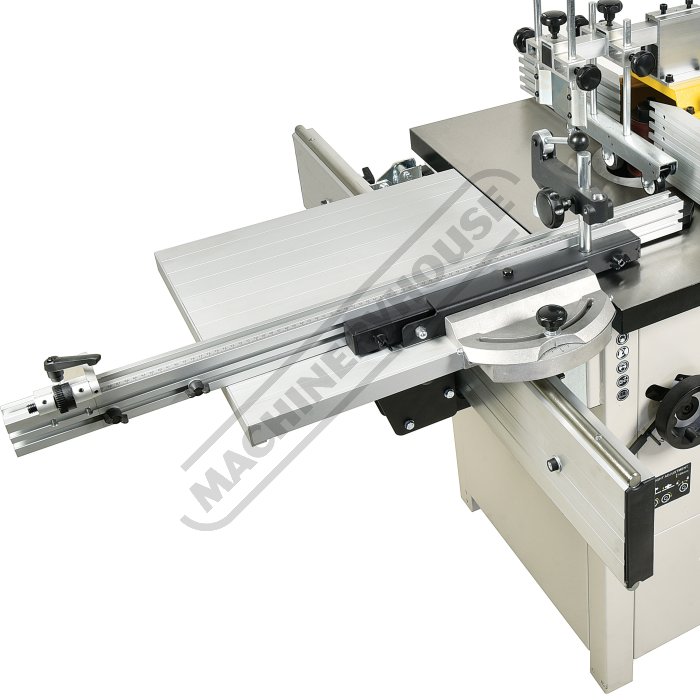

    Includes Sliding Table
  • 6 of 7

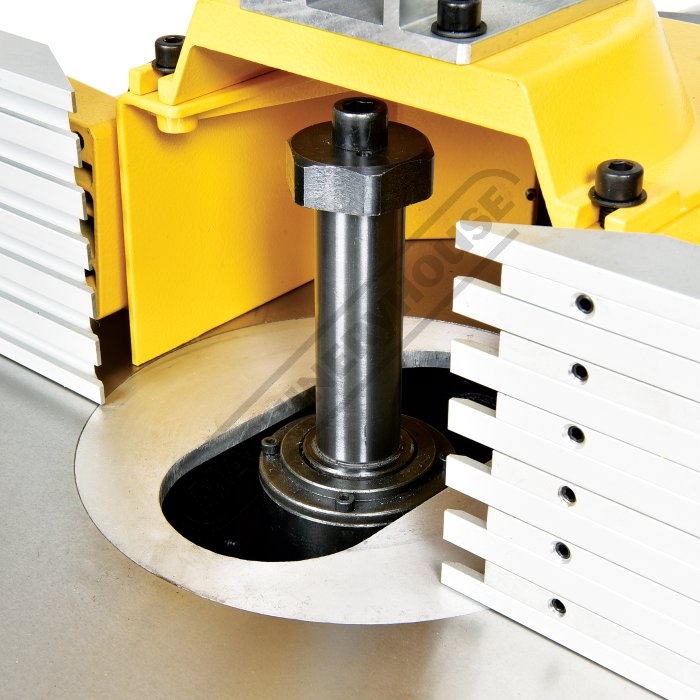

    30mm Tilting Spindle
  • 7 of 7

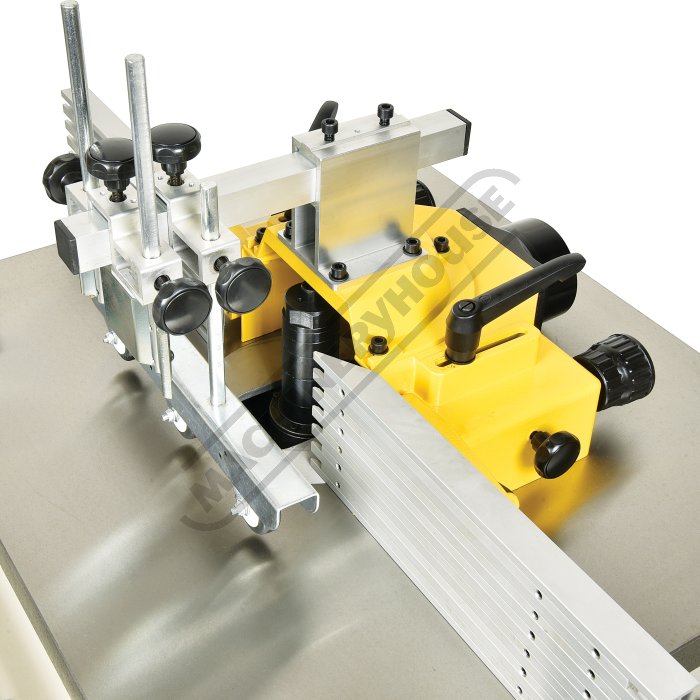

    Cutter Guard with Dust Chute
Order Code: W640

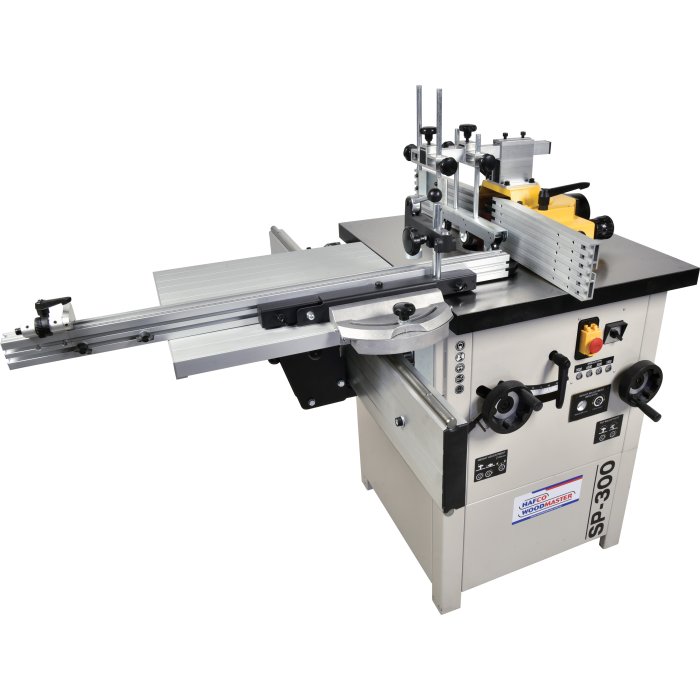

SP-300 - Spindle Moulder (240V)
710 x 640mm Table Size
Table Size (mm)
710 x 640
Spindle Speeds (rpm)
1800, 3000, 6000, 9000
Spindle Diameter (mm)
Motor Power (kW / hp)
2.8 / 3.75
Voltage / Amperage (V / amp)
240 / 15
Floor Space (W x D x H) (mm)
1230 x 1500 x 1300
Shipping Dimensions (L x W x H) (mm)
1210 x 700 x 1130
Nett Weight (kg)
  • Tilting arbor to 30º for various profiles
  • 710 x 640mm cast iron work table
  • Cast cutter guard with Ø100mm dust collector port
  • 30mm spindle
  • 90mm spindle travel
  • 200mm spindle length
  • Rise and fall adjustment and spindle lock for easy cutter change
  • 4 spindle speeds with FWD/REV 1800, 3000, 6000, 9000rpm
  • 900mm table height
  • Includes sliding table with mitre, micro adjustment aluminium fence and top clamp
  • 2.8kW / 3.75hp 15Amp 240V motor
  • Sliding table
  • Mitre guide
  • Cutter guard
Optional Accessories
  • 30mm Cutter Head with Blades (W647)
