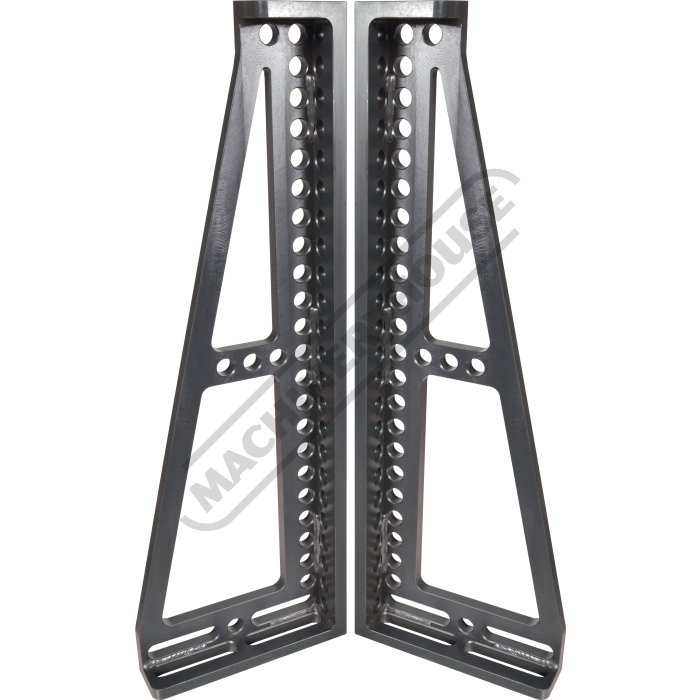

    Rear View
  • 5 of 9
    Shown Attached to Optional 3D FabBlock Welding Table 1
  • 6 of 9
    Shown Attached to Optional 3D FabBlock Welding Table 2
  • 7 of 9
    Shown Attached to Optional 3D FabBlock Welding Table 3
  • 8 of 9
    Shown Attached to Optional 3D FabBlock Welding Table 4
  • 9 of 9
    Round Tube Setup with Optional Accessories
Order Code: W07852
FW6030 - CertiFlat FabWing
600 x 300mm
Tab & Slot U-Weld
CertiFlat FabWing
Tab & Slot U-Weld
Suits Table Size
150mm Height
600 x 300mm
Certiflat Welding Tables
Nett Weight (kg)
Our new fabWings are the perfect compliment to CertiFlat’s fabBLOCK system and ideal to use as stand-alone tables for odd shaped and cramped spaces.
Fabwings can be used in conjunction with any of our fabBLOCK tables as side table extensions, 90 degree working surfaces, or upside down as a nice storage shelf when not in use.

All fabWing feature the same heavy duty construction and Heat-Zone™ Tab and Slot construction as our fabBLOCK's. Fab wings are available in 150mm, 300mm, 600mm, 900mm & 1200mm lengths and 300mm wide as standard.
  • Heavy Duty construction from 6.35mm thick Hot Rolled Pickled & Oiled steel
  • Heat-Zone™ Tab and Slot design methodology for an easy to build, flat surface
  • High precision Ø16mm holes on 50mm centres to work with industry standard tooling
  • Infinite number of configurations to let you quickly assemble the size welding table you want
Optional Accessories
  • Join fabWings to fabBLOCK's using Socket Shoulder Screw Set (W08060)
