WELD CLASSPROMAX 350
Auto Darken Welding Helmet - 9~13 Shade
  • 1 of 11
    W002
  • 2 of 11
    Front View
  • 3 of 11
    Side View
  • 4 of 11

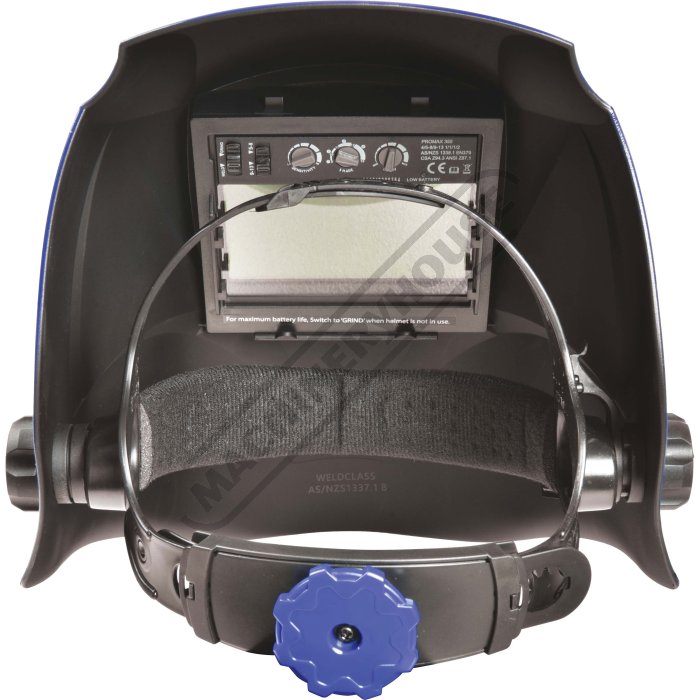

    Top View
  • 5 of 11

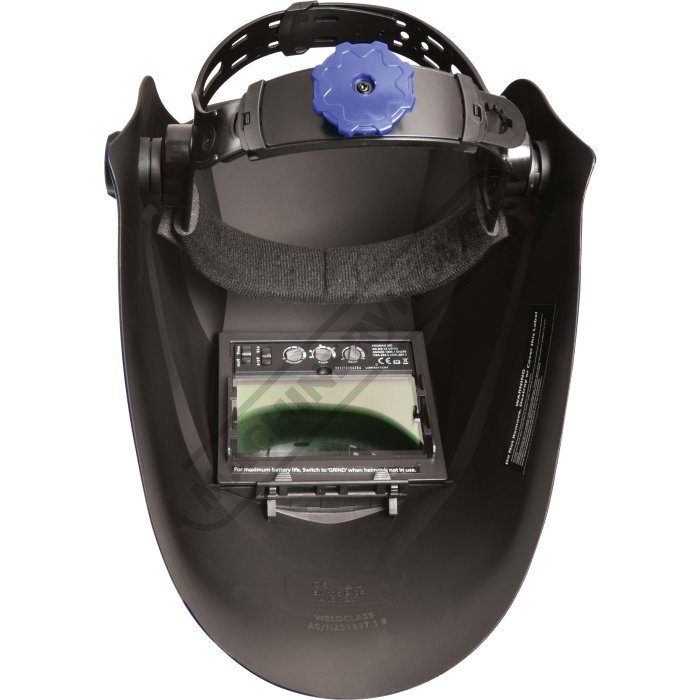

    Rear View
  • 6 of 11
    Rear Side View
  • 7 of 11

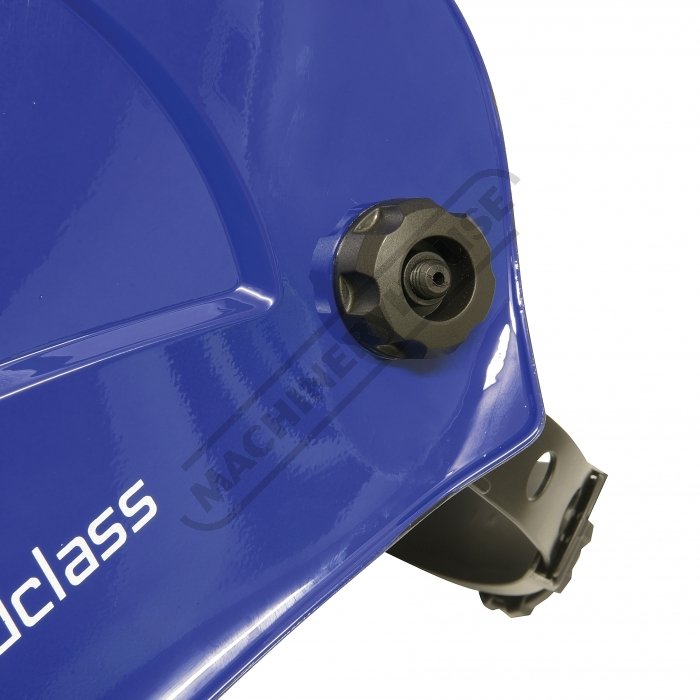

    Head Brace Tightening Dial
  • 8 of 11

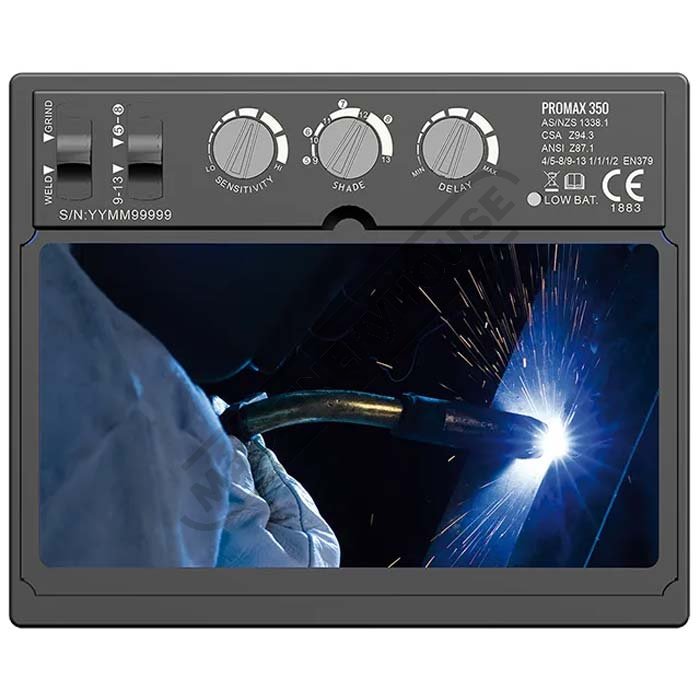

    Sensor Controls
  • 9 of 11

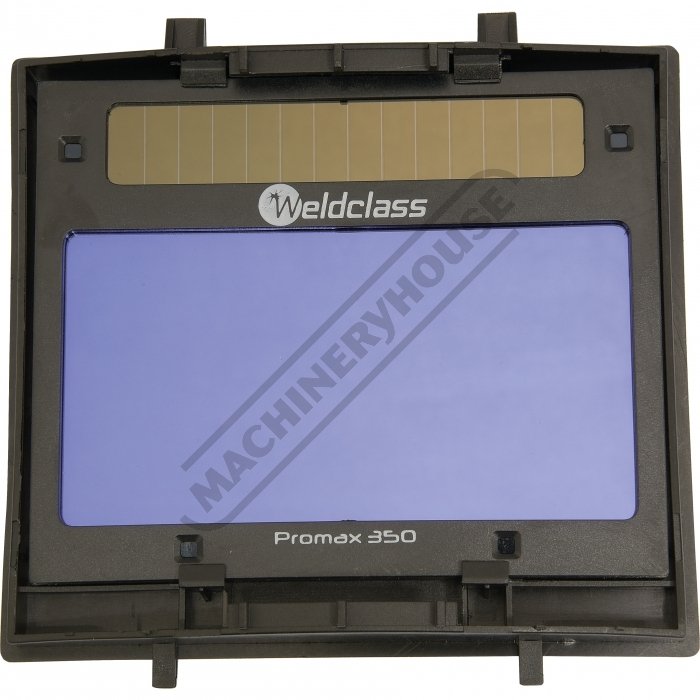

    Front View Area
  • 10 of 11
    Spare Lens
  • 11 of 11

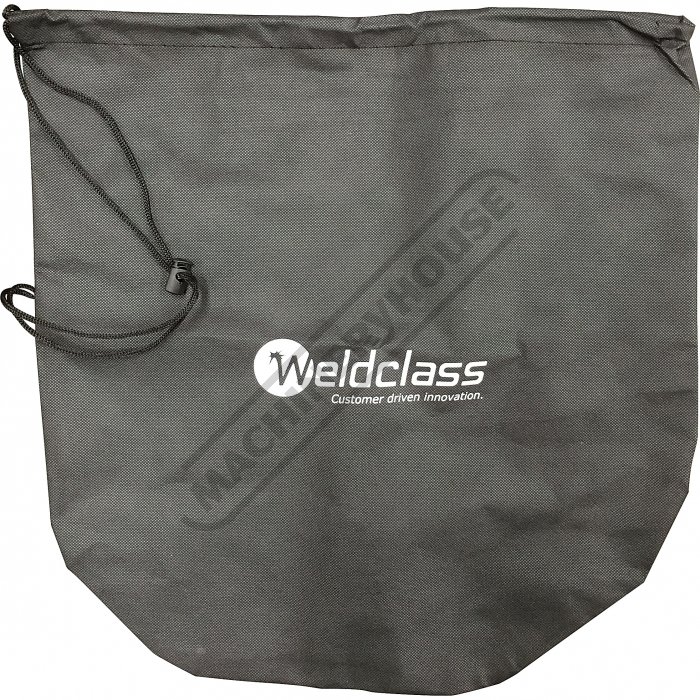

    Helmet Bag
Order Code: W002
PROMAX 350 - Auto Darken Welding Helmet - 9~13 Shade
Suits Mig, Tig, Arc & Grinding
Includes Grinding Function
WELD CLASS
On Special - Ends 18th November 2017
ex GST
inc GST
$120.00
$132.00
$100.00
$110.00

ORDER CODE
W002
MODEL
PROMAX 350
Viewing Area (mm)
100 x 53
Arc Sensors (No.)
4
Shade
9 ~ 13
Shade Control
Internal Variable Shade
Power On/off
Fully Automatic
Sensitivity Control
Adjustable Dial, Low ~ High
Helmet Power Supply
Solar Cell, Battery Change

Required (1 x CR2032

lithium battery)
Switching Time Light To Dark
1/30,000 (0.00003) sec
Delay Time Dark To Light (Seconds) (sec)
0.1 ~ 1.0
TIG Rated Minimum (amp)
30
Grinding Function (Yes / No)
Yes - ON/Of Switch
Inactive Shade (Grind/Off)
Shade 4
Operating Temperature (ºC)
-5ºC ~ +55ºC
Storing Temperature (ºC)
-10ºC ~ +65ºC
Helmet Material
High Impact Nylon
Total Weight (g)
480
Application Range
Stick, Mig, Tig, Arc Welding

& Grinding
Standard
Lens: AS/NZS1338.1,

EN379, ANSI Z87.1,

CSA Z94.3

Shell: AS/NZS1337.1

High Impact EN 175 B,

ANSI Z87.1, CSA Z94.3
Description
WHY CHOOSE PROMAX 350?
> Enjoy a generous viewing area - larger than many other helmets in this class (100 x 53mm)
> Ultra-clear vision
> 4 Arc Sensors for reliable arc detection & switching
> Grind-Mode, locks the lens in light shade at the flick of a switch
> AS1337.1 High-impact rated a must for many work sites

APPLICATION INFO:
> Ideal for MIG & Stick Welding, also suits TIG applications down to 30 amps
> For: Light to medium fabrication, rural, maintenance, etc
Features
  • Functions: Variable Shade 9-13, Sensitivity & Delay Adjustments, plus Grind-Mode switch (locks the lens in light shade)
  • High-Impact tested and rated to Australian standard AS1337.1
  • Auto-darkening lens complies with AS1338.1
  • 'Hinge & Lock' Lens Retainer System = Easy cover lens replacement, Seals tightly against spatter to prevent damage to electronic lens
  • Magnification lens holder - takes standard magnification lenses
  • Reliable Power Source: Replaceable battery plus solar assist, efficient electronics for low power consumption
  • 'Full Laminate' Lens Construction: Each layer in the electronic lens assembly is firmly laminated for superior optical quality and long service life. This is in contrast to cheaper lenses which are simply glued on the edge and, over time, are prone to contamination and failure.
  • Lightweight, Durable and Shock Resistant shell
  • Switching speed: 1/30,000 (0.00003) sec
  • Auto-on & Auto-off = No buttons to press, Hassle-Free operation
  • Magnification lens holder accepts 108 x 51mm magnification lenses
  • 2 year/24 month Warranty - Up to 100% longer than other helmets in this class
Includes
  • 1 x Cover Lens - Inner 106mm x 59mm
  • 1 x Cover Lens – Outer 115 x 104mm
