TOOLMASTER
SKU: T448
ex-gst
inc-gst
$ 241.00
$ 265.10
1 Year Warranty
Made in Taiwan
Description

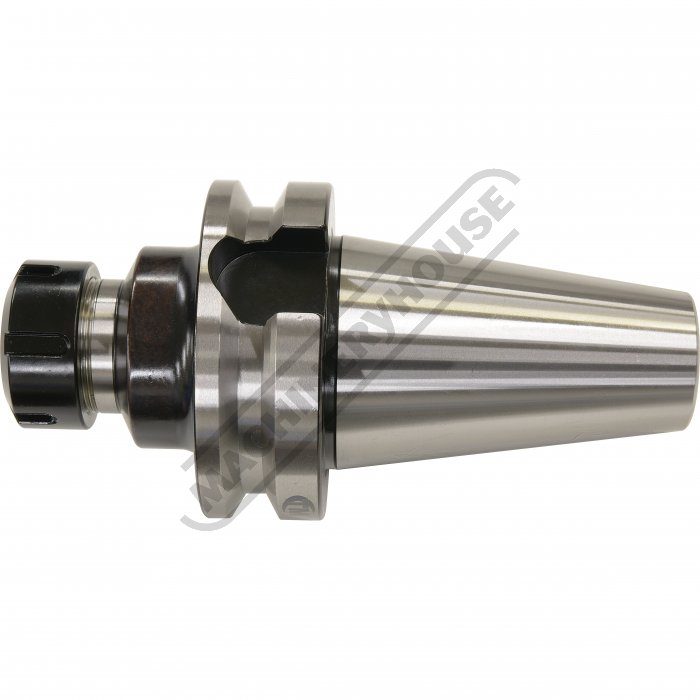

BT50 x ER32-100 - Collet Chuck ER

3-20mm
Overview
All BT collet chucks meet the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 - 85% taper contact) and are rated to 10,000 rpm (balancing available to 15,000 rpm)

Spanner not included
Features
  • Precision ground
  • Manufactured to MAS403BT50 standard
  • M24 Pull Stud thread
  • 100mm extension from the gauge line
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • MODEL
  • (rpm)Rated - Revolutions Per Minute
  • (BT)Taper
  • (mm)Capacity

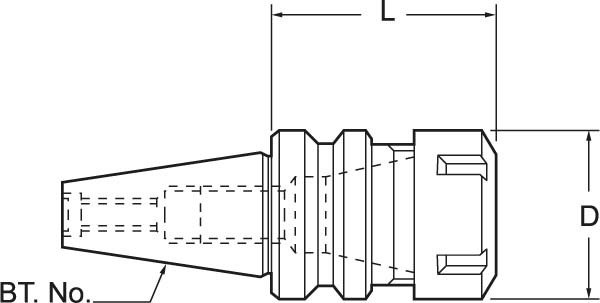

  • (mm)L
  • (mm)D
  • (ER)Collet Type
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • T332
  • Compare
  • Wishlist
  • T332
  • BT30 x ER32-60
  • 10,000
  • BT30
  • 2 - 20
  • 60
  • 50
  • ER32
  • 0.8
  • $126.50
  • $139.15
  • ADD TO CART
  • T203
  • Compare
  • Wishlist
  • T203
  • BT40 x ER16-70
  • 10,000
  • BT40
  • 0.5 - 10
  • 70
  • 28
  • ER16
  • 1.3
  • $121.00
  • $133.10
  • ADD TO CART
  • T204
  • Compare
  • Wishlist
  • T204
  • BT40 x ER16-100
  • 10,000
  • BT40
  • 0.5 - 10
  • 100
  • 28
  • ER16
  • 1.4
  • $131.00
  • $144.10
  • ADD TO CART
  • T208
  • Compare
  • Wishlist
  • T208
  • BT40 x ER20-70
  • 10,000
  • BT40
  • 2 - 13
  • 70
  • 34
  • ER20
  • 1.7
  • $121.00
  • $133.10
  • ADD TO CART
  • T209
  • Compare
  • Wishlist
  • T209
  • BT40 x ER20-100
  • 10,000
  • BT40
  • 2 - 13
  • 100
  • 34
  • ER20
  • 1.7
  • $131.00
  • $144.10
  • ADD TO CART
  • T214
  • Compare
  • Wishlist
  • T214
  • BT40 x ER25-70
  • 10,000
  • BT40
  • 2 - 16
  • 100
  • 42
  • ER25
  • 1.7
  • $131.00
  • $144.10
  • ADD TO CART
  • T215
  • Compare
  • Wishlist
  • T215
  • BT40 x ER25-100
  • 10,000
  • BT40
  • 2 - 16
  • 100
  • 42
  • ER25
  • 1.7
  • $142.00
  • $156.20
  • ADD TO CART
  • T220
  • Compare
  • Wishlist
  • T220
  • BT40 x ER32-70
  • 15,000
  • BT40
  • 2 - 20
  • 70
  • 50
  • ER32
  • 1.7
  • $104.50
  • $114.95
  • ADD TO CART
  • T224
  • Compare
  • Wishlist
  • T224
  • BT40 x ER32-100
  • 10,000
  • BT40
  • 2 - 20
  • 100
  • 50
  • ER32
  • 1.8
  • $142.00
  • $156.20
  • ADD TO CART
  • T226
  • Compare
  • Wishlist
  • T226
  • BT40 x ER40-80
  • 10,000
  • BT40
  • 3 - 26
  • 80
  • 63
  • ER40
  • 1.8
  • $153.00
  • $168.30
  • ADD TO CART
  • T228
  • Compare
  • Wishlist
  • T228
  • BT40 x ER40-100
  • 10,000
  • BT40
  • 3 - 26
  • 100
  • 63
  • ER40
  • 1.8
  • $165.00
  • $181.50
  • ADD TO CART
  • T448
  • Compare
  • Wishlist
  • T448
  • BT50 x ER32-100
  • 10,000
  • BT50
  • 3 - 20
  • 100
  • 50
  • ER32
  • 5.0
  • $241.00
  • $265.10
  • ADD TO CART
  • T450
  • Compare
  • Wishlist
  • T450
  • BT50 x ER40-100
  • 10,000
  • BT50
  • 3 - 26
  • 100
  • 63
  • ER40
  • 5.0
  • $241.00
  • $265.10
  • ADD TO CART
