THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Collet Chucks ER - BT30, BT40, BT50 (MAS403)
Balanced Collet Chuck ER - Balanced
  • 1 of 2
  • 2 of 2
    Shown with Optional Cutter
Order Code: T2205
BT40 x ER32S - Balanced Collet Chuck ER - Balanced
BT40 x ER32S
Rated - Revolutions Per Minute (rpm)
Taper (BT)
Capacity (mm)
2 - 20

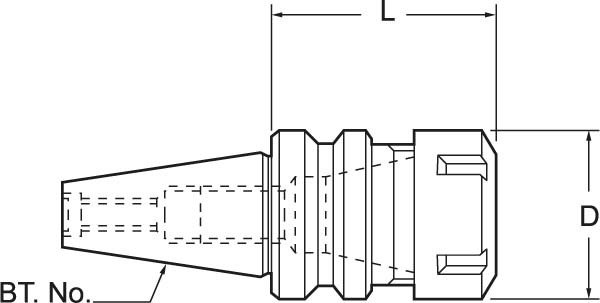

L (mm)
D (mm)
Collet Type (ER)
Nett Weight (kg)
Short extention collets chuck where rigidity is required. The cutter can be placed closer to the spindle bearings eliminating flexing.

This BT short collet chuck meets the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 - 85% taper contact) and have been balanced to 25,000 rpm G2.5

Spanner not included
  • Precision ground
  • Manufactured to MAS403BT40 standard
  • M16 Pull Stud thread
  • 36.4mm extension from the gauge line
  • Balanced to 25,000rpm G2.5
  • Each chuck comes with inspection report
  • Replacement nuts available (C119)
