THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Tube Benders - Manual & Electric
Tube Bender - Manual
  • 1 of 1
Order Code: T063B
12B-MRSQ - Tube Bender - Manual
16-25mm Square, 16-25mm Round Capacity
Tube Type
Round & Square
Round Tube Capacity (inch / mm)
16 - 25mm
Square Tube Capacity (inch / mm)
16 - 25mm RHS

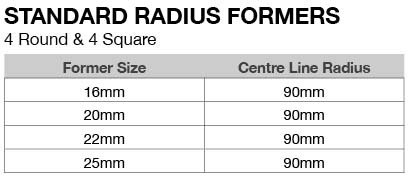

Formers Included
16, 20, 22, 25mm Round
16, 20, 22, 25mm Square
Nett Weight (kg)
The 12B is the simplest & least expensive tube bender in the Swade-Sir range & uses the compression method of bending. It's design allows hand bending of medium to heavy wall steel & non-ferrous tube, & is bench mounted.

The machine is manufactured from high grad materials- semi steel body & former locking plate. All other components including formers are made from high quality steel.

Features include easy access for tube positioning & removal plus no clamping of tube or use of mandrel is required.

Suitable for setting up a number of banks for multiple bending operations. The machine can be fitted with slide blocks & special tooling for bending square, angle or section formed materials.

Made in Australia
  • Engineered from the highest quality materials
  • Simple setup and operation
  • Speed with accuracy
  • Hand operated - Bench mounted. Direction of bend right or left hand.
  • Capacity 25mm x 3mm (1" x 10swg) mild steel and non-ferrous materials, 25mm x 3mm (1" x 10swg) stainless steel, 20mm (3/4") nominal bore pipe
  • Maximum angle of Bend 180 degrees
  • Maximum Radius 90mm centre line radius
  • Minimum Radius 50mm centre line radius
  • Overall Dimensions 470mm long x 450mm wide x 230mm high
  • Weight approxiamately 34kg

Product Brochure
Spare Parts Ordering
To assist you in ordering your spare part quicker than ever before, we have listed our most common spare parts to suit our Hafco Machinery for purchase online. Just choose between the 2 options outlined below, to find exactly what you are looking for. If you need further assistance please contact us.
Option 1
Browse through the "Common Spare Parts" tab below . Once you have identified your part, you can add it to your cart by clicking on the "+ ADD TO CART" button. If you wish to add multiples of this part you can either click the "+ ADD TO CART" button as many times as you like or click on the "VIEW CART" button and change the order quantity, prior to completing your order.
Option 2
If your part is NOT listed in the "Common Spare Parts" tab below , click the "MORE INFO" button to complete the "Spare Parts Enquiry Form".
This will provide you with the option to email your spare part enquiry direct to our Spare Parts and Service Department, or if you wish, you can download a printable version of this enquiry form which will include a copy of the Parts List to suit this machine (if available). Further instructions for the return email address or fax number of this printable form is provided on the document for your convenience.
NOTE: Please remember to clearly identify your part on the included parts diagram if necessary so that we can respond as quickly as possible with a price and availability for the part(s) you require.
