METALMASTERPR-133A
Motorised Plate Curving Rolls
  • 1 of 16
    S802
  • 2 of 16
    Right View
  • 3 of 16
    Rear View
  • 4 of 16

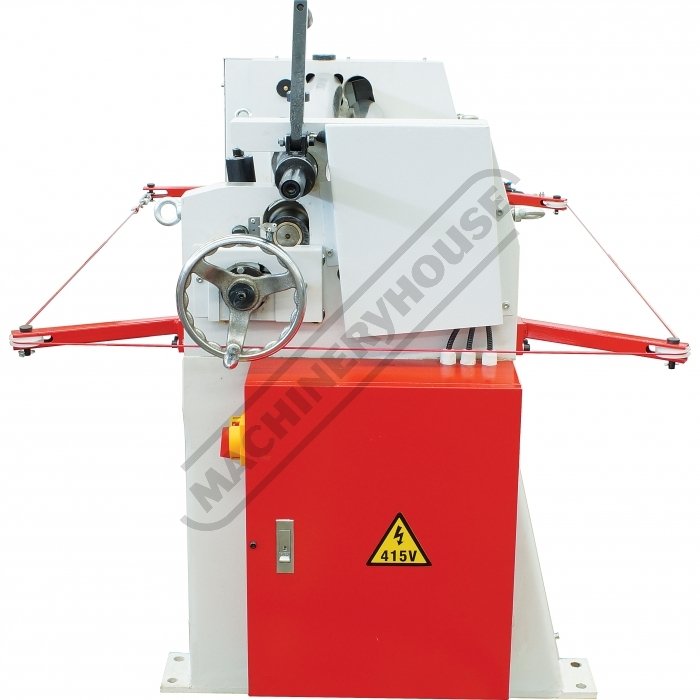

    Side View
  • 5 of 16
    Control Panel
  • 6 of 16
    Swing Out Top Roller
  • 7 of 16

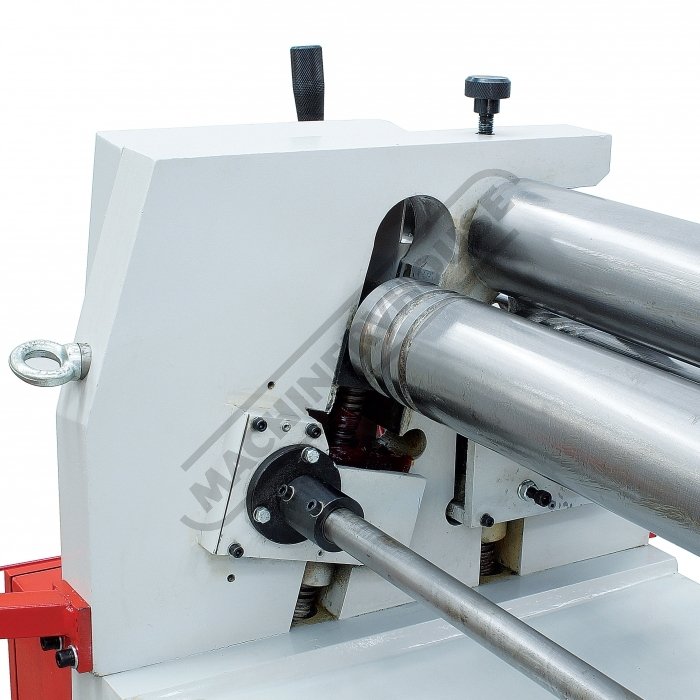

    Motorised Up and Down Rear Curving Roller Left Side
  • 8 of 16
    Motorised Up and Down Rear Curving Roller Right Side
  • 9 of 16
    Hand Wheel For Material Thickness Adjustment
  • 10 of 16
    Swing Out Top Roller Handle
  • 11 of 16
    Top Swing Out Roller Micro Switch
  • 12 of 16
    Conical Bending Guide Roller
  • 13 of 16
    Wire Groove Rolls
  • 14 of 16
    Safety Wire Interlock System
  • 15 of 16
    Foot Control
  • 16 of 16
    Isolation Switch
Order Code: S802
PR-133A - Motorised Plate Curving Rolls (415V)
1300 x 2.5mm Mild Steel Capacity
Motorised Up/Down Rear Roll, DRO Control Panel & Initial Pinch Design
METALMASTER
On Special - Ends 18th November 2017
ex GST
inc GST
$4,950.00
$5,445.00
$3,950.00
$4,345.00

ORDER CODE
S802
MODEL
PR-133A
Curving System Type
Initial Pinch
Curving Material Length (mm)
1300
Curving Plate Thickness - Mild Steel (mm)
2.5
Minimum Rolling Diameter (mm)
135
Roll Diameter (mm)
90
Motor Power (kW / hp)
1.1 / 1.5
Voltage / Amperage (V / amp)
415
Dimensions (LxWxH) (mm)
1800 x 640 x 1000
Nett Weight (kg)
645
Features
  • Initial pinch rolls with pre-bending
  • Motorised up & down rear curving roll enables quick & easy pre-bending
  • Mobile foot pedal control with digital readout display
  • Two rolls are powered by reduction gearbox drive system
  • Swing out top roller enables cone or cylinder to be removed
  • Safety wire interlock system with emergency shut-off
  • Precision rolls including wiring grooves
  • Includes a conical bending guide roller

  • Mild steel capacity is rated on hot rolled material with 250MPA
