THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Plate Curving Rolls - Motorised
SAHINLERRSTP 1270x86
Motorised Plate Curving Rolls
  • 1 of 7
    S788
  • 2 of 7
    Swing Out Top Roller
  • 3 of 7
    Quick Release Top Roller Handle
  • 4 of 7
    Safety Trip Wire
  • 5 of 7
    Control Switches
  • 6 of 7
    Mobile Foot Control
  • 7 of 7
    Shown with Optional Ball Transfer Tables
Order Code: S788
RSTP 1270x86 - Motorised Plate Curving Rolls (415V)
1270 x 2.5mm Mild Steel Capacity

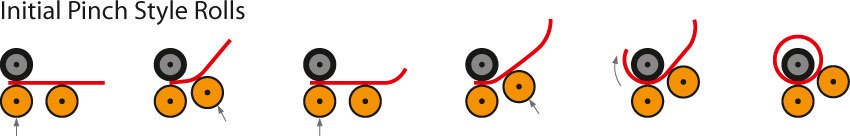

Initial Pinch Design
SAHINLER
ORDER CODE
S788
MODEL
RSTP 1270x86
Curving System Type
Initial Pinch
Curving Material Length (mm)
1270
Curving Plate Thickness - Mild Steel (mm)
2.5
Minimum Rolling Diameter (mm)
130
Roll Diameter (mm)
86
Motor Power (kW / hp)
1.5 / 2
Voltage / Amperage (V / amp)
415
Dimensions (LxWxH) (mm)
2200 x 700 x 1250
Nett Weight (kg)
490
Features
  • SAE 1050 (CK45) certificated forged steel rolls with high tensile strength
  • Precision ground rolls
  • Cast iron end frames
  • Brake motor standard for precision bending
  • Mobile control panel with emergency stop
  • Safety trip wire
  • Conical bending device
  • Single handle adjustment of bottom rolls
  • Made in Turkey

  • Mild steel capacity is rated on hot rolled material with 250MPA


Product Brochure
