THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Lockseamers
  • 1 of 1
Order Code: S720
OZ-20 - Lockseamer (240V)
0.4 - 0.9mm Mild Steel Capacity
Capacity - Mild Steel (mm)
0.4 - 0.9
Stations (No.)
Work Height Pittsburgh (mm)
Work Height - Power Flanger (mm)
Motor Power (kW / hp)
1.1 / 1.5
Voltage / Amperage (V / amp)
240 / 15
Machine Dimensions (L x W x H) (mm)
1040 x 420 x 1120
Nett Weight (kg)

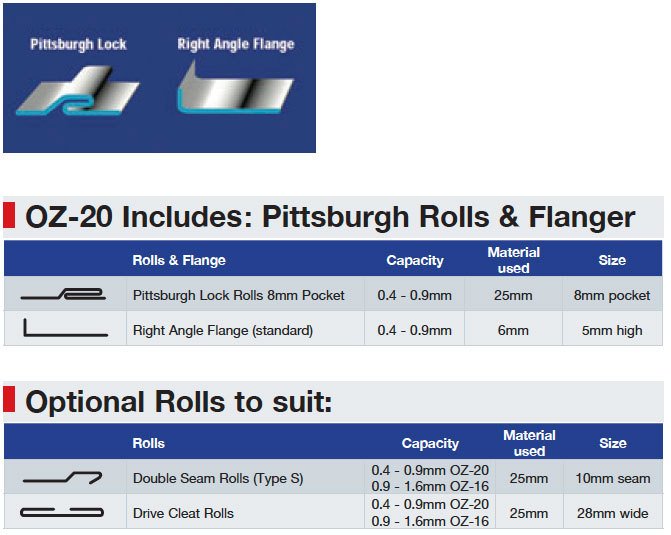

  • Pittsburgh rolls are supplied as standard
  • OzForm-20 is supplied with Power Flanger as standard
  • Extended shafts for optional rolls such as Double Seam and Right Angle Flange
  • Positive lubrication to all moving parts through grease nipples and oil holes
  • Reinforced steel plate stand provides rigidity which eliminates drumming
  • Hardened material guides
  • Forming speed 5m/min maximum
  • Made in Australia
  • Mild steel capacity is rated on hot rolled material with 250MPA
