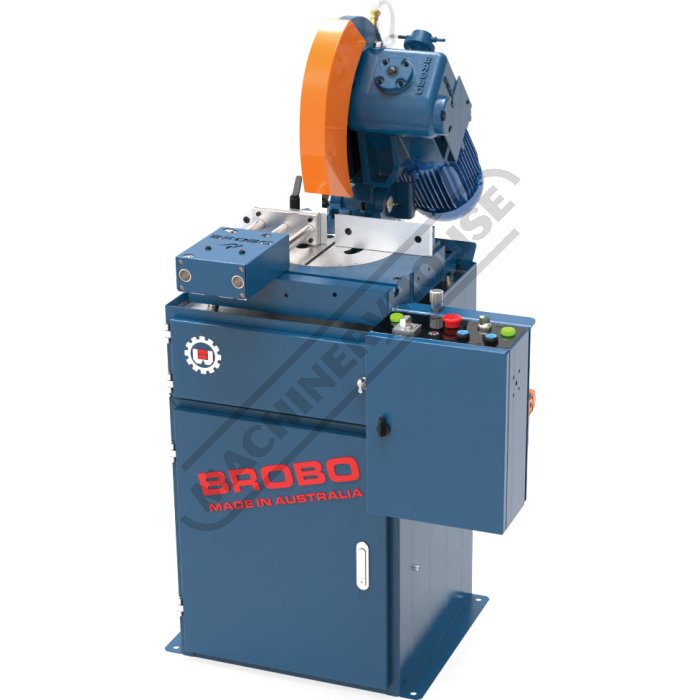

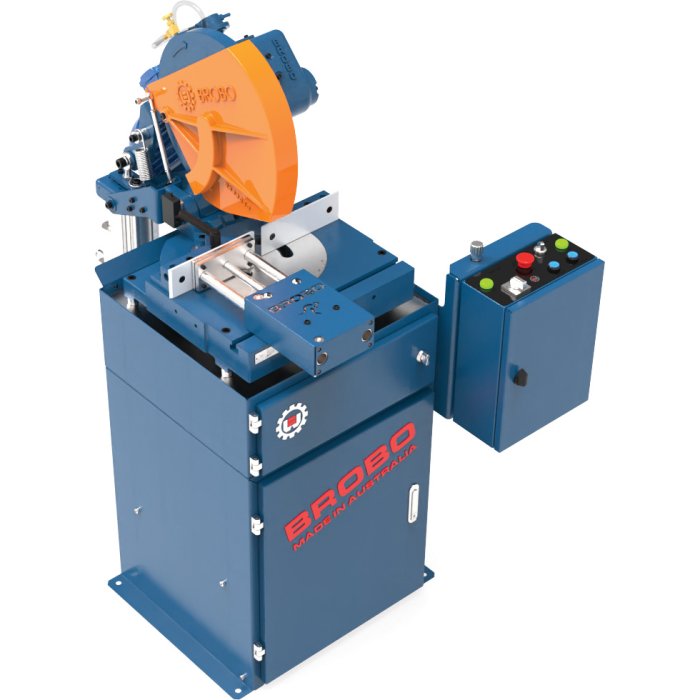

S120 - SA350 Semi-Automatic Ferrous Cutting Cold Saw

SA350 & SA400 semi-automatic ferrous metal cutting saws feature a smart, computerised actuation motor that alleviates the repetitious cutting process without compromising cutting capabilities and features of the ferrous saw range.

Features

20 – 100 RPM Variable Speed
Mitering locking device stops at 45° left, straight 90°, and 45° right
Fully integrated coolant system provided on all machines
Spindle and drive unit immersed in oil solution and enclosed within gearbox housing for smooth performance and reduced machine wear.
Every unit is provided with a high speed steel blade for general purpose cutting of ferrous solid and tube profiles
Industrial lead-screw unit incorporated with a smart actuation motor which automates the cutting cycle for the operator
Smart auto-detect of the cut piece size resulting in shortest stroke possible & fast cut times
Auto feed speed adjustment through sections of varying thicknesses resulting in minimum blade wear
Saw overload detection with feed modulation and reverse for safer operation
Dual Brobo air-pneumatic vice clamps accommodate for a range of metal profiles ferrous solids and tube sections
Brobolube standard lubricator

Specifications

Compare Product Range

Specifications

ORDER CODE	S120
MODEL	SA350
Cutting Head Action	Semi-Automatic
Operation Type	Swivel - Dual Mitre
(mm)Round Capacity @ 90º / 45º	115 / 110
(mm)Square Capacity @ 90º / 45º	110 / 85
(mm)Rectangle Capacity @ 90º / 45º (WxH)	135 x 85 / 95 x 75
(mm)Blade Size - Diametre. x Bore (Ø)	350 x 40
Vice Clamping Fixture	Pneumatic Vices
Coolant System	Yes
(mm)Table Working Height (with Stand)	968
(rpm)Blade Speed	Variable 20~100
(kW / hp)Motor Power	2.2 / 3
(V / amp)Voltage / Amperage	415
(cm)Shipping Dimensions (L x W x H)	114 x 114 x 164
(kg)Nett Weight	280
