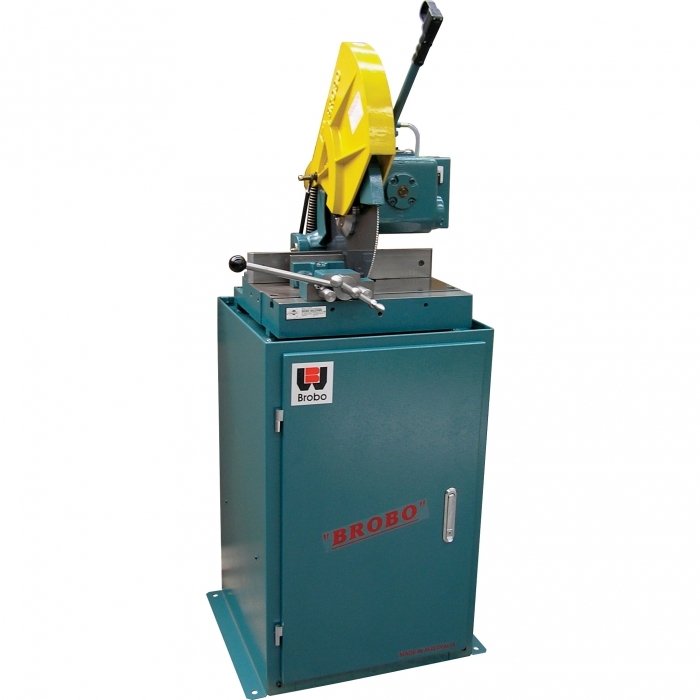

VS315D - Cold Saw, Includes Stand
100 x 80mm Rectangle Capacity
Ø315mm Blade, Variable Blade Speed 20~100rpm
S0401 of 1
Order Code: S040
ex-gst
inc-gst
$
7,200.00
$
7,920.00
240V / 15A
2 Years Warranty
2 Years Warranty
Made in Australia
Finance Available
Finance Available
Description
VS315D - Cold Saw, Includes Stand
100 x 80mm Rectangle Capacity
Ø315mm Blade, Variable Blade Speed 20~100rpm
Overview
Brobo - Cold Saw:Engineered for heavy duty applications, Brobo Waldown S315D, S350D & S400B ferrous metal cutting saws are specifically developed for precision cutting of steel profiles, solids and tubes. Its superior performance and reliability ensures for a burr-free, milled finish on every cut.
Features
- QUALITY AUSTRALIAN MADE MACHINES
- Industrial cold cutting saw with a electronically controlled variable blade speed system that is capable of a burr-free milled finish
- Variable blade speed system electronically controlled via a rotary dial
- Mitre locking device stops at 45° left, straight 90°, and 45° right, extremely accurate mitre cutting
- Fully integrated coolant system provided on all machines
- Heavy gearbox drive designed and built to last
- Spindle and drive unit immersed in oil solution and enclosed within gearbox housing for smooth performance and reduced machine wear
- Every unit is provided with a high speed steel blade for general purpose cutting of ferrous solid and tube profiles
- Saws supplied with facilities for bench mounting onto work bench, or complete with an integrated stand
- Includes a blade and stand
- 2 year warranty
- Optional Accessories - Air Vices, Length stops & Conveyor system
Includes
- Coolant pump system
- Blade
- Stand
Compare Product Range
Specifications
| ORDER CODE | S040 |
|---|---|
| MODEL | VS315D |
| Cutting Head Action | Manual |
| Operation Type | Swivel - Dual Mitre |
| (mm)Round Capacity @ 90º / 45º | 95 / 95 |
| (mm)Square Capacity @ 90º / 45º | 85 / 80 |
| (mm)Rectangle Capacity @ 90º / 45º (WxH) | 100 x 80 / 80 x 80 |
| (mm)Blade Size - Diametre. x Bore (Ø) | 315 x 40 |
| Vice Clamping Fixture | Manual |
| Coolant System | Yes |
| (mm)Table Working Height (with Stand) | 968 |
| (rpm)Blade Speed | Variable 20~100 |
| (kW / hp)Motor Power | 2.2 / 3 |
| (V / amp)Voltage / Amperage | 240 / 15 |
| (cm)Shipping Dimensions (L x W x H) | 83 x 64 x 184 |
| (kg)Nett Weight | 210 |
- Compare:
- Wishlist:
- ORDER CODE
- MODEL
- Cutting Head Action
- Operation Type
- (mm)Round Capacity @ 90º / 45º
- (mm)Square Capacity @ 90º / 45º
- (mm)Rectangle Capacity @ 90º / 45º (WxH)
- (mm)Blade Size - Diametre. x Bore (Ø)
- Vice Clamping Fixture
- Coolant System
- (mm)Table Working Height (with Stand)
- (rpm)Blade Speed
- (kW / hp)Motor Power
- (V / amp)Voltage / Amperage
- (cm)Shipping Dimensions (L x W x H)
- (kg)Nett Weight
- (ex-gst)Pricing
- (inc-gst)
- On Sale - Limited Stock
-
Compare
-
Wishlist
- S816
- CS-275
- Manual
- Swivel - Dual Mitre
- 75 / 65
- 60 / 50
- 90 x 50 / 70 x 50
- 275 x 32
- Manual
- Yes
- 955
- 42
- 0.97 / 1.3
- 240 / 10
- 87.5 x 55 x 69.5
- 110
- $1,590.00
- $1,749.00
- ADD TO CART
-
Compare
-
Wishlist
- S822
- CS-275A
- Manual
- Swivel - Dual Mitre
- 75 / 65
- 65 / 55
- 90 x 50 / 60 x 50
- 275 x 32
- Manual
- Yes
- 970
- 45
- 1.12 / 1.5
- 240 / 10
- 94 x 56 x 72
- 135
- $2,090.00
- $2,299.00
- ADD TO CART
-
Compare
-
Wishlist
- S828
- CS-315D
- Manual
- Swivel - Dual Mitre
- 100 / 90
- 82 / 75
- 110 x 70 / 85 x 70
- 315 x 32
- Manual
- Yes
- 980
- 22 / 44
- 1.5 / 2
- 415
- 94 x 63.5 x 94
- 175
- $2,790.00
- $3,069.00
- ADD TO CART
-
Compare
-
Wishlist
- S827
- CS-315C
- Manual
- Swivel - Dual Mitre
- 100 / 90
- 82 / 75
- 110 x 70 / 85 x 70
- 315 x 32
- Manual
- Yes
- 980
- 44
- 1.8 / 2.5
- 240 / 15
- 94 x 63.5 x 94
- 175
- $2,790.00
- $3,069.00
- ADD TO CART
-
Compare
-
Wishlist
- S836
- MC-315F CE
- Manual
- Swivel - Dual Mitre
- 100 / 100
- 90 / 85
- 100 x 85 / 85 x 85
- 315 x 32
- Manual - Dual
- Yes
- 840
- 25 / 50
- 1.85 / 1.4
- 415
- 119 x 72 x 160
- 240
- $5,850.00
- $6,435.00
- ADD TO CART
-
Compare
-
Wishlist
- S830
- CS-350V
- Manual
- Swivel - Dual Mitre
- 120 / 100
- 105 / 85
- 160 x 90 / 85 x 70
- 350 x 32
- Manual
- Yes
- 1000
- Variable 24~120
- 2.2 / 3
- 415
- 119 x 72 x 160
- 280
- $4,890.00
- $5,379.00
- ADD TO CART
- Package Deal
-
Compare
-
Wishlist
- K070A
- CS-350V Package
- Manual
- Swivel - Dual Mitre
- 120 / 100
- 105 / 85
- 160 x 90 / 85 x 70
- 350 x 32
- Manual
- Yes
- 1000
- Variable 24~120
- 2.2 / 3
- 415
- 310 x 100 x 170
- 370
- $5,840.00
- $6,424.00
- ADD TO CART
-
Compare
-
Wishlist
- S829
- CS-350V
- Manual
- Swivel - Dual Mitre
- 120 / 100
- 105 / 85
- 160 x 90 / 85 x 70
- 350 x 32
- Manual
- Yes
- 1000
- Variable 24~120
- 2.2 / 3
- 240 / 20
- 119 x 72 x 160
- 280
- $4,890.00
- $5,379.00
- ADD TO CART
- Package Deal
-
Compare
-
Wishlist
- K070
- CS-350V Package
- Manual
- Swivel - Dual Mitre
- 120 / 100
- 105 / 85
- 160 x 90 / 85 x 70
- 350 x 32
- Manual
- Yes
- 1000
- Variable 24~120
- 2.2 / 3
- 240 / 20
- 310 x 100 x 170
- 370
- $5,840.00
- $6,424.00
- ADD TO CART
-
Compare
-
Wishlist
- S841
- MC-370F CE
- Manual
- Swivel - Dual Mitre
- 115 / 115
- 100 / 85
- 100 x 100 / 85 x 85
- 370 x 32
- Manual - Dual
- Yes
- 840
- 22 / 44
- 2.2 / 3
- 415
- 119 x 72 x 160
- 300
- $6,590.00
- $7,249.00
- ADD TO CART
-
Compare
-
Wishlist
- S123
- S315D
- Manual
- Swivel - Dual Mitre
- 95 / 95
- 85 / 80
- 100 x 80 / 80 x 80
- 315 x 40
- Manual
- Yes
- 968
- 42 / 85
- 2.2 / 3
- 415
- 87 x 71 x 103
- 220
- $6,350.00
- $6,985.00
- ADD TO CART
-
Compare
-
Wishlist
- S125
- S315D
- Manual
- Swivel - Dual Mitre
- 95 / 95
- 85 / 80
- 100 x 80 / 80 x 80
- 315 x 40
- Manual
- Yes
- 968
- 21 / 42
- 1.5 / 2
- 415
- 87 x 71 x 103
- 220
- $6,350.00
- $6,985.00
- ADD TO CART
-
Compare
-
Wishlist
- S124
- S315D
- Manual
- Swivel - Dual Mitre
- 95 / 95
- 85 / 80
- 100 x 80 / 80 x 80
- 315 x 40
- Manual
- Yes
- 968
- 42
- 1.7 / 2.25
- 240 / 15
- 87 x 71 x 103
- 220
- $6,350.00
- $6,985.00
- ADD TO CART
-
Compare
-
Wishlist
- S040
- VS315D
- Manual
- Swivel - Dual Mitre
- 95 / 95
- 85 / 80
- 100 x 80 / 80 x 80
- 315 x 40
- Manual
- Yes
- 968
- Variable 20~100
- 2.2 / 3
- 240 / 15
- 83 x 64 x 184
- 210
- $7,200.00
- $7,920.00
- ADD TO CART
-
Compare
-
Wishlist
- S127
- S350D
- Manual
- Swivel - Dual Mitre
- 115 / 110
- 100 / 90
- 135 x 90 / 95 x 90
- 350 x 40
- Manual
- Yes
- 968
- 21 / 42
- 1.5 / 2
- 415
- 87 x 71 x 103
- 220
- $6,720.00
- $7,392.00
- ADD TO CART
-
Compare
-
Wishlist
- S108
- S350D
- Manual
- Swivel - Dual Mitre
- 115 / 110
- 100 / 90
- 135 x 90 / 95 x 90
- 350 x 40
- Manual
- Yes
- 968
- 42 / 85
- 2.2 / 3
- 415
- 89 x 69 x 86
- 185
- $6,300.00
- $6,930.00
- ADD TO CART
-
Compare
-
Wishlist
- S108S
- S350D
- Manual
- Swivel - Dual Mitre
- 115 / 110
- 100 / 90
- 135 x 90 / 95 x 90
- 350 x 40
- Manual
- Yes
- 968
- 21 / 42
- 1.5 / 2
- 415
- 89 x 69 x 86
- 185
- $6,300.00
- $6,930.00
- ADD TO CART
-
Compare
-
Wishlist
- S108A
- S350D
- Manual
- Swivel - Dual Mitre
- 115 / 110
- 100 / 90
- 135 x 90 / 95 x 90
- 350 x 40
- Manual
- Yes
- 968
- 42
- 1.7 / 2.25
- 240 / 15
- 89 x 69 x 86
- 185
- $6,300.00
- $6,930.00
- ADD TO CART
-
Compare
-
Wishlist
- S126A
- S350D
- Manual
- Swivel - Dual Mitre
- 115 / 110
- 100 /90
- 135 x 90 / 95 x 90
- 350 x 40
- Manual
- Yes
- 968
- 42
- 1.7 / 2.25
- 240 / 15
- 87 x 71 x 103
- 220
- $6,720.00
- $7,392.00
- ADD TO CART
-
Compare
-
Wishlist
- S126
- S350D
- Manual
- Swivel - Dual Mitre
- 115 / 110
- 100 / 90
- 135 x 90 / 95 x 90
- 350 x 40
- Manual
- Yes
- 968
- 42 / 85
- 2.2 / 3
- 415
- 87 x 71 x 103
- 220
- $6,720.00
- $7,392.00
- ADD TO CART
-
Compare
-
Wishlist
- S042
- VS350D
- Manual
- Swivel - Dual Mitre
- 115 / 110
- 100 / 90
- 135 x 90 / 95 x 90
- 350 x 40
- Manual
- Yes
- 968
- Variable 20~100
- 2.2 / 3
- 240 / 15
- 83 x 64 x 184
- 220
- $7,600.00
- $8,360.00
- ADD TO CART
-
Compare
-
Wishlist
- S129
- S400B
- Manual
- Swivel - Dual Mitre
- 130 / 120
- 110 / 95
- 135 x 110 / 95 x 110
- 400 x 40
- Manual
- Yes
- 968
- 21 / 42
- 1.5 / 2
- 415
- 87 x 71 x 103
- 220
- $7,200.00
- $7,920.00
- ADD TO CART
-
Compare
-
Wishlist
- S110S
- S400B
- Manual
- Swivel - Dual Mitre
- 130 / 120
- 110 / 95
- 135 x 110 / 95 x 110
- 400 x 40
- Manual
- Yes
- 968
- 21 / 42
- 1.5 / 2
- 415
- 89 x 69 x 86
- 200
- $6,800.00
- $7,480.00
- ADD TO CART
-
Compare
-
Wishlist
- S110A
- S400B
- Manual
- Swivel - Dual Mitre
- 130 / 120
- 110 / 95
- 135 x 110 / 95 x 110
- 400 x 40
- Manual
- Yes
- 968
- 42
- 1.7 / 2.25
- 240 / 15
- 89 x 69 x 86
- 200
- $6,800.00
- $7,480.00
- ADD TO CART
-
Compare
-
Wishlist
- S128
- S400B
- Manual
- Swivel - Dual Mitre
- 130 / 120
- 110 / 95
- 135 x 110 / 95 x 110
- 400 x 40
- Manual
- Yes
- 968
- 42
- 1.7 / 2.25
- 240 / 15
- 87 x 71 x 103
- 220
- $7,200.00
- $7,920.00
- ADD TO CART
-
Compare
-
Wishlist
- S044
- VS400D
- Manual
- Swivel - Dual Mitre
- 130 / 120
- 110 / 95
- 135 x 100 / 95 x 100
- 400 x 40
- Manual
- Yes
- 968
- Variable 20~100
- 2.2 / 3
- 240 / 15
- 83 x 64 x 184
- 220
- $8,200.00
- $9,020.00
- ADD TO CART
-
Compare
-
Wishlist
- S120
- SA350
- Semi-Automatic
- Swivel - Dual Mitre
- 115 / 110
- 110 / 85
- 135 x 85 / 95 x 75
- 350 x 40
- Pneumatic Vices
- Yes
- 968
- Variable 20~100
- 2.2 / 3
- 415
- 114 x 114 x 164
- 280
- $14,800.00
- $16,280.00
- ADD TO CART
-
Compare
-
Wishlist
- S1201
- SA400
- Semi-Automatic
- Swivel - Dual Mitre
- 130 / 120
- 110 / 95
- 135 x 100 / 95 x 100
- 400 x 40
- Pneumatic Vices
- Yes
- 968
- Variable 20~100
- 2.2 / 3
- 415
- 114 x 114 x 164
- 280
- $15,300.00
- $16,830.00
- ADD TO CART
