SUNRISE
SKU: P723
ex-gst
inc-gst
$ 45.00
$ 49.50
Made in Taiwan
Description

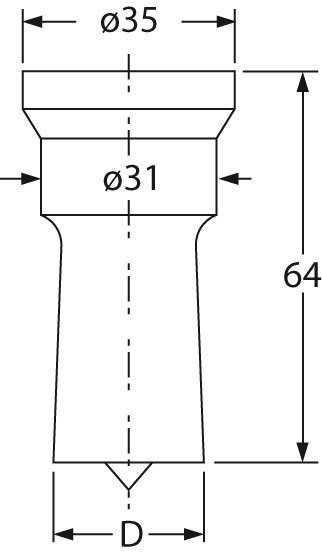

RPN1 - Round Punch

Ø23mm
Overview
Punch and Dies are Manufactured by Sunrise in Taiwan using Hi -Grade Tool Steel imported from Japan.
The manufacturing process involves machining via hi tech CNC machines lathes & mills, vacuum heat treatment with multiple tempering at high temperatures before a final quality inspection/testing process all of which ensures an accurate, precise, durable & stable product.
Features
  • PLEASE NOTE FOLLOWING RECOMMENDATIONS WHEN SELECTING DIE CLEARANCE:

  • Material Thickness - 2 ~ 4mm = Die Clearance 0.2mm

  • Material Thickness - 4 ~ 9mm = Die Clearance 0.7mm

  • Material Thickness - 9 ~ 14mm = Die Clearance 1.2mm

  • Material Thickness - 14 ~ 19mm = Die Clearance 1.7mm

  • Material Thickness - 19 ~ 24mm = Die Clearance 2.2mm


Optional Accessories
  • Other sizes and shapes available on request
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • MODEL
  • Type
  • (mm)Punch Diameter (D)
  • (mm)Die Diameter (D)
  • (No.)Pack Quantity
  • (ex-gst)Pricing
  • (inc-gst)
  • P165
  • Compare
  • Wishlist
  • P165
  • ~
  • Punch & Die Set
  • Ø6 - 26
  • Ø6.7 -27.2
  • 10
  • $750.00
  • $825.00
  • ADD TO CART
  • P166
  • Compare
  • Wishlist
  • P166
  • ~
  • Punch & Die Set
  • Ø11 - 40
  • Ø11.7 - 41.2
  • 10
  • $900.00
  • $990.00
  • ADD TO CART
